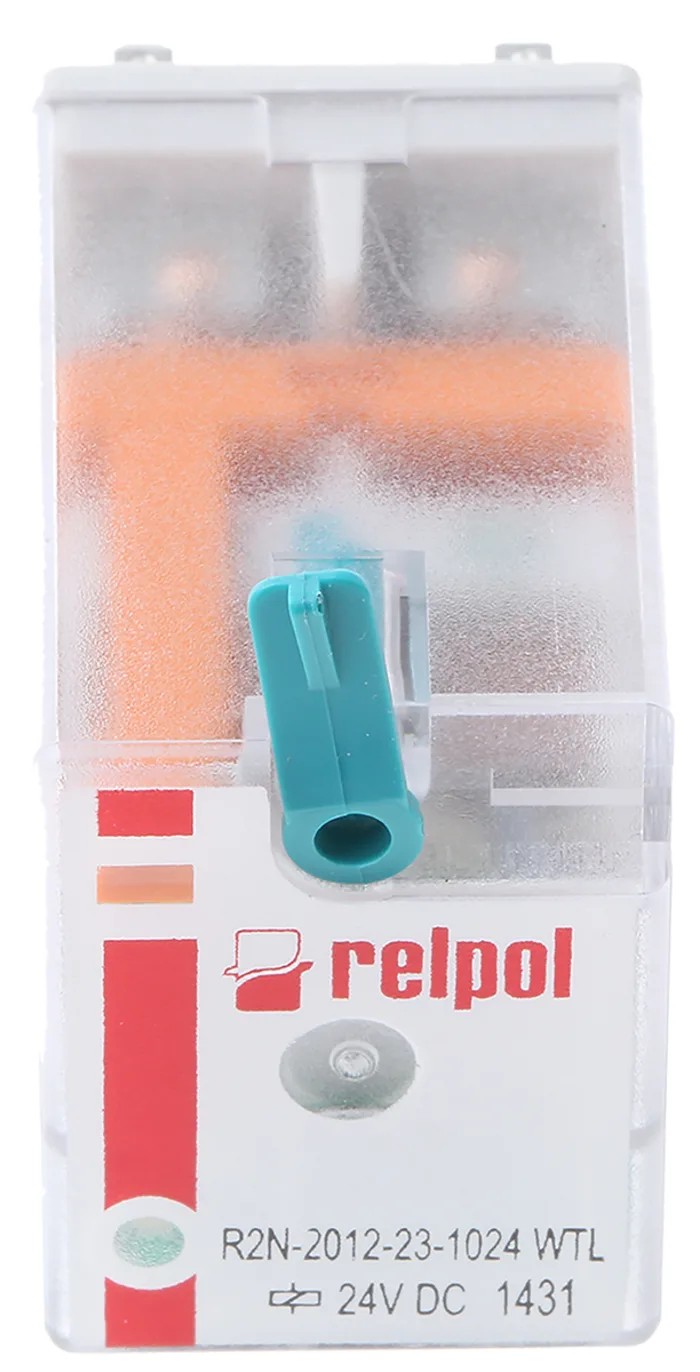

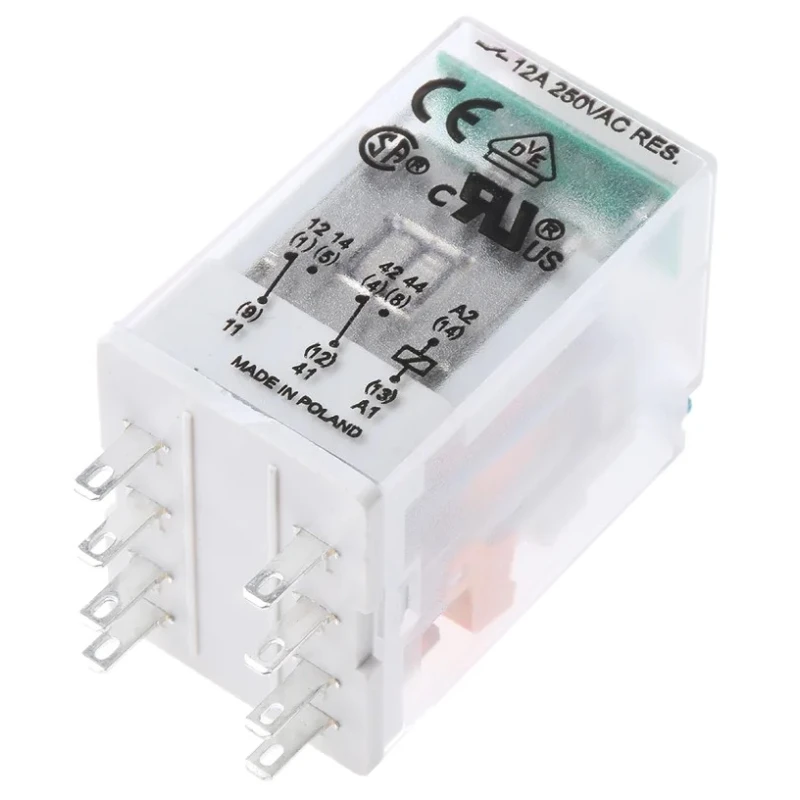

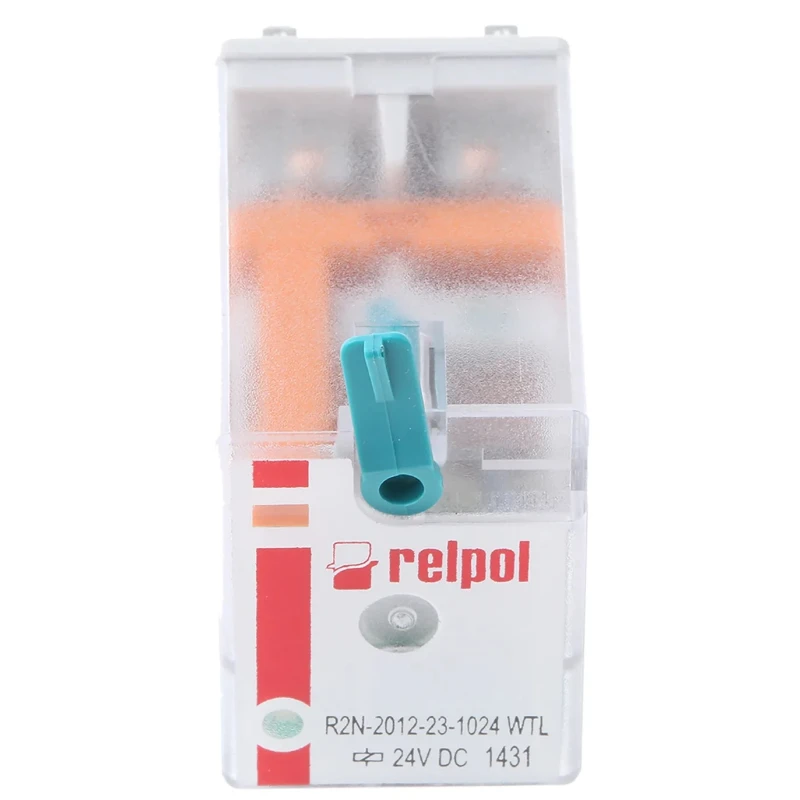

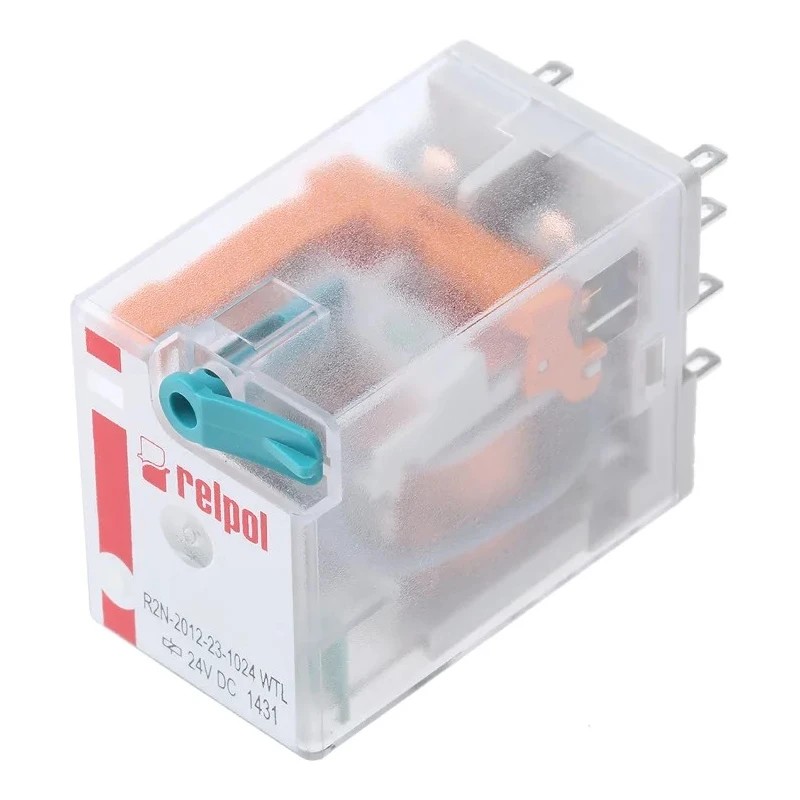

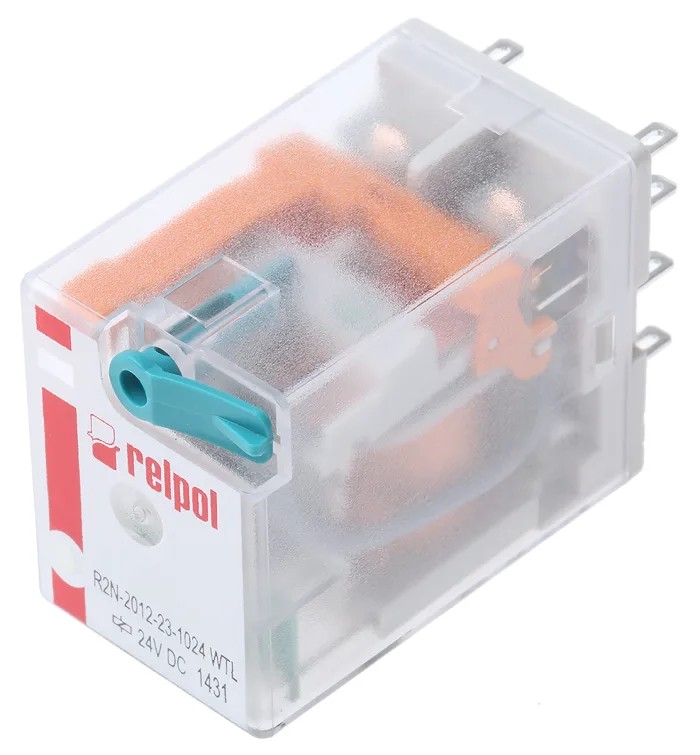

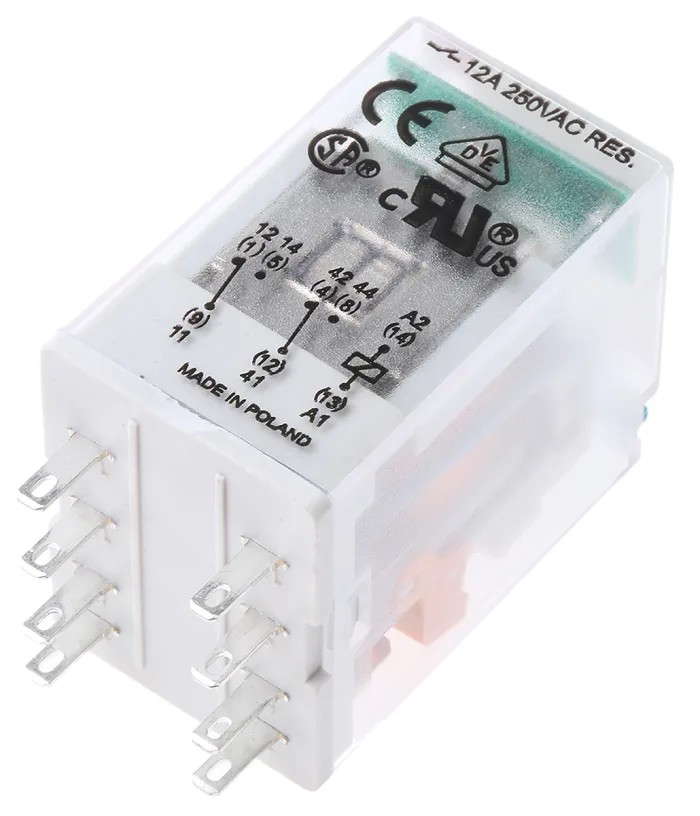

Relpol Surface Power Relay 24V Coil 12A Switching Current DPDT R2N-2012-23-1024-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 35.6mm |
| Length | 27.5mm |
| Model | R2N-2012-23-1024-WTL |
| Width | 21.2mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | R2N |
| Maximum Operating Temperature | +70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | UR, CSA, UL |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 900mW |
| Switching Power | 1.5W |
Key Features
- Designed for surface mounting with plug-in terminal type.
- Supports AC switching voltage up to 440V and DC switching voltage of 24V dc.
- Coil resistance is 640Ω and coil power consumption is 900mW.
- Operational temperature range from -40°C to +70°C ensures reliable performance.
- Compact industrial relay with dimensions 27.5mm length, 21.2mm width, and 35.6mm height.
- Silver alloy contact material provides durability and efficient conductivity.
- Conforms to UR, CSA, and UL standards for safety and quality.
Product Description
Relpol R2N-2012-23-1024-WTL surface power relay is a miniature industrial relay designed for general applications requiring reliable switching performance.
This power relay features a 24V coil voltage and supports a switching current of 12A with a DPDT (Double Pole Double Throw) contact configuration, providing versatile control in electrical circuits.
It is engineered for surface mounting and utilizes plug-in terminals, facilitating easy installation and maintenance. The relay operates efficiently within a wide temperature range from -40°C to +70°C, making it suitable for diverse industrial conditions.
Compact dimensions (27.5mm length, 21.2mm width, and 35.6mm height) allow integration in space-constrained assemblies.
The silver alloy contacts ensure long service life with minimal contact resistance and reliable switching performance. Coil resistance is measured at 640Ω, with coil power consumption of 900mW.
This model complies with approved standards including UR, CSA, and UL, guaranteeing industrial quality and safety. Applications include industrial automation, control panels, HVAC systems, manufacturing equipment, and other electrical system switching tasks.
Designed for surface mounting with plug-in terminal type. Supports AC switching voltage up to 440V and DC switching voltage of 24V dc. Coil resistance is 640Ω and coil power consumption is 900mW. Operational temperature range from -40°C to +70°C ensures reliable performance.
Compact industrial relay with dimensions 27.5mm length, 21.2mm width, and 35.6mm height. Silver alloy contact material provides durability and efficient conductivity. Conforms to UR, CSA, and UL standards for safety and quality.
Explore a wide range of Power Relays and related components at EnvMart for robust and reliable electrical system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V.
It supports a maximum switching current of 12A.
This relay has dimensions of 27.5mm in length, 21.2mm in width, and 35.6mm in height.
The operational temperature range is from -40°C to +70°C.
It features a DPDT (Double Pole Double Throw) contact configuration.
The coil resistance is measured at 640Ω.
The coil power consumption is 900mW.
It supports a maximum AC switching voltage of 440V.
The contacts are made from silver alloy, providing efficient conductivity.
This model is designed for surface mounting with plug-in terminals.
It conforms to UR, CSA, and UL standards for safety and quality.
This relay is suitable for applications in industrial automation, control panels, HVAC systems, and manufacturing equipment.
