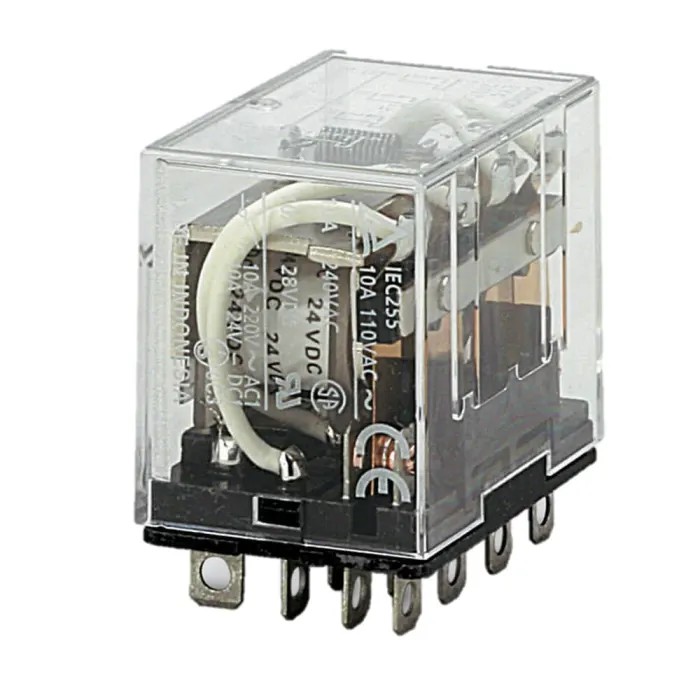

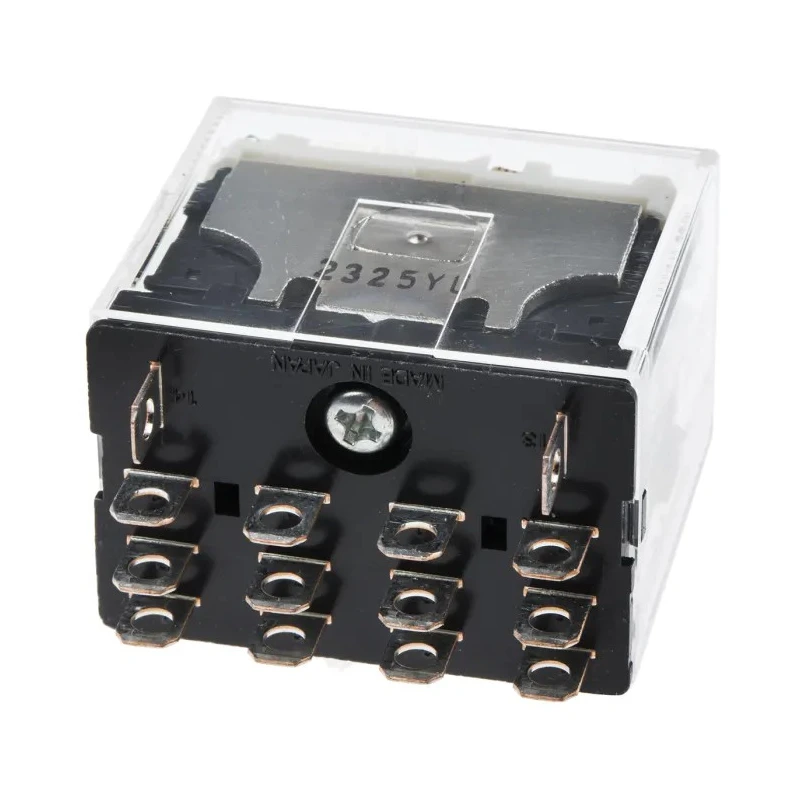

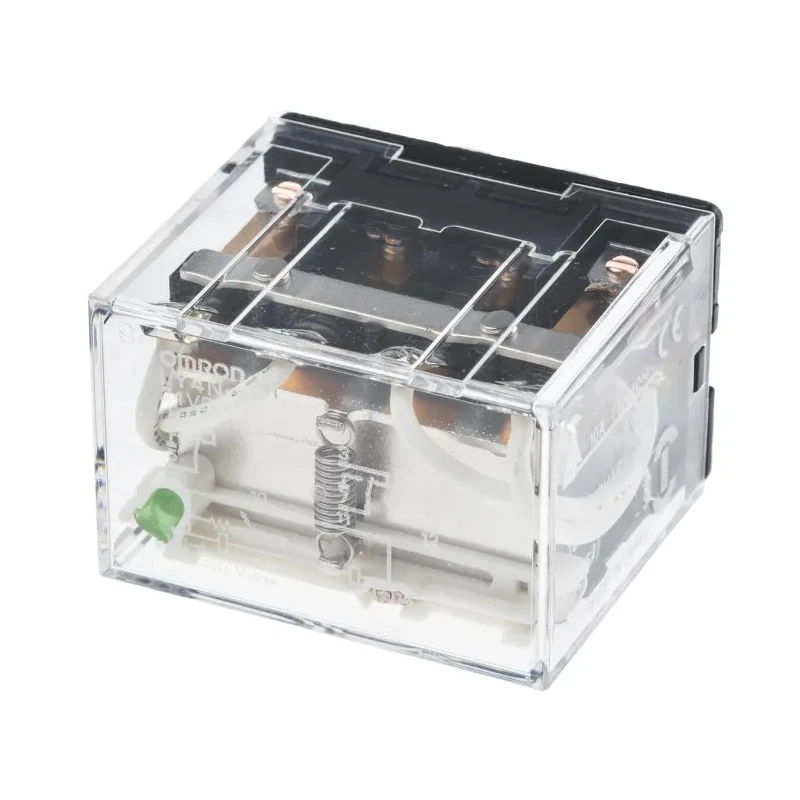

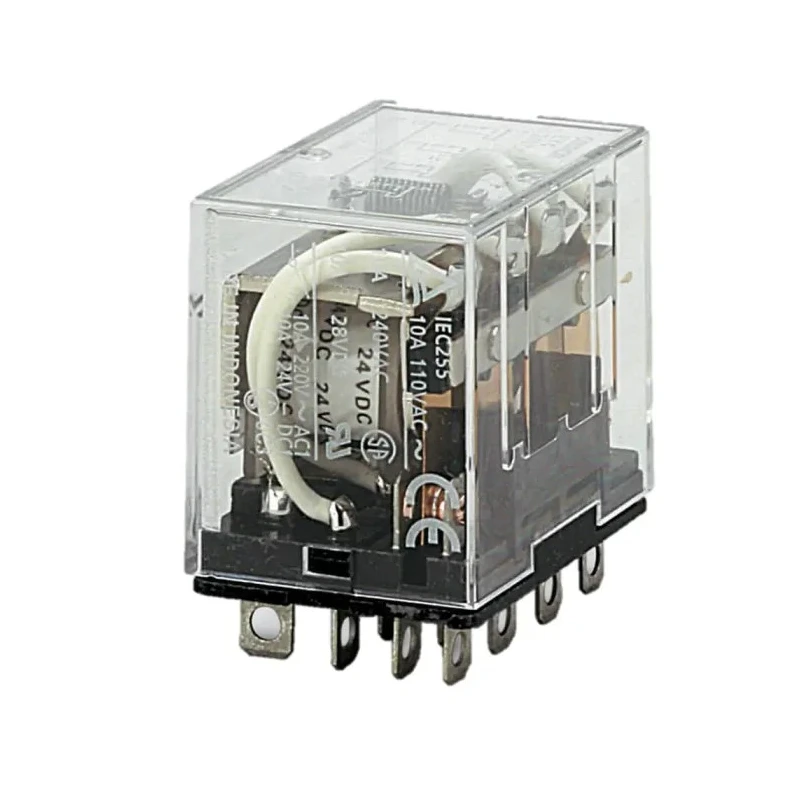

Omron Power Relay 24V DC Coil 10A Switching Current 4PDT LY4N-D2 24VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 41.5mm |
| Model | LY4N-D2 24VDC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY4N |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.5W |
| Switching Power | 2.5W |
Key Features
- Operates with a 24V DC coil voltage ensuring consistent activation.
- Features a 4PDT contact arrangement suitable for complex switching.
- Supports switching currents up to 10A for robust applications.
- Compact dimensions of 41.5mm length, 36mm width, and 28mm height.
- Silver alloy contacts provide enhanced conductivity and durability.
- Coil resistance rated at 350Ω with a coil power of 1.5W.
- Suitable for indoor use with operating temperature range from -25°C to 55°C.
- Switching capabilities up to 125V AC and 125V DC voltages.
Product Description
Omron LY4N-D2 24VDC power relay is engineered for precise and reliable power control applications requiring a 4PDT contact configuration. Operating at 24V DC coil voltage and capable of switching currents up to 10A, this relay is ideal for electrical, automation, and machinery control systems operating indoors.
The relay's compact size - 41.5mm length, 36mm width, and 28mm height - ensures easy integration into circuit boards using its PCB pin terminal type. Its silver alloy contact material delivers excellent conductivity and resistance to wear, supporting switching voltages of 125V AC and 125V DC.
Designed to operate within a temperature range of -25°C to 55°C, the LY4N-D2 is not intended for outdoor installations but excels in industrial automation, electrical load management, and signal switching in controlled environments. Coil resistance of 350Ω and coil power of 1.5W optimize performance and energy consumption.
This relay meets important safety and quality standards including CSA and UL certification, ensuring dependable operation across demanding commercial and industrial scenarios. The mechanical life rating of 100 million operations guarantees durability for long-term use in manufacturing, HVAC systems, and power control applications.
Operates with a 24V DC coil voltage for consistent relay activation. 4PDT contact configuration supports multiple simultaneous switching circuits. Capable of switching currents up to 10A at specified AC/DC voltages. Compact form factor allows PCB mounting with pin terminals.
Silver alloy contacts ensure durable electrical connections and low resistance. Wide operational temperature range suited for indoor applications. High mechanical life rating ensures long-term dependability. Certified by CSA and UL for compliance with safety standards.
Ideal for automation systems, relay control, and electrical load management. Explore EnvMart’s extensive range of Power Relays and contactors for versatile industrial and electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC, ensuring consistent activation.
It supports a maximum switching current of 10A, suitable for robust applications.
The relay has compact dimensions of 41.5mm in length, 36mm in width, and 28mm in height.
It features a 4PDT (four-pole double-throw) contact configuration, allowing for multiple simultaneous switching circuits.
The coil resistance is rated at 350Ω, optimizing performance and energy consumption.
It operates within a temperature range of -25°C to 55°C, making it suitable for indoor applications.
The contacts are made of silver alloy, which provides enhanced conductivity and durability.
It is capable of switching voltages up to 125V AC and 125V DC.
This relay is certified by CSA and UL, ensuring compliance with important safety and quality standards.
It features PCB pin terminals for easy integration into circuit boards.
The coil power is rated at 1.5W, which contributes to its efficient operation.
The mechanical life rating is 100 million operations, indicating durability for long-term use.
