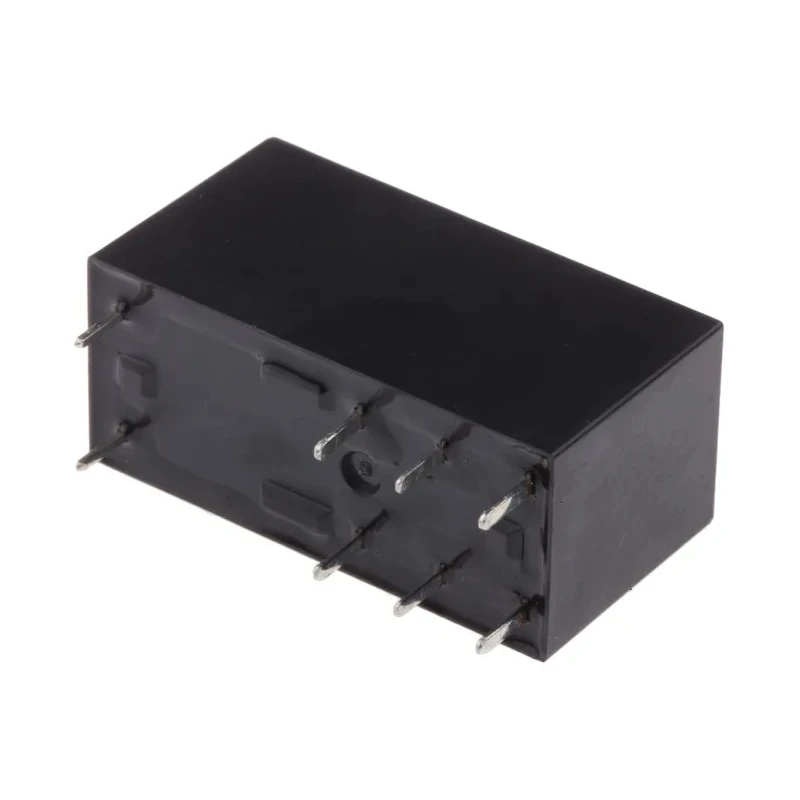

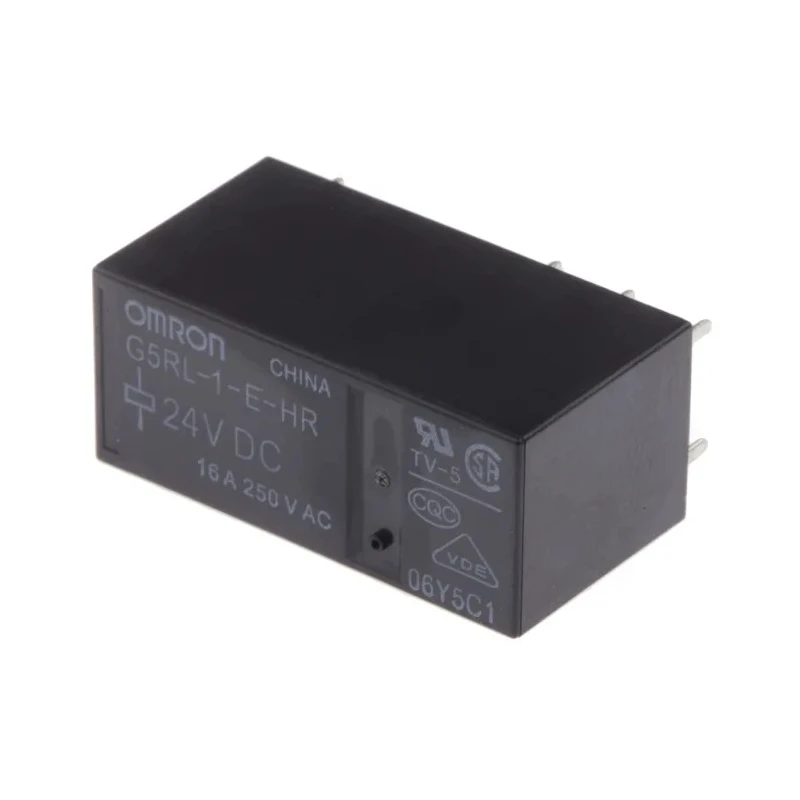

Omron Power Relay 24V dc Coil, 16A Switching Current, SPDT, PCB Mount G5RL-1-E-HR DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G5RL-1-E-HR DC24 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Coil Power | 400mW |
Key Features
- Operates at coil voltage of 24V dc ensuring stable switching performance.
- Supports switching currents up to 16 amperes suitable for various applications.
- Contact configuration is SPDT enabling single-pole double-throw switching.
- Designed for PCB mount with solder terminal type for reliable assembly.
- Compact dimensions with low profile height of 15.7mm facilitates space-saving installation.
- Operates within temperature range of -40°C to 85°C ensuring wide environmental applications.
- Contact material uses Silver Alloy for durability and reliable conductivity.
- Coil resistance value is 1.4k ohms with coil power consumption of 400 milliwatts.
Product Description
Omron G5RL-1-E-HR DC24 Power Relay is engineered with a 24V dc coil and rated for 16A switching current, configured as SPDT for versatile control in electrical circuits. It is designed for PCB mounting with solder terminals, allowing efficient and secure attachment to printed circuit boards.
The relay features a low profile with a height of 15.7mm and compact length of 29mm and width of 12.7mm, optimizing space usage in applications. With coil resistance of 1.4k ohms and a coil power of 400mW, it ensures low power operation while maintaining switching reliability.
Constructed using silver alloy contact materials, it provides excellent conductivity and durability. The device can operate across a wide temperature range from -40°C to 85°C, making it suitable for both industrial and commercial environments including automation systems, signal conditioning, manufacturing equipment, and control systems.
This power relay complies with RoHS standards indicating its environmental friendliness and safety. It is a reliable component for switching AC and DC loads up to 24V and 16A, enabling effective control in various electrical, HVAC, manufacturing, and laboratory equipment setups.
Operates at coil voltage of 24V dc ensuring stable switching performance. Supports switching currents up to 16 amperes suitable for various applications. Contact configuration is SPDT enabling single-pole double-throw switching.
Designed for PCB mount with solder terminal type for reliable assembly. Compact dimensions with low profile height of 15.7mm facilitates space-saving installation. Operates within temperature range of -40°C to 85°C ensuring wide environmental applications.
Contact material uses Silver Alloy for durability and reliable conductivity. Coil resistance value is 1.4k ohms with coil power consumption of 400 milliwatts. Complies with RoHS standards ensuring environmental compliance.
Ideal for automation, electrical, industrial control, and signal conditioning systems. Browse EnvMart's extensive range of Power Relays by Omron for quality and reliable circuit control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V dc, ensuring stable switching performance.
It supports a maximum switching current of 16 amperes, suitable for various applications.
The contact configuration is SPDT, enabling single-pole double-throw switching.

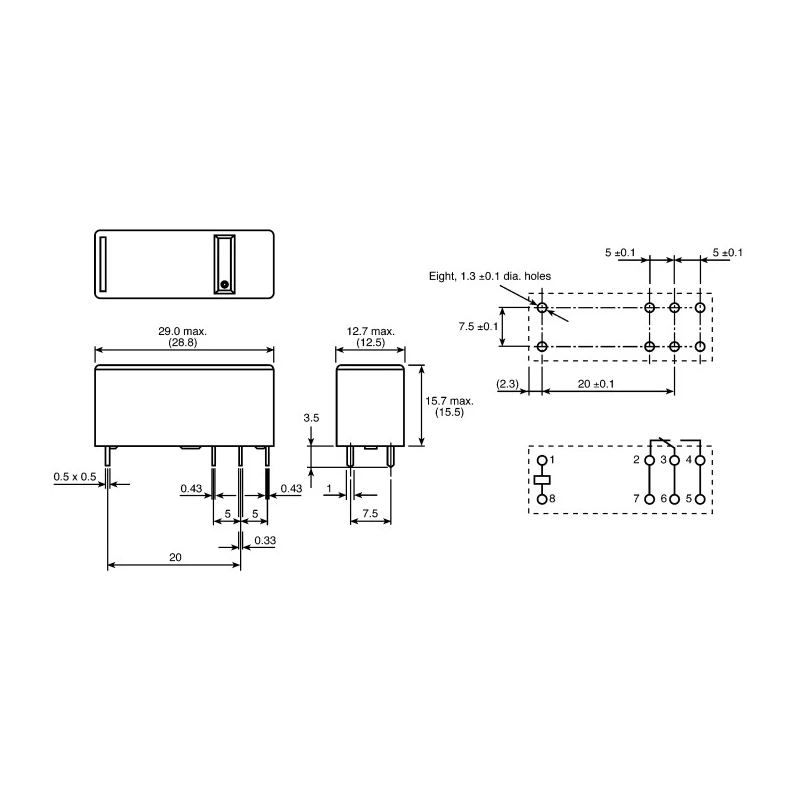

This model has a height of 15.7mm, a length of 29mm, and a width of 12.7mm, making it compact for space-saving installation.
It is designed for PCB mounting with solder terminals, allowing for reliable assembly.
The contact material uses silver alloy, which provides durability and reliable conductivity.
The coil resistance value is 1.4k ohms, which contributes to its low power operation.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environmental applications.
The coil power consumption is 400 milliwatts, ensuring efficient operation.
Yes, it complies with RoHS standards, indicating its environmental friendliness and safety.
It can switch both AC and DC loads up to 24V, making it versatile for various applications.
This model is suitable for automation systems, signal conditioning, manufacturing equipment, and control systems.
