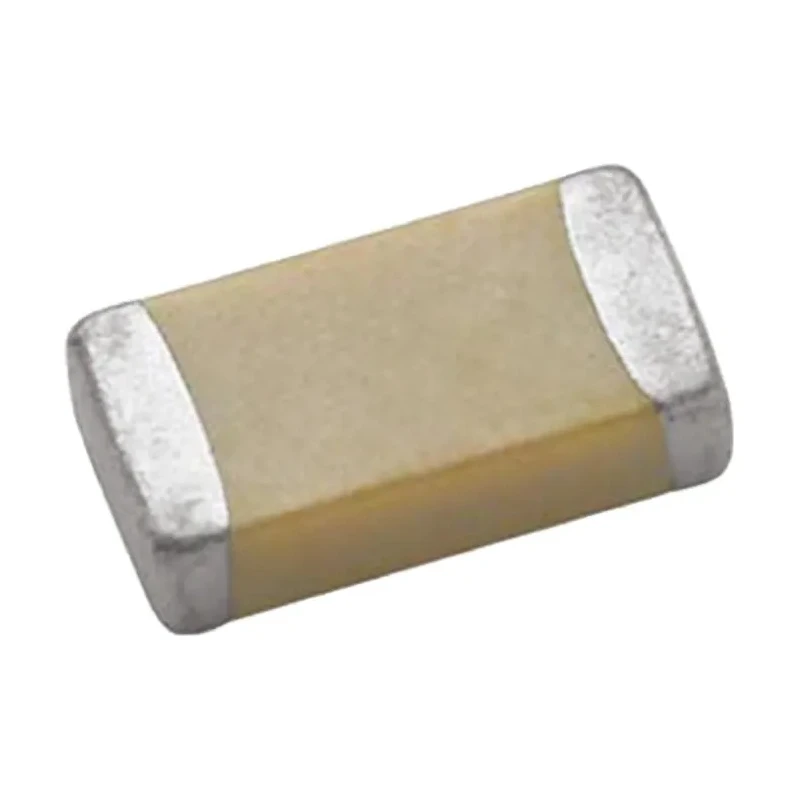

Vishay 12 pF Multilayer Ceramic Capacitor 200V dc ±5% Surface Mount 0402 VJ0402D120JXCAJ
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V dc |
| Brand | Vishay |
| Height | 0.61mm |
| Length | 1.02mm |
| Model | VJ0402D120JXCAJ |
| Packaging | 7 in Reel |
| Width | 0.51mm |
| Mount Type | Surface |
| Series | VJ HIFREQ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 12pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, JEDEC JS709A, IEC 61249-2-21 |
| Package/Case | 0402 |
| Dielectric | C0G |
Key Features
- Capacitance of 12 pF ensures precise filtering and tuning functions.
- Surface mount 0402 package enables compact PCB layout.
- C0G dielectric type offers ultra stable and low loss performance up to GHz range.
- Operating temperature range from -55°C to 125°C supports harsh environments.
- Termination type is surface mount for automated assembly compatibility.
- Complies with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards.
- Packaging in 7-inch reels ensures efficient handling and reel-to-reel assembly.
Product Description
Vishay VJ0402D120JXCAJ is a 12 pF Multilayer Ceramic Capacitor optimized for surface mounting in electronic circuits. This capacitor features a 200V dc voltage rating and a capacitance tolerance of ±5%, adhering to high-quality standards suitable for demanding electronic applications.

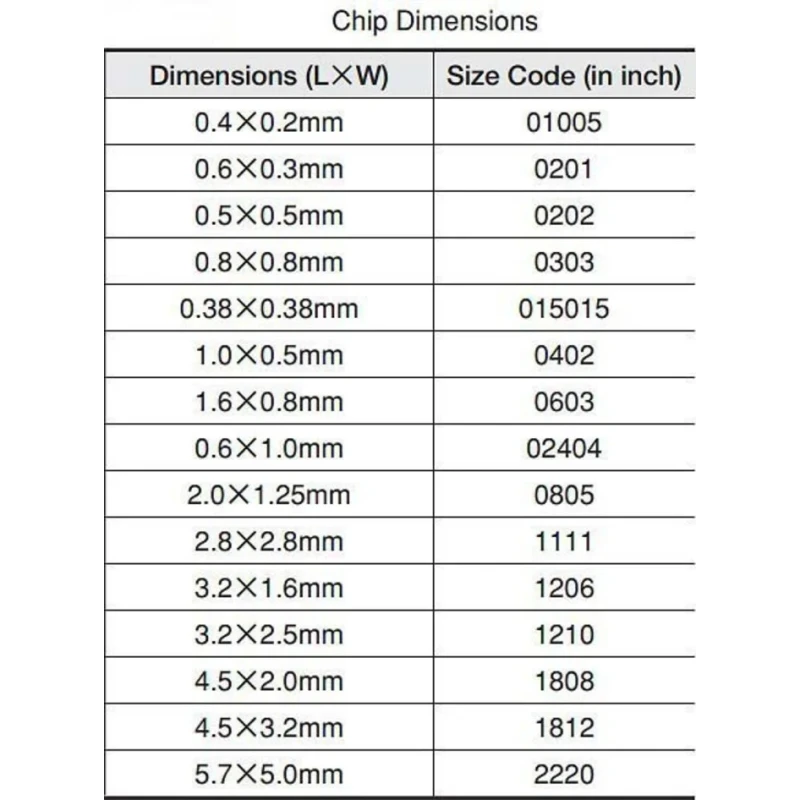

The capacitor uses the C0G dielectric material, recognized for its ultra-stable dielectric properties and extremely low losses, enabling use in high frequency systems up to the GHz range. Its compact 0402 surface mount package allows efficient PCB use with footprint dimensions of 1.02 mm length, 0.51 mm width, and 0.61 mm height.
Operating reliably between -55°C and 125°C, this component is applicable in harsh industrial, communications, medical instrumentation, and military devices. The capacitor is RoHS compliant and meets JEDEC JS709A and IEC standards ensuring environmental and performance quality.
Designed as part of the VJ HIFREQ series, it is ideally suited for broadband wireless and satellite communications, WiFi and WiMax systems, VoIP and cellular base stations, RF and microwave circuits, and precision test equipment.
This product is delivered in a 7-inch reel packaging format to support high-volume and automated manufacturing processes. Capacitance of 12 pF ensures precise filtering and tuning functions. Voltage rating of 200V dc suitable for high-frequency applications.
Surface mount 0402 package enables compact PCB layout. C0G dielectric type offers ultra stable and low loss performance up to GHz range. Operating temperature range from -55°C to 125°C supports harsh environments. Termination type is surface mount for automated assembly compatibility.
Complies with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards. Height 0.61 mm, length 1.02 mm, and width 0.51 mm for space-saving design. Packaging in 7-inch reels ensures efficient handling and reel-to-reel assembly. Series: VJ HIFREQ tailored for broadband wireless and satellite communications applications.
The Vishay VJ0402D120JXCAJ capacitor is an essential component for industrial and commercial advanced electronic applications. It combines reliability, electrical performance, and manufacturing convenience. Explore more Multilayer Ceramic Capacitors at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 12 pF, which ensures precise filtering and tuning functions in electronic circuits.
This capacitor has a voltage rating of 200V dc, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
The dimensions of the surface mount package are 1.02 mm in length, 0.51 mm in width, and 0.61 mm in height.
This model uses a C0G dielectric type, which offers ultra-stable and low-loss performance up to the GHz range.
It complies with RoHS, JEDEC JS709A, and IEC 61249-2-21 standards, ensuring environmental and performance quality.
The termination type is surface mount, which is compatible with automated assembly processes.
It is packaged in 7-inch reels, which facilitates efficient handling and reel-to-reel assembly.
This capacitor is part of the VJ HIFREQ series, tailored for broadband wireless and satellite communications applications.
The capacitance tolerance for this capacitor is ±5%.
The Vishay VJ0402D120JXCAJ capacitor is manufactured in India.
It is suitable for applications in broadband wireless and satellite communications, WiFi and WiMax systems, VoIP and cellular base stations, RF and microwave circuits, and precision test equipment.
