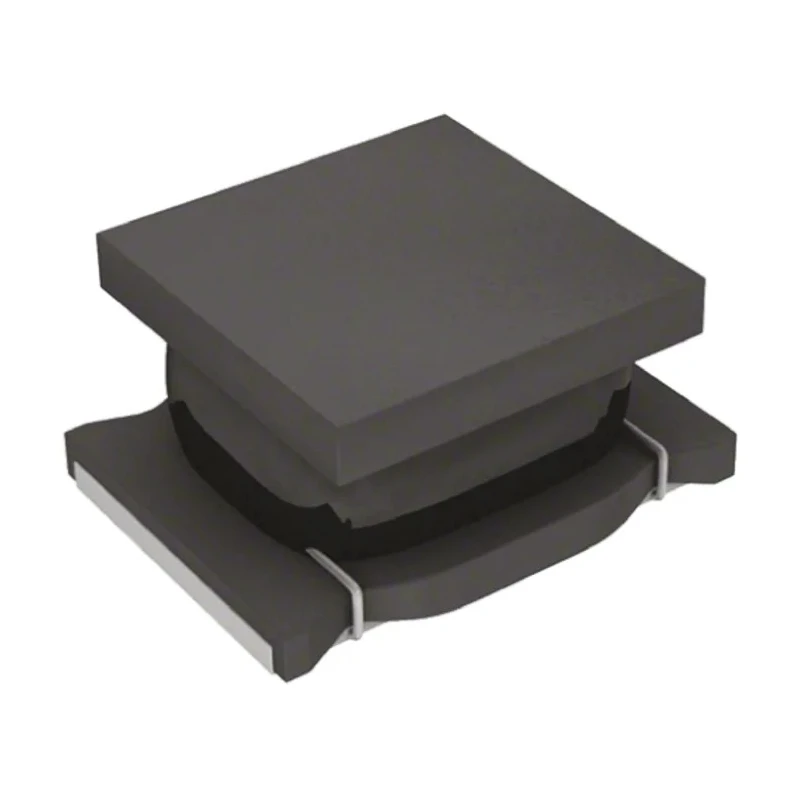

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 470nH ±30% 2.55A LQH32PNR47NN0L

Murata LQH32PNR47NN0L shielded wirewound surface mount inductor with ferrite core features a 470 nH inductance ±30% tolerance and supports a maximum DC current of 2.55 A. Fitted in a 1210 package case, this inductor measures 3.2 mm in length, 1.55 mm in height, and 2.5 mm in depth, making it suitable for compact PCB layouts.

This magnetically shielded wirewound inductor provides low DC resistance of 30 mΩ, enabling efficient energy use with minimal losses. Its moulded design and solder termination style ensure robust attachment during surface mounting processes.

The inductor operates reliably within a temperature range from -40°C to 85°C, making it adaptable for industrial, electronic, and power supply applications. Its maximum self-resonant frequency is 100 MHz, supporting stable signal integrity in high-frequency circuits.

Certified RoHS compliant, the product aligns with environmental and safety standards. Developed with a ferrite core material, it delivers high impedance characteristics essential for choke applications in DC power supply circuits.

Manufactured in Japan, the LQH32PNR47NN0L series is engineered for application in electronics components requiring high current capacity and magnetic shielding to minimize interference.

This inductor is designed for various industrial electronics and HVAC systems requiring compact and efficient power inductors. Its magnetic shielding makes it ideal for sensitive signal circuits where minimizing electromagnetic interference is critical.

The 1210 size is compatible with standard surface mount technology assembly lines enhancing manufacturing productivity. Use cases span telecommunications, power management, industrial control systems, and laboratory instrumentation.

Package contents include a bag of 10 units ready for insertion into machinery, facilitating improved production efficiency. Explore more products in the Surface Mount Inductor category to find additional inductors and related components from Murata and other leading manufacturers at EnvMart.
