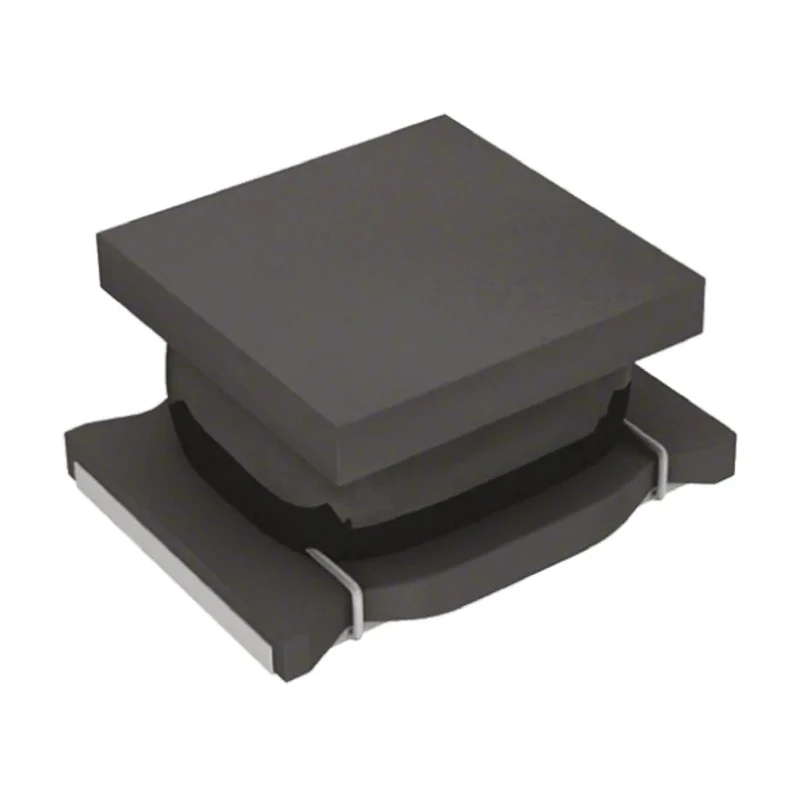

Murata 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 33 μH ±20% 390mA LQH32PN330MN0L

Murata LQH32PN330MN0L 1210 shielded wirewound surface mount inductor with a ferrite core delivers 33 μH inductance with a ±20% tolerance, supporting a maximum DC current of 390 mA. Designed for robust performance, this inductor features a magnetically shielded wirewound construction that reduces electromagnetic interference, ensuring stable behavior in sensitive DC power circuits.

The compact 1210 package size with dimensions of approximately 3.2mm length, 1.55mm height, and 2.5mm depth makes it ideal for surface mount technology (SMT) on modern circuit boards. Its solder termination style ensures reliable mechanical and electrical connections suited to automated PCB assembly. The component operates reliably over a broad temperature range from -40°C to 85°C, making it suitable for industrial, automotive, and consumer electronics applications.

Low DC resistance of only 1.15 Ω enhances energy efficiency by minimizing power loss. Additionally, with a maximum self-resonant frequency of 13 MHz, this inductor supports high-frequency filtering and choke applications effectively. The use of a ferrite core provides superior magnetic properties, improving performance and durability under various electrical loads. The molded and RoHS-compliant design aligns with contemporary environmental and quality standards.

Compact footprint reduces PCB space requirements. High current rating accommodates demanding power circuits. Shielded design suppresses EMI for clean signal integrity. Wide temperature rating ensures reliability in harsh environments.

Wirewound inductor construction provides stable inductance. Embossed tape packaging supports automated manufacturing. Solder termination style for robust PCB mounting. Compliant with RoHS environmental directives. Ideal for use in power supply chokes, filtering, and tuning circuits.

This Murata LQH32PN330MN0L surface mount inductor is a reliable choice for electronic manufacturing applications requiring miniature, high-performance inductors. For further product selections, browse Murata components and Surface Mount Inductors categories at EnvMart.
