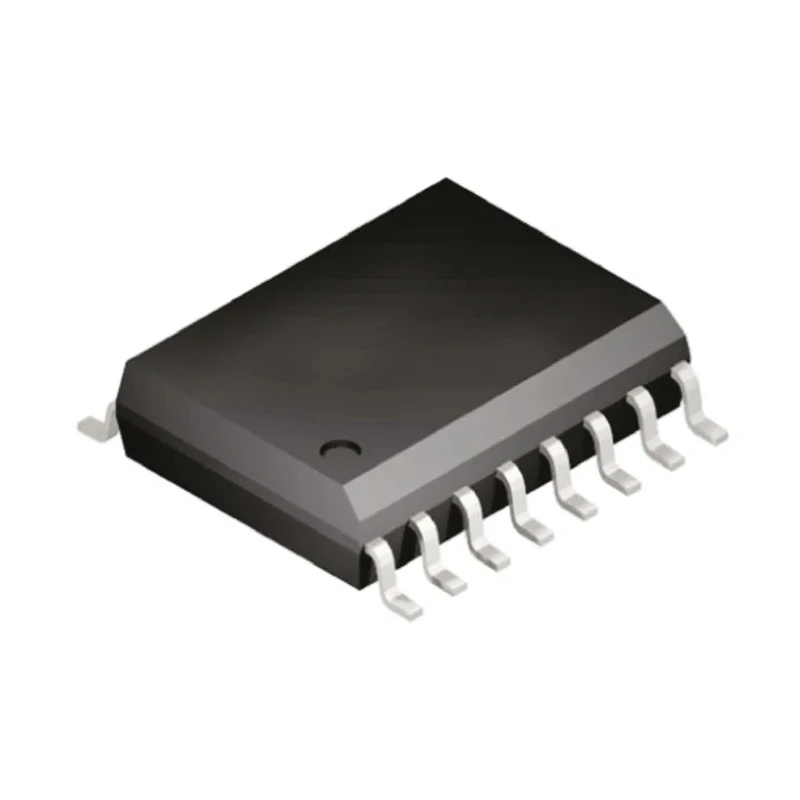

onsemi 16-Pin SOIC 5-Channel PWM Controller 300 kHz 40V Surface Mount TL594CDR2G

onsemi TL594CDR2G is a 16-pin SOIC packaged 5-channel PWM controller designed for high-frequency power management applications. It supports a maximum switching frequency of 300 kHz and a wide operating voltage range from 7 V to 40 V, making it suitable for DC-DC conversion and power regulation circuits.

This surface mount device offers reliable operation with a low start-up supply current of 8 mA and a standard supply current of 18 mA. It provides up to 5 output channels with an output current capacity of 500 mA and supports a maximum duty cycle of 50%, enabling precise pulse width modulation control.

Engineered to operate across industrial temperature ranges (-40°C to 85°C), the compact SOIC package dimensions (10 mm length, 4 mm width, 1.5 mm height) allow efficient PCB space usage. The device is part of onsemi’s TL series and is not automotive qualified.

This PWM controller is highly applicable in industrial automation, power management IC applications, and electronic circuit design requiring efficient DC-DC control. Its surface mount design and performance specifications support modern, compact electronics manufacturing.

This PWM controller operates with a maximum supply voltage of 40 V. It features 5 output channels with a maximum output current of 500 mA. The device supports a minimum supply voltage of 7 V and a maximum duty cycle of 50%.

Designed for surface mounting, it has a 16-pin SOIC package type for compact PCB design. It operates efficiently with a supply current of 18 mA and a startup current of 8 mA. Operating temperature ranges from -40°C to 85°C, suitable for various industrial environments.

Dimensions measure 10 mm in length, 4 mm in width, and 1.5 mm in height. Explore the onsemi PWM Controller category on EnvMart for more industrial-grade power management ICs optimized for automation and control applications.
