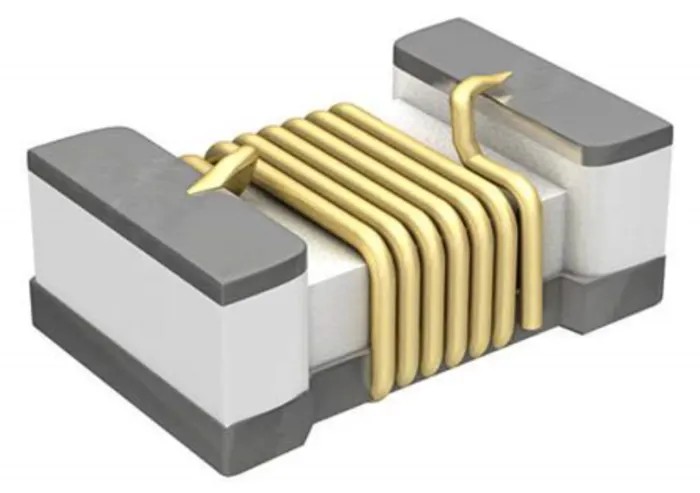

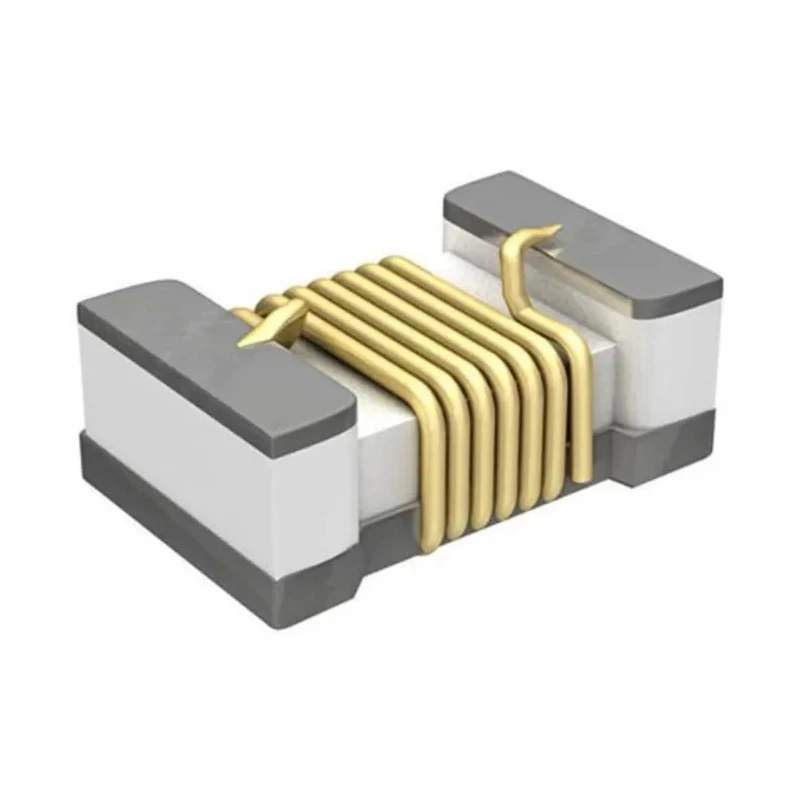

Murata Wirewound Surface Mount Inductor 2.9 nH ±0.1 nH 750 mA Idc Q:20 0402 Package LQW15AN2N9B00D

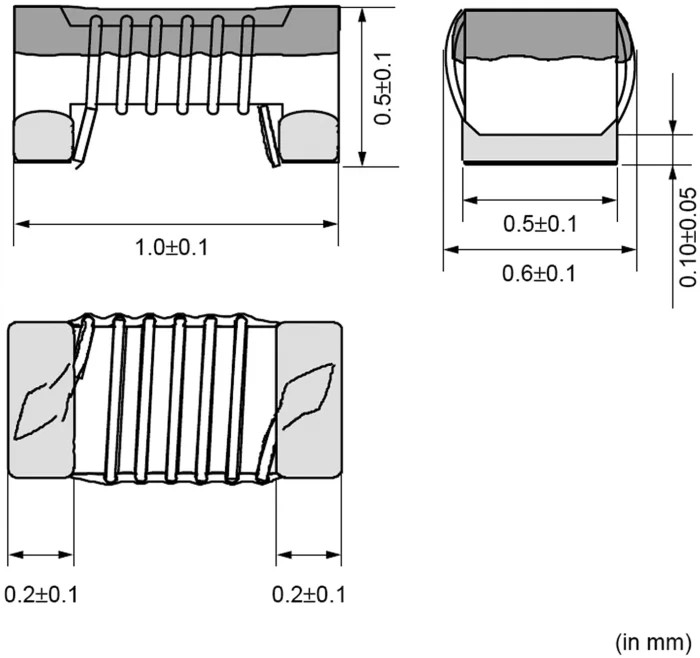

Murata LQW15AN2N9B00D wirewound surface mount inductor provides a precise inductance value of 2.9 nH with a low tolerance of ±0.1 nH. Packaged in a compact 0402 case measuring 1 mm in length, 0.5 mm in height, and 0.6 mm in depth, this inductor is designed to minimize board space while maximizing performance.

The ferrite core material enhances magnetic properties and stability. It offers a maximum DC current rating of 750 mA with a low maximum DC resistance of 70 mΩ, reducing power losses during operation. This product is moulded and RoHS compliant, featuring solder termination for reliable surface mounting.

With a high self-resonant frequency of up to 15 GHz and minimum quality factor of 20, it is suitable for high-frequency applications including wireless telecommunication equipment such as Bluetooth, GSM, and WLAN modules, where high resonance frequency and low tolerance are critical.

The operating temperature range from -55°C to 125°C ensures stable performance across diverse environments. The inductor is supplied on paper tape packaging, facilitating automated pick-and-place assembly lines and improving production efficiency.

Compact 0402 package size. Ferrite core construction for enhanced performance. High frequency operation up to 15 GHz. Low DC resistance and tight inductance tolerance. Wide operating temperature range from -55°C to 125°C.

Solder termination style for surface mounting. RoHS compliant materials. Packaging on paper tape for automated mounting.

This Murata wirewound surface mount inductor is ideal for industrial, telecommunications, and electronic manufacturing applications where precise inductance, high frequency response, and compact design are required. Explore the full Murata range and related Surface Mount Inductors at EnvMart.
