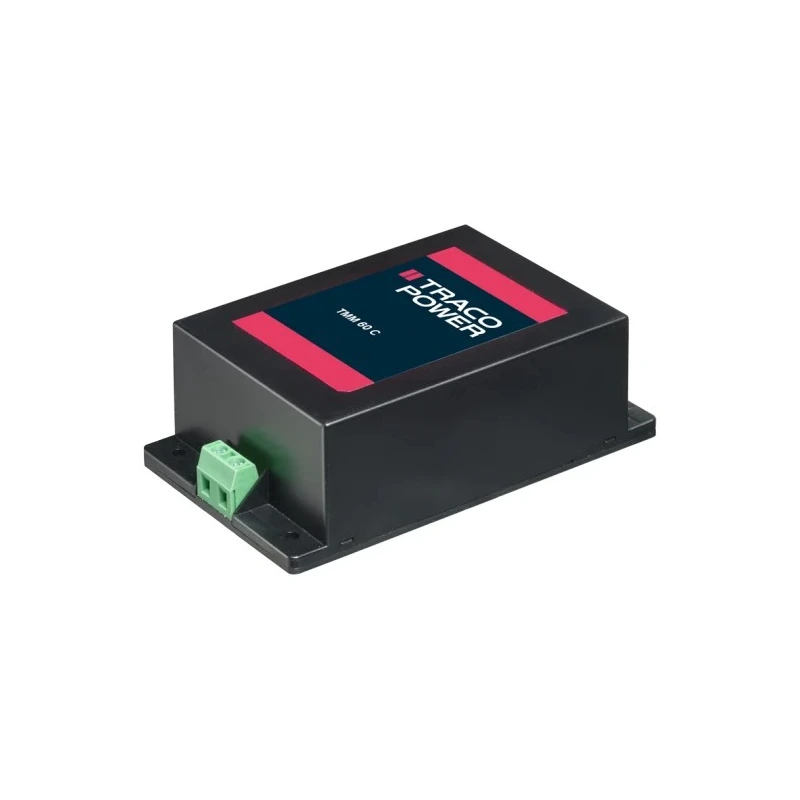

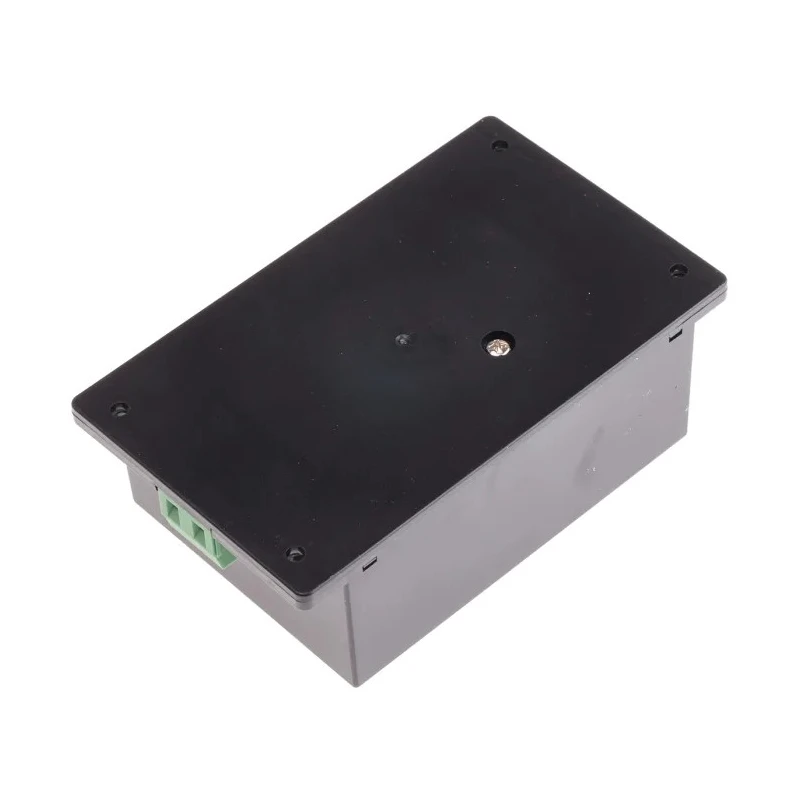

TRACOPOWER TMM 60105C Switching Power Supply 5.1V DC 51W Chassis Mount Medical Grade Taiwan TMM 60105C

TRACOPOWER TMM 60105C is a high-quality switching power supply designed for rigorous industrial, commercial, and medical applications. This medical-grade AC/DC converter delivers a regulated output voltage of 5.1V DC with a power rating of 51W and output current of 10A. Its chassis mount form factor and fully encapsulated plastic case provide protection and ease of integration into compact electronic systems.

Engineered for worldwide use, the power supply supports a universal input voltage range of 85V to 264V AC and can operate efficiently at frequencies between 47 Hz and 440 Hz. The extended operating temperature range from -40°C to +80°C ensures reliability even in challenging environments such as industrial automation, medical instrumentation, laboratory equipment, and embedded systems.

With medical safety certification to IEC/EN 60601-1 third edition featuring 2 x MOPP insulation, the TMM 60105C ensures compliance to stringent standards for patient and operator safety. Additional certifications include UL 60950-1, UL 508, IEC 60950-1, EN 60950-1, CSA-C22.2, and ANSI/AAMI ES 60601-1, certifying broad market acceptance across different regions.

The power supply boasts an efficiency rating of 84%, which reduces thermal dissipation and energy consumption. It also adheres to the European ErP directive with a low no-load power consumption of less than 0.3W. Safety features include integrated short circuit and overload protection, guaranteeing operational security and longevity.

Its compact dimensions of 112 mm length, 67.8 mm width, and 38 mm depth, paired with a lightweight of 360 grams, make the TMM 60105C a versatile choice for space-constrained applications.

This power supply is ideal for use in industrial machines, medical devices, embedded electronics, and laboratory instrumentation requiring stable and reliable 5.1V DC power. The product originates from Taiwan, Province Of China.

Medical safety certified to IEC/EN 60601-1 3rd edition with 2 x MOPP. Extended operating temperature range -40°C to +80°C. Universal input 85 - 264V AC, 47 - 440 Hz frequency support. High efficiency of 84% and compliance with ErP directive.

Fully encapsulated chassis mount plastic housing. Short circuit and overload protection integrated. Compact size: 112 mm x 67.8 mm x 38 mm. Lightweight at approximately 360 grams. Certified to multiple international safety standards.

Single 5.1V DC output at 10A current, rated 51W. Explore EnvMart's extensive range of electronic power supplies and switching power modules for industrial, medical, and commercial applications.
