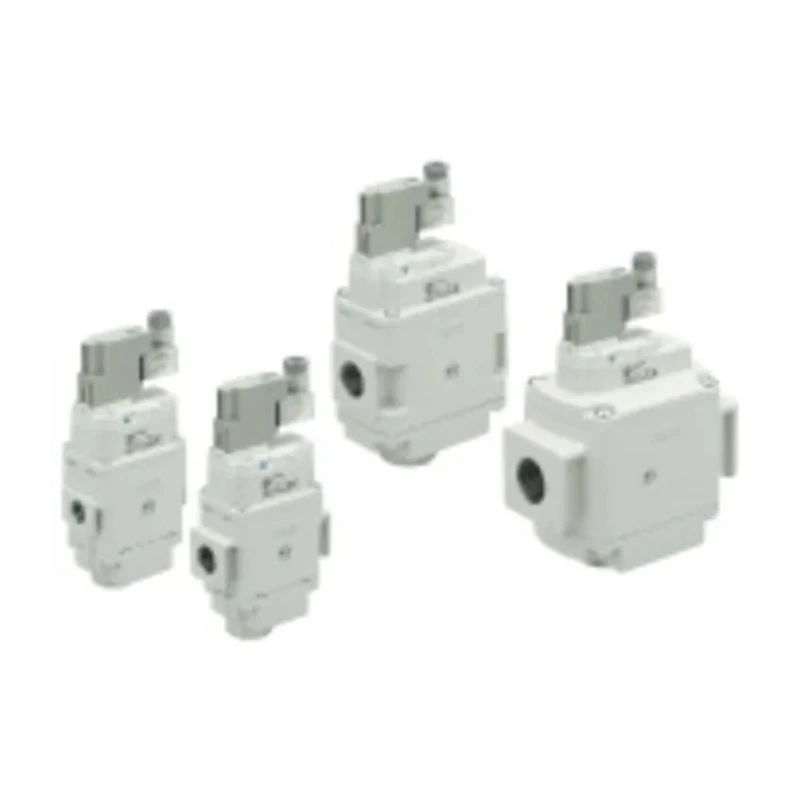

SMC Pneumatic Solenoid Start-Up Valve 24V dc, Threaded 1/2 in Port, 2 Ports, Die Cast Aluminium Body AV4000-F04-5YB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Start-Up Valve 24V dc, Threaded 1/2 in Port, 2 Ports, Die Cast Aluminium Body AV4000-F04-5YB-A



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Power Consumption	0.35 W
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	98mm
Length	170mm
Model	AV4000-F04-5YB-A
Width	52mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/2 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Energy Saving	No air flow when the main valve is switched
Actuation Type	Start-Up Valve
Maximum Flow Rate	1152L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.45W
Improved flow rate characteristics	Up to 2.3 times C[dm3/(s·bar)]: 9.2

Key Features

Operates at 24 volts DC with low power consumption of 0.35 W.
Constructed with a durable die cast aluminium body for industrial applications.
Features threaded 1/2 inch female ports with standard G connection threads.
Supports a maximum operating pressure of 1 MPa and pilot pressure range of 0.2 to 1 MPa.
Compact dimensions of 170mm length, 52mm width, and 98mm height.
Allows quick exhaust to rapidly cut off air supply and prevent energy loss.
Integrated silencer reduces noise and lowers installation work hours.
Designed for standalone mounting with DIN connector electrical interface.

Product Description

SMC AV4000-F04-5YB-A is a high-performance pneumatic solenoid start-up valve engineered for controlled low speed air supply to pneumatic systems, gradually raising initial pressure and enabling quick exhaust by cutting off air supply. Operating at 24 volts DC with a minimal power consumption of 0.35 watts, this valve delivers enhanced energy efficiency and improved flow rate characteristics up to 2.3 times the standard, making it ideal for industrial pneumatic applications.

The valve body is crafted from die cast aluminium, providing durability and resistance against wear. It features two ports of 1/2 inch size with threaded connections in accordance with the G standard and female port gendering, ensuring compatibility with various pneumatic systems. The AV4000-F04-5YB-A supports a maximum operating pressure of 1 MPa and functions within a pilot pressure range of 0.2 to 1 MPa, suitable for precise pressure control scenarios.

With dimensions measuring 170 mm in length, 52 mm in width, and 98 mm in height, this valve offers a compact footprint optimized for standalone mounting. The integrated silencer reduces noise levels and simplifies installation efforts, while the DIN connector ensures fast and secure electrical connection. The valve is certified with CE standards, ensuring compliance with relevant safety and performance requirements.

This pneumatic solenoid valve from SMC is particularly well-suited for industrial pneumatic systems requiring efficient start-up and pressure regulation, such as manufacturing automation, fluid power controls, and mechanical system applications. Its energy-saving design eliminates airflow when the main valve is switched, contributing to cost-effective operation in demanding environments.

Operates at 24 volts DC with low power consumption of 0.35 W. Die cast aluminium body for robust industrial durability. Threaded 1/2 inch female ports with standard G connection. Maximum operating pressure of 1 MPa with pilot pressure range 0.2 to 1 MPa.

Compact size for convenient standalone mounting. Integrated silencer reduces noise and installation time. DIN connector electrical interface for reliable connection. CE certified for industrial safety compliance. Explore this precision Pneumatic Solenoid Valve and related industrial valves at EnvMart for your fluid power, mechanical, HVAC, and manufacturing needs.
