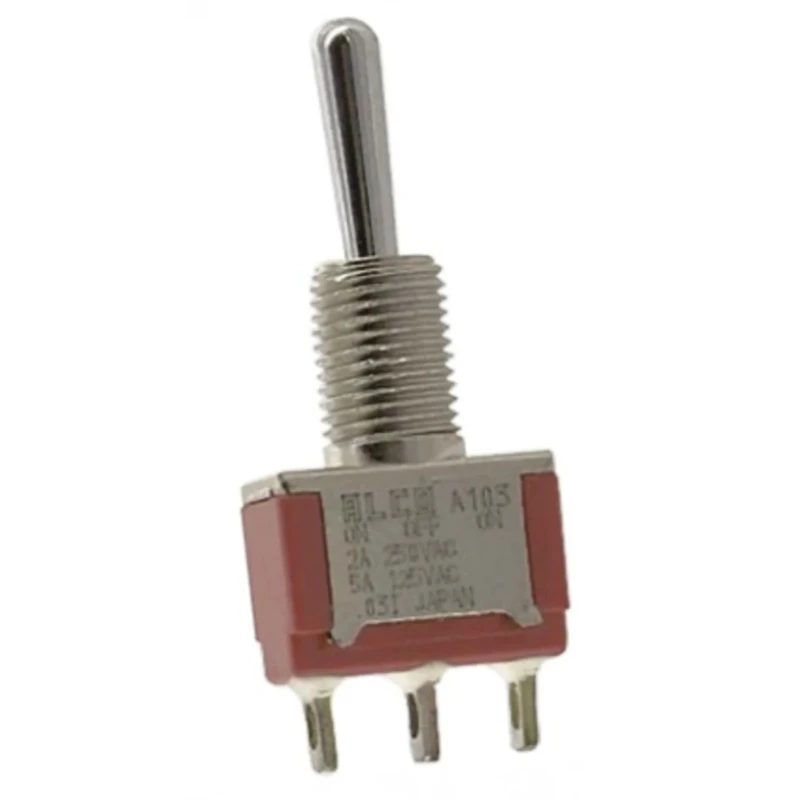

TE Connectivity Panel Mount Toggle Switch SPDT On-Off-On, Solder Terminal, 28 V dc, 125 V ac A103SYZQ04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.5in |
| Model | A103SYZQ04 |
| Width | 0.270in |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 125V ac |
Key Features
- Panel mount design with solder terminal type ensures secure electrical connections.
- Supports a contact current rating of 5 A for reliable switching performance.
- Mechanical life rated at 6000 cycles for durable operation.
- Compact dimensions with a panel cutout size of 6.35 mm and length of 0.5 inch.
- Operates reliably within temperature range from -30°C to 85°C.
- Epoxy sealed terminals and stainless steel frame for enhanced durability and corrosion resistance.
- Break before make contact timing characteristic for safe switching operation.
- RoHS compliant, meeting international environmental standards.
Product Description
TE Connectivity A103SYZQ04 is a high-quality panel mount toggle switch designed for varied electrical and automation applications. This switch operates with On-Off-On functionality and utilizes an SPDT (Single Pole Double Throw) contact configuration, enabling versatile control in circuits.
The switch supports up to 5 A contact current and can be used safely with contact voltages of 28 V DC and 125 V AC. The compact design features a panel cutout size of 6.35 mm and dimensions conducive to easy integration into control panels or instrumentation hardware.
Manufactured with robustness in mind, it has a mechanical life of 6000 cycles. The epoxy sealed terminals protect against environmental factors, while the stainless steel frame combined with brass tin plated solder supports ensures corrosion resistance and mechanical strength.
Operating reliably across a broad temperature span from -30°C to 85°C makes this toggle switch suitable for industrial, laboratory, electrical enclosure, and automation system environments.
Key features include break before make contact timing, solder terminal type for secure connection, and compliance with RoHS standards, reflecting environmental safety. Panel mount toggle switch with SPDT contact configuration.
On-Off-On switch operation providing 3-position control. Current rating of 5 A at 28 V DC and 125 V AC voltages. Epoxy sealed terminals and stainless steel frame for durability. Mechanical lifespan up to 6000 cycles. Operates in temperature range from -30°C to 85°C.
Compact dimensions for easy panel integration. RoHS compliant for environmental safety. Ideal for industrial automation, electrical control panels, and laboratory equipment.
This Toggle Switch is a reliable component choice for industrial, construction, automation, and HVAC electrical control systems. Its robust design assures long-term performance under demanding conditions.
Explore our extensive catalog of electrical switches and automation components on EnvMart to find compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile control in circuits.
It supports a contact current rating of 5 A, ensuring reliable switching performance.
This switch can operate safely at contact voltages of 28 V DC and 125 V AC.
The mechanical life of this model is rated at 6000 cycles, providing durability for repeated use.
It operates reliably within a temperature range from -30°C to 85°C, making it suitable for various environments.
This model features solder terminals, ensuring secure electrical connections.
The required panel cutout size for installation is 6.35 mm.
It has epoxy sealed terminals and a stainless steel frame, which enhance durability and corrosion resistance.
Yes, it is RoHS compliant, meeting international environmental safety standards.
This toggle switch is designed for panel mounting, facilitating easy integration into control panels.
It is suitable for industrial automation, electrical control panels, and laboratory equipment.
The dimensions include a length of 0.5 inches and a width of 0.270 inches, making it compact for installation.
