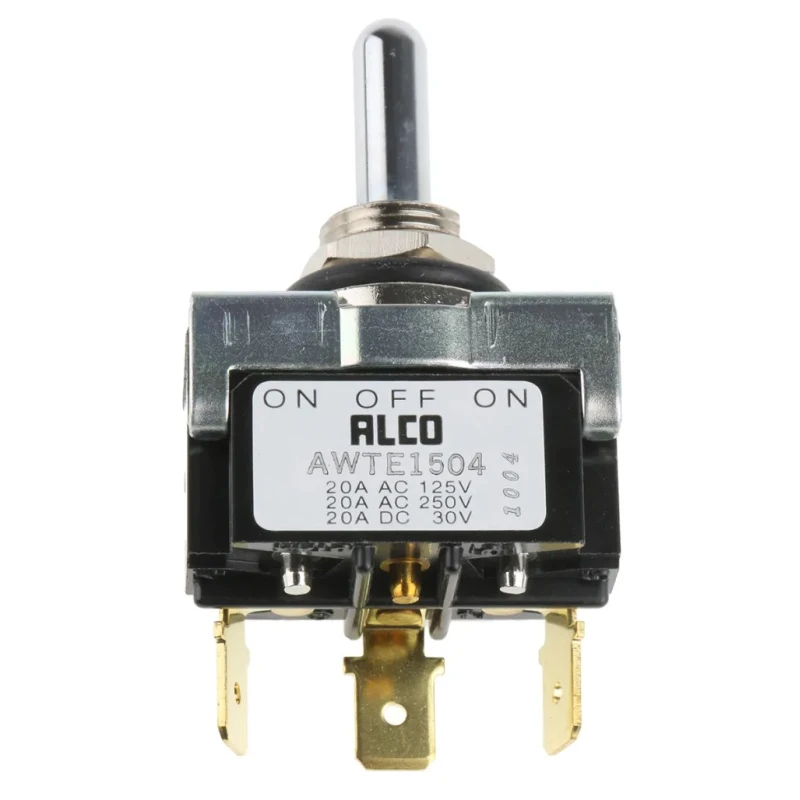

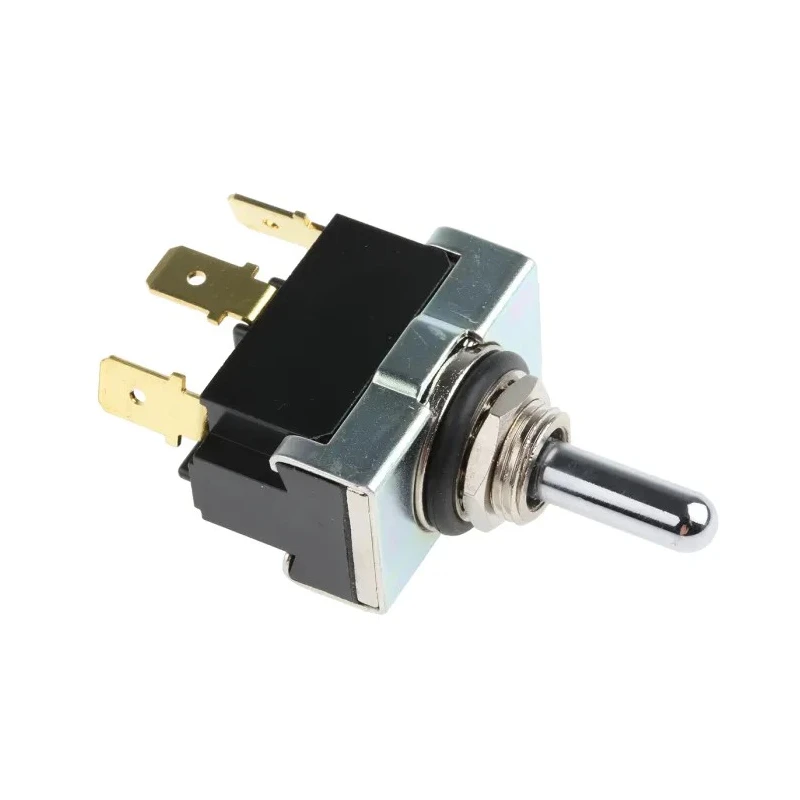

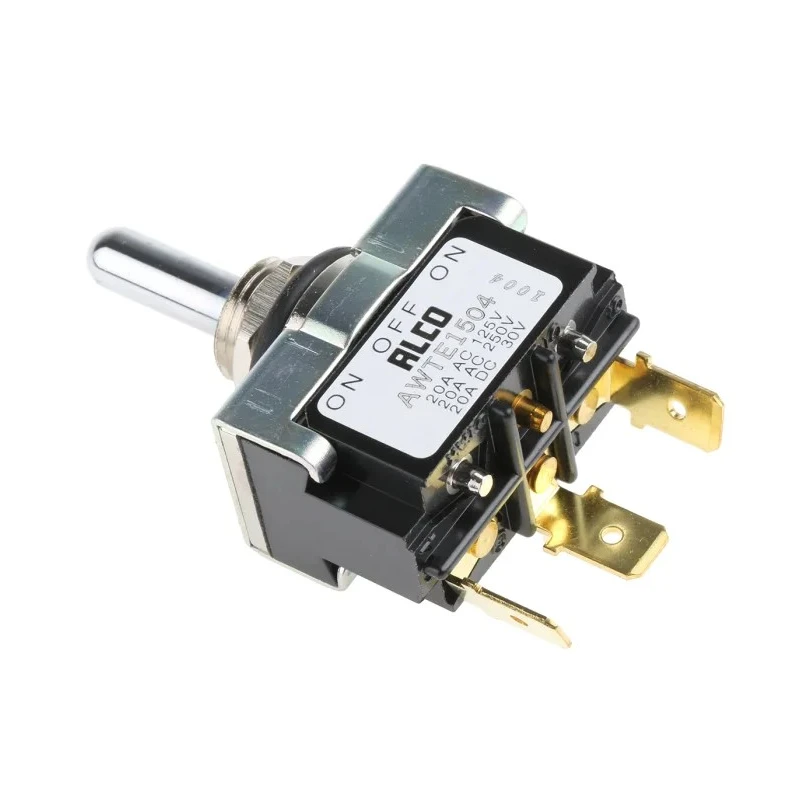

TE Connectivity Panel Mount Toggle Switch SPDT On-Off-On 30 V dc 20 A Brass Actuator AWTE1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 17.48mm |
| Model | AWTE1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AWT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Actuator Material | Brass |
Key Features
- The switch has waterproof IP67 rating ensuring protection against dust and water ingress.
- It features silver plated contacts sealed to prevent dust and liquid ingress.
- The actuator is made from brass with a glass filled polyester case for durability.
- Rated for mechanical life of 40000 cycles for reliable long-term use.
- Operates within a temperature range of -20°C to 70°C for versatile applications.
- Connection is via 1/4 inch tab terminals suitable for soldering or receptacle connection.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for electrical, automation, and industrial control panel applications.
Product Description
TE Connectivity AWTE1504 is a high-quality panel mount toggle switch designed for reliable control in electrical and automation systems. It features an SPDT contact configuration with On-Off-On switch operation and is rated for 30 V dc contact voltage and 20 A current capacity.
The switch’s robust construction includes a brass actuator with a length of 17.5 mm and a durable glass filled polyester case. With an IP67 waterproof rating, the switch is sealed to prevent ingress of dust and liquids, making it suitable for harsh industrial environments.
Electrical connections are facilitated through 1/4 inch tab terminals, enabling soldering or receptacle connections. The device supports a mechanical life expectancy of 40000 cycles, ensuring longevity in repetitive switching applications.
Operating temperature ranges from -20°C to 70°C allow this toggle switch to function reliably in varied climatic conditions. It meets RoHS standards and comes in the AWT series by TE Connectivity, a trusted brand for industrial components.
Typical use cases include panel controls in electrical distribution, automation equipment, machinery operation, and other industrial or commercial setups requiring dependable toggle switching.
The switch is panel mount type with a compact length dimension of approximately 17.48 mm. SPDT contact configuration supports flexible circuit control schemes. Silver plated contacts enhance conductivity and corrosion resistance.
Its waterproof IP67 rating ensures functionality in wet or dusty conditions. Rated for a contact current of 20 A at 30 V dc provides robust switching capacity. Brass actuator material offers durability and tactile response.
Meets environmental and safety regulations with RoHS compliance.
This TE Connectivity toggle switch AWTE1504 merges reliability, durability, and technical performance, making it suitable for industrial, laboratory, manufacturing, and automation system applications. Discover more Toggle Switches and panel mount controls in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a contact current of 20 A at 30 V dc, providing robust switching capacity for various applications.
It has an IP67 waterproof rating, ensuring protection against dust and water ingress, making it suitable for harsh environments.
The switch is rated for a mechanical life of 40,000 cycles, ensuring reliable long-term use in repetitive switching applications.
The actuator length is approximately 17.5 mm, contributing to its compact design suitable for panel mounting.
It operates within a temperature range of -20°C to 70°C, allowing it to function reliably in various climatic conditions.
Electrical connections are made via 1/4 inch tab terminals, which are suitable for soldering or receptacle connection.
This toggle switch features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile circuit control schemes.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The actuator is made from brass, and the case is constructed from glass filled polyester, providing durability and resistance to environmental factors.
It is ideal for use in electrical distribution, automation equipment, machinery operation, and other industrial or commercial setups requiring dependable switching.
This model belongs to the AWT series by TE Connectivity, known for its reliable industrial components.
The switch operates in an On-Off-On configuration, providing flexible control options for various electrical systems.
