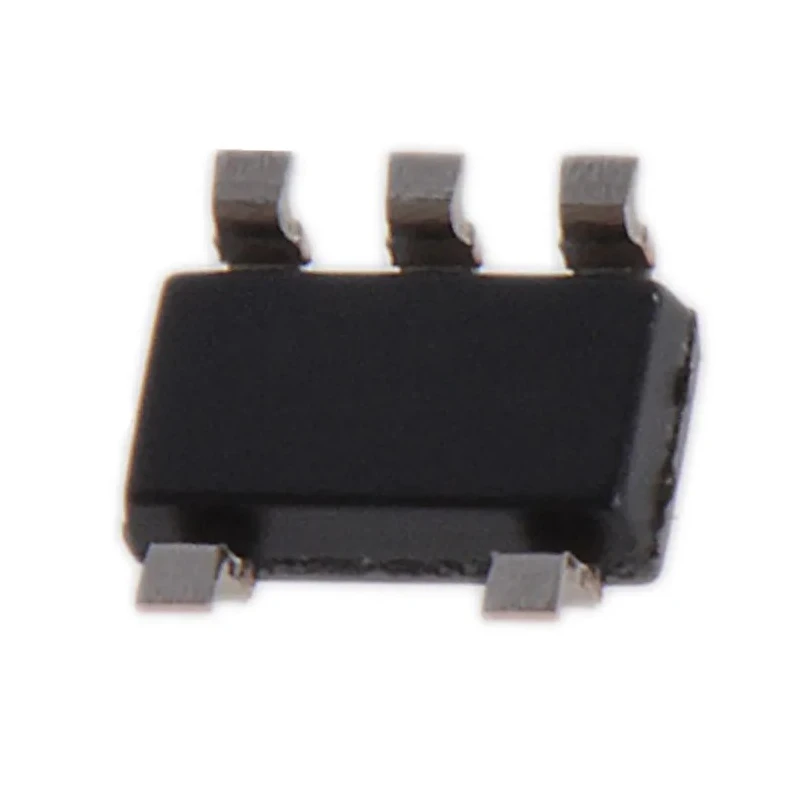

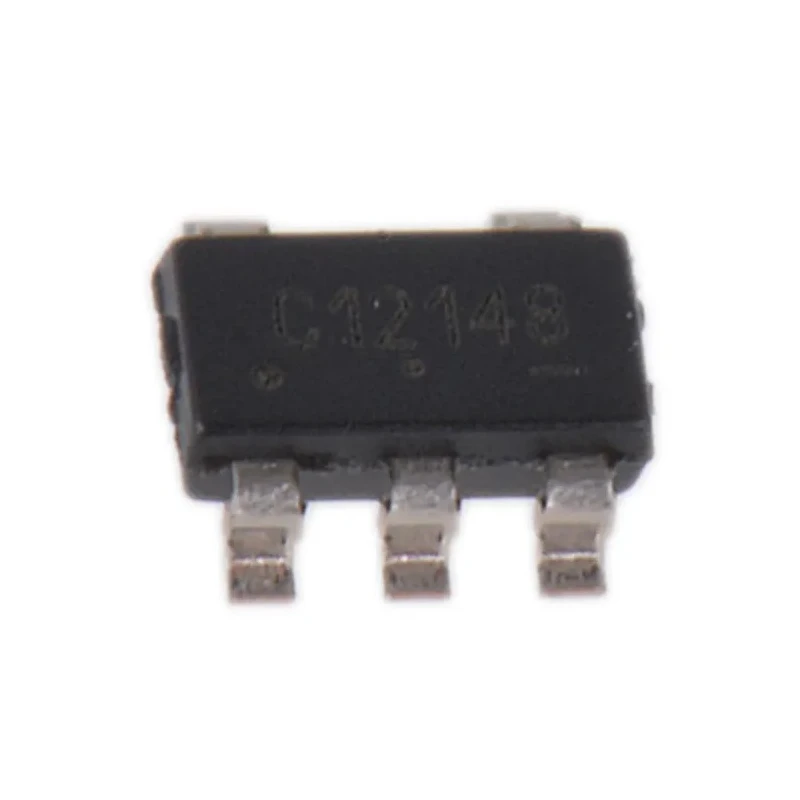

onsemi 2 kB Serial-I2C EEPROM 900 ns 5-Pin TSOT Surface Mount CAT24C02TDI-GT3A

onsemi CAT24C02TDI-GT3A is a high-performance 2 kB Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for Serial I2C interface applications. This 5-pin TSOT surface mount device offers a maximum access time of 900 ns and operates over a wide voltage range from 1.7 V to 5.5 V, making it suitable for diverse electronic designs.

Featuring a memory organization of 256 words with 8 bits per word, it ensures versatile and efficient data storage for embedded systems. The compact TSOT package measures just 2.9 mm in length, 2.8 mm in width, and 1 mm in height, allowing easy integration into space-constrained applications.

With a maximum clock frequency of 400 kHz, the EEPROM enables fast and reliable serial communication. Its low supply current of 2 mA and extended data retention of up to 100 years provide energy efficiency and long-term data reliability.

The device supports operation between -40°C and 85°C, suitable for demanding industrial and automotive environments, meeting the AEC-Q100 automotive standard. The chip's surface mount design simplifies automated assembly processes, improving manufacturing efficiency.

This onsemi CAT24C02TDI-GT3A EEPROM is ideal for use in industrial controls, automotive systems, consumer electronics, and a variety of applications requiring stable non-volatile memory.

Memory size of 2 kB organized as 256 x 8 bits. Serial-I2C interface with maximum clock frequency of 400 kHz. Compact 5-pin TSOT surface mount package. Low supply current of 2 mA for power efficient operation. Operational temperature range from -40°C to 85°C.

Data retention duration of 100 years ensuring long term memory stability. Meets AEC-Q100 automotive standard for reliability. Dimensions: Length 2.9 mm, Width 2.8 mm, Height 1 mm. Supply voltage range: 1.7 V to 5.5 V. Explore the Electronics & Electricals category for more semiconductor memory solutions at EnvMart.
