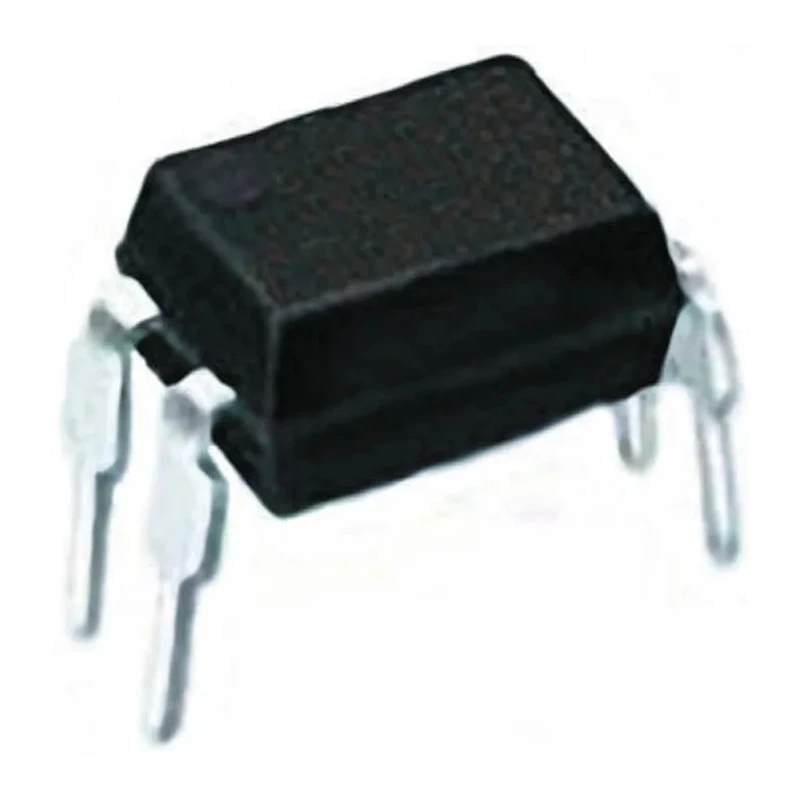

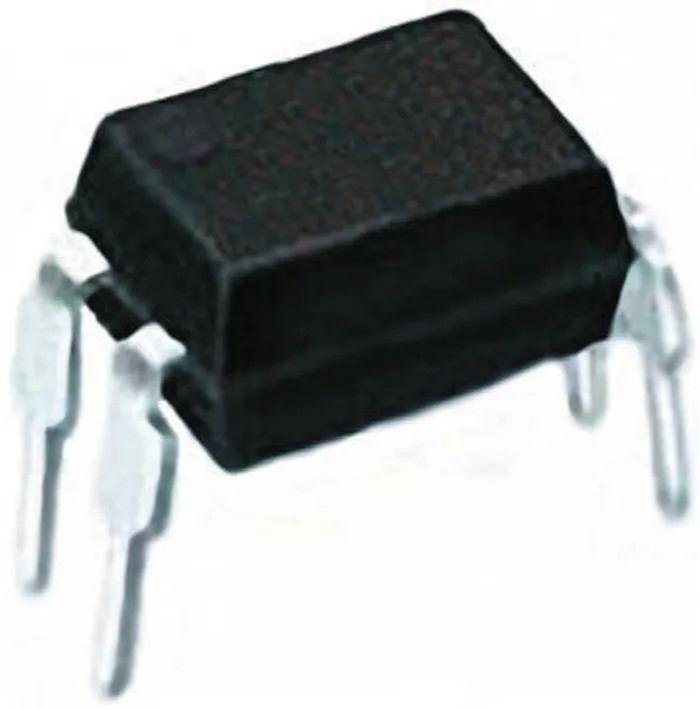

Vishay DC Input Optocoupler Through Hole 4-Pin DIP VO615A-1X001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VO615A-1X001 |
| Mount Type | Through Hole |
| Series | VO |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 30% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 40% |
Key Features
- Features a transistor output for effective signal transfer.
- Provides isolation voltage up to 5000 Vrms.
- Suitable for operating temperatures ranging from -55°C to 110°C.
- Typical rise and fall times are 3 μs and 4.7 μs respectively.
- Designed to operate with a maximum forward voltage of 1.6 V and a maximum input current of 60 mA.
- Complies with EN and UL standards for quality and safety.
- Commonly used in industrial controls, telecom systems, smart meters, and power supplies.
Product Description
Vishay VO615A-1X001 DC Input Optocoupler is a high-performance phototransistor output device designed for through hole mounting in a compact 4-pin DIP package. It provides crucial electrical isolation up to 5000 Vrms, effectively protecting microprocessors and electrical equipment users from voltage spikes and electrical shocks.
The device operates reliably within a temperature range of -55°C to 110°C, making it suitable for demanding industrial and commercial environments. Its fast switching times with typical rise and fall times of 3 μs and 4.7 μs enhance performance in dynamic signal applications.
With a maximum forward voltage of 1.6 V and maximum input current of 60 mA, the VO615A-1X001 maintains high efficiency and low power consumption. Designed to meet EN and UL safety standards, it assures compliance and reliability.
This optocoupler is widely employed in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and solar powered Internet devices.
Features a transistor output for effective signal transfer. Provides electrical isolation of up to 5000 Vrms. Operates safely in industrial temperature ranges from -55°C to 110°C. Fast switching with typical rise time of 3 μs and fall time of 4.7 μs.
Maximum forward voltage of 1.6 V and input current up to 60 mA. Compliance with EN and UL standards ensures safety and quality. Applications include industrial automation, telecom, and smart metering. Explore a wide range of Vishay semiconductor components and other Optocouplers on EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VO615A-1X001 provides electrical isolation of up to 5000 Vrms.
This model operates reliably within a temperature range of -55°C to 110°C.
The typical rise time is 3 μs and the typical fall time is 4.7 μs.
The maximum forward voltage for the VO615A-1X001 is 1.6 V.
This unit has a maximum input current of 60 mA.
The VO615A-1X001 features a single channel design.
It complies with EN and UL standards for quality and safety.
This model is designed for through hole mounting in a compact 4-pin DIP package.
It is commonly used in industrial controls, telecom systems, smart meters, and power supplies.
The package type for this optocoupler is DIP (Dual In-line Package).
The maximum current transfer ratio is 30%.
The minimum current transfer ratio for the VO615A-1X001 is 40%.
