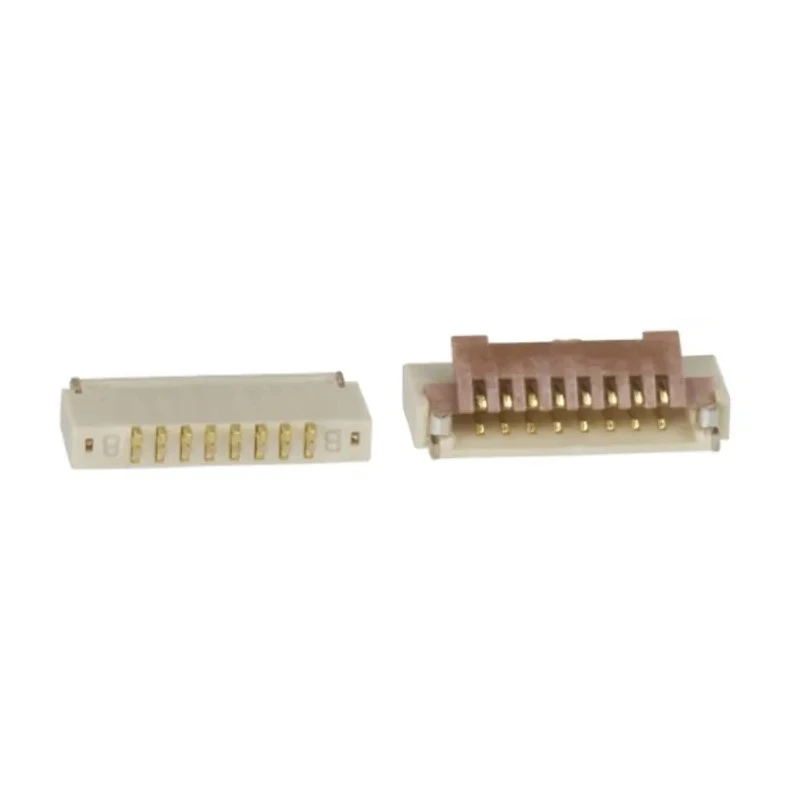

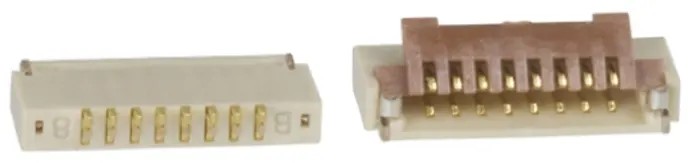

Hirose FH19 0.5 mm Pitch 8 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH19 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FH19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- The 0.5 mm pitch design allows compact and space-saving PCB layouts.
- Features an 8-position female connector with gold-plated phosphor bronze contacts for enhanced conductivity and durability.
- Uses a surface mount type with solder termination for secure mounting on PCBs.
- The right-angle orientation facilitates easy routing and connection on densely packed boards.
- Incorporates a rotating flip-lock actuator for zero insertion force (ZIF) and secure FPC retention.
- Operates reliably within -55°C to 85°C temperature range, suitable for varied industrial applications.
- Supports a maximum voltage rating of 50V AC and current capacity of 500mA.
- Constructed with a liquid crystal polymer housing, ensuring mechanical stability and electrical insulation.
Product Description
Hirose FH19C-8S-0.5SH(05) is an 8-way right angle female FPC connector featuring a 0.5 mm pitch designed for surface mount soldering on PCBs. The connector belongs to the FH19 series and is constructed from high-quality phosphor bronze contacts with gold plating for excellent electrical performance and durability.
Its low profile height of 0.9 mm and narrow width of 3 mm enable PCB space savings, ideal for miniaturized portable devices. A rotating flip-lock actuator allows zero insertion force (ZIF) FPC insertion and secure retention with a tactile click confirmation when fully locked.
The connector's housing is made from liquid crystal polymer providing robust mechanical integrity and protection. Its design enables mounting over conductive PCB traces without exposing contacts, and metal fittings help secure the connector firmly to the PCB while guiding FPC alignment.
This FPC connector supports an operating voltage of 50 V AC and current rating of 500 mA, making it suitable for low power electronic applications. It operates reliably within a temperature range from -55°C to 85°C.
Applications include miniaturized portable equipment, personal mobile devices, notebook PCs, mobile phones, PDAs, portable audio players, and DVD players. Its compact form factor and secure locking mechanism make it ideal for industrial, consumer electronics, and communication equipment.
The 0.5 mm pitch design allows compact and space-saving PCB layouts. 8-position female connector with gold-plated phosphor bronze contacts enhances conductivity and durability. Surface mount solder termination ensures secure PCB mounting.
Right-angle orientation supports easy PCB routing in dense layouts. Rotating flip-lock actuator provides zero insertion force (ZIF) and tactile lock feedback. Wide operating temperature range from -55°C to 85°C for diverse applications.
Supports 50 V AC voltage and 500 mA current rating for reliable performance. Liquid crystal polymer housing provides mechanical strength and electrical insulation. Explore our comprehensive range of FPC connectors and related electronics components on EnvMart for your industrial and commercial needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch design, allowing for compact and space-saving PCB layouts.
It supports a maximum voltage rating of 50V AC and a current capacity of 500mA.
This connector operates reliably within a temperature range of -55°C to 85°C.
It uses a solder termination type for secure mounting on PCBs.
The housing is made from liquid crystal polymer, and the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
It features 8 contacts in a female configuration.
This model has a right-angle orientation, facilitating easy routing and connection on densely packed boards.
Yes, it incorporates a rotating flip-lock actuator that provides zero insertion force (ZIF) for easy FPC insertion and secure retention.
It has a low profile height of 0.9 mm and a narrow width of 3 mm, making it suitable for miniaturized devices.
The contact position is at the bottom, allowing for effective PCB integration.
The country of origin for this connector is India.
