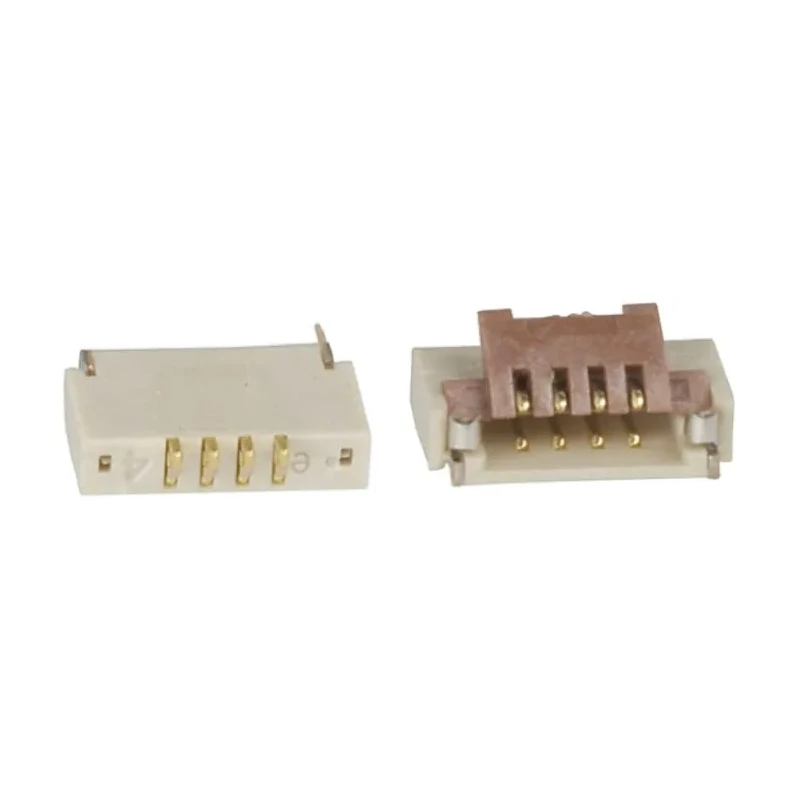

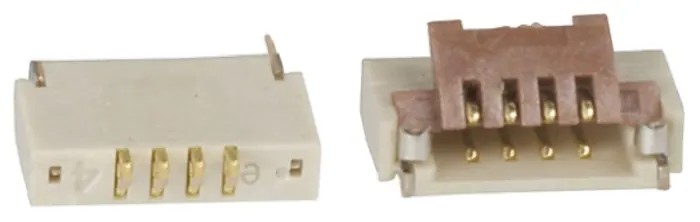

Hirose FH19 0.5 mm Pitch 4 Way Right Angle Female FPC Connector, Solder FH19
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 500mA |
| Model | FH19 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FH19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a 0.5 mm pitch for compact connections.
- Accommodates 4 contact points for reliable signal transmission.
- Right angle orientation enables space-saving PCB layouts.
- Surface mount type designed for solder termination.
- Low profile 0.9 mm height for reduced footprint.
- Zero Insertion Force (ZIF) flip-lock actuator for secure FPC retention.
- Gold plated phosphor bronze contacts ensure durability and conductivity.
- Liquid Crystal Polymer housing for lightweight and stable structure.
Product Description
Hirose FH19 0.5 mm Pitch 4 Way Right Angle Female FPC Connector, model FH19, is a high-quality surface mount FPC connector designed for advanced electronic applications. It features a compact 0.5 mm pitch with 4 contact positions, ensuring reliable and precise connection for flexible printed circuits. The connector's right angle orientation and low profile height of 0.9 mm help maximize PCB space efficiency while maintaining excellent performance.
This connector includes a rotating flip-lock actuator with a zero insertion force mechanism, simplifying FPC insertion and providing secure retention. The actuator's tactile click confirms full lock placement, enhancing usability and reliability in assembly processes. Its enclosed design and metal fittings aid in PCB retention and alignment without exposing contact points, allowing it to be mounted over conductive traces safely.
The contacts are made from phosphor bronze with gold plating, ensuring long-lasting conductivity and resistance to wear. The housing is crafted from Liquid Crystal Polymer, offering a lightweight yet stable enclosure that withstands operational stresses. The connector operates reliably within a temperature range of -55°C to 85°C and supports an AC voltage up to 50V and current rating of 500mA.
This FH19 series connector is widely used in miniaturized portable devices including personal mobile devices, notebook PCs, PDAs, mobile phones, portable audio players, and DVD-R drives. Its design contributes significantly to compact, high-density electronic assemblies.
Features a low profile height of 0.9 mm for space saving. Flip-lock actuator with ZIF function facilitates easy FPC installation. Gold plated phosphor bronze contacts ensure high electrical reliability. Liquid Crystal Polymer housing provides durability and stability.
Tactile click signal confirms secure actuator locking. Suitable for FPC thickness of 0.2 mm in FH19C series. Designed for miniaturized portable and mobile electronic devices. Allows mounting over conductive PCB traces without exposure risk.
Metal side fittings enhance connector retention and alignment. Operates reliably between -55°C and 85°C. Explore more high-quality FPC connectors and related components at EnvMart to support your industrial, electronic manufacturing, and assembly needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FH19 connector features a compact pitch of 0.5 mm.
This model has 4 contact positions for reliable signal transmission.
The FH19 connector is designed with a right angle orientation, allowing for space-saving PCB layouts.
The connector operates reliably within a maximum temperature of 85°C.
It has a current rating of 500 mA.
The housing is made from Liquid Crystal Polymer, and the contacts are phosphor bronze with gold plating.
This connector uses solder termination for secure attachment.
The connector features a Zero Insertion Force (ZIF) flip-lock actuator for easy and secure FPC retention.
The minimum operating temperature is -55°C.
The height of this connector is 0.9 mm, contributing to its low profile design.
Yes, it can be mounted over conductive PCB traces without exposing the contact points, ensuring safe installation.
