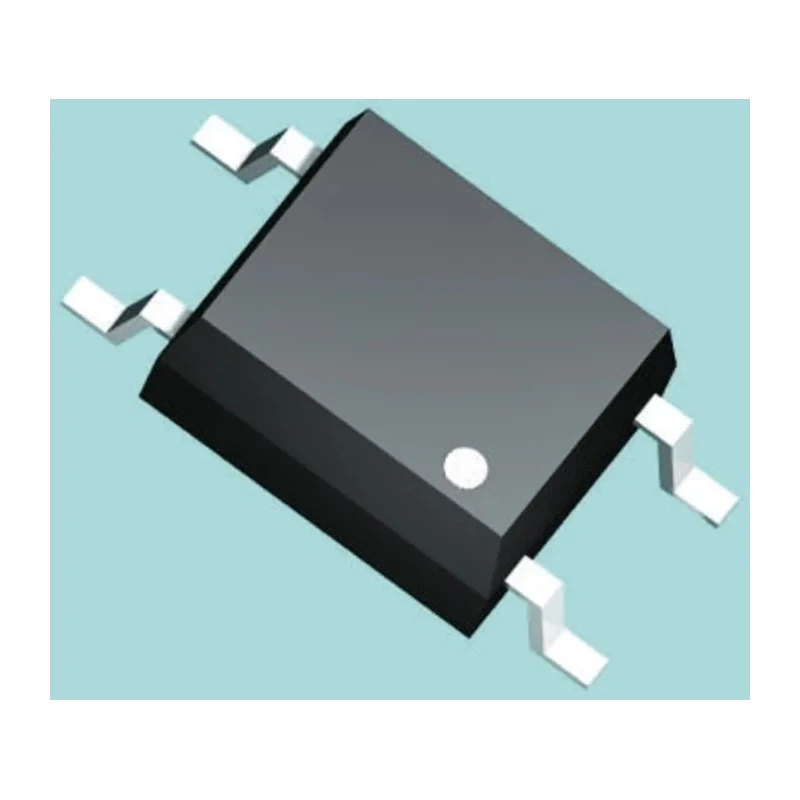

Vishay DC Input Optocoupler Surface Mount 4-Pin SOP Phototransistor Output Isolation Voltage 3750Vrms VOM617A-7X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-7X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 160% |
| Typical Fall Time | 12μs |
| Minimum Current Transfer Ratio | 80% |
Key Features
- The optocoupler uses a DC input current type ensuring reliable control.
- Maximum forward voltage is 1.6V ensuring efficient signal transmission.
- It offers a maximum current transfer ratio of 160% and a minimum of 80% for performance stability.
- Typical rise and fall times are 7μs and 12μs respectively for fast switching.
- Packaged in tape & reel for easy automated assembly.
- Single channel design with 4 pins and SOP package type aids in compact circuit layouts.
- Complies with EN and UL standards for quality and safety assurance.
- Suitable for industrial, telecom, and power supply isolation applications.
Product Description
Vishay VOM617A-7X001T DC Input Optocoupler is a high-isolation phototransistor output device designed for surface mount applications. Encased in a 4-pin SOP package, it provides an isolation voltage of up to 3750Vrms, protecting equipment and microprocessors from electrical shocks and voltage spikes.
This optocoupler utilizes a DC input current type and operates efficiently within a temperature range of -55°C to 110°C, making it suitable for diverse industrial, electronic, and telecom applications. The typical rise time of 7μs and fall time of 12μs ensures rapid response and switching performance.
With a maximum forward voltage of 1.6V and a maximum input current of 60mA, the device ensures stable and efficient operation, further supported by a current transfer ratio ranging between 80% and 160%. It is packaged in tape & reel format facilitating automated insertion and assembly.
Applications include isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, power over Internet, and solar energy systems. Vishay’s VOM series optocouplers are reliable components for protecting electronic circuits by isolating different sections of the systems.
The Optocoupler uses a DC input current type ensuring reliable control. Maximum forward voltage is 1.6V ensuring efficient signal transmission. It offers a maximum current transfer ratio of 160% and a minimum of 80% for performance stability.
Typical rise and fall times are 7μs and 12μs respectively for fast switching. Packaged in tape & reel for easy automated assembly. Single channel design with 4 pins and SOP package type aids in compact circuit layouts. Complies with EN and UL standards for quality and safety assurance.
Operates reliably in temperatures ranging from -55°C to 110°C. Ideal for industrial, telecom, and power supply isolation applications. Explore more Vishay optoelectronics and semiconductor components at EnvMart for high-quality industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VOM617A-7X001T has a maximum isolation voltage of 3750Vrms, providing protection against electrical shocks and voltage spikes.
This model uses a DC input current type, ensuring reliable control in various applications.
The maximum input current for this optocoupler is 60mA, allowing for stable operation.
The typical rise time is 7μs and the fall time is 12μs, providing fast switching performance.
The maximum forward voltage for this optocoupler is 1.6V, which ensures efficient signal transmission.
This model operates reliably within a temperature range of -55°C to 110°C, suitable for various environments.
The VOM617A-7X001T features a single channel design, which is compact for circuit layouts.
It is packaged in tape & reel format, facilitating easy automated assembly.
This optocoupler complies with EN and UL standards for quality and safety assurance.
The current transfer ratio for the VOM617A-7X001T ranges from a minimum of 80% to a maximum of 160%.
This optocoupler is in a 4-pin SOP package type, which aids in compact circuit design.
It is suitable for applications such as isolation in AC adapters, switch mode power supplies, and telecom systems.
