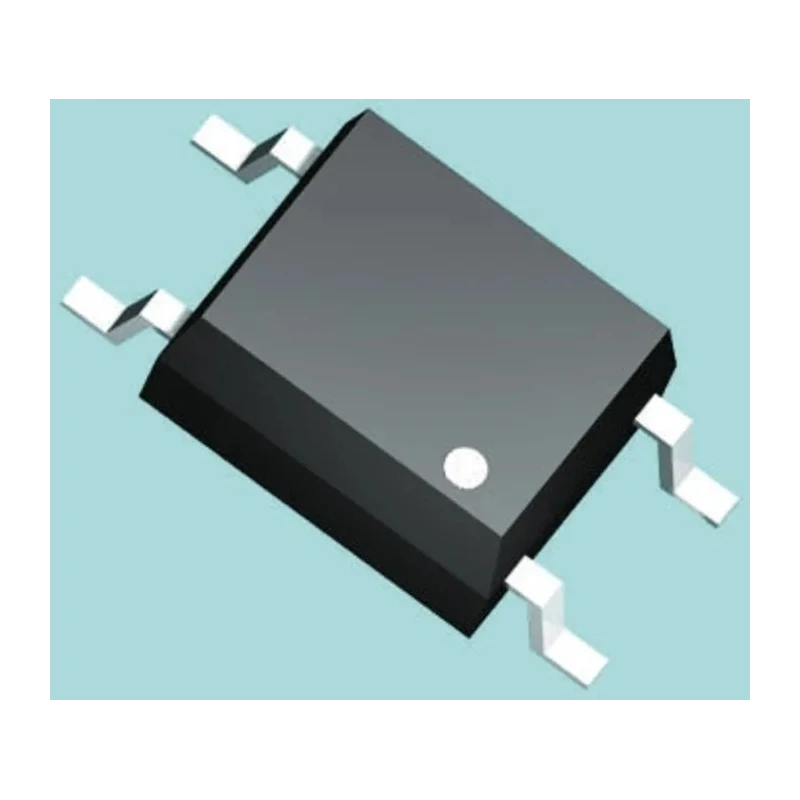

Vishay DC Input Optocoupler, Surface Mount, 1 Channel, 4-Pin SOP Package VOM617A-4X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-4X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 320% |
| Typical Fall Time | 12μs |
| Minimum Current Transfer Ratio | 160% |
Key Features
- Designed for electrical isolation up to 3750Vrms to protect circuits from high voltages.
- Operates within a wide temperature range from -55°C to 110°C.
- Features a maximum forward voltage of 1.6V and input current up to 60mA DC.
- Typical rise time of 7 microseconds and fall time of 12 microseconds for reliable switching.
- Current transfer ratio ranges from 160% minimum to 320% maximum for efficient signal transmission.
- Complies with EN and UL standards ensuring safety and quality.
- Packaged in tape and reel format suitable for automated PCB assembly.
- Phototransistor output type suitable for industrial, telecom, and power management applications.
Product Description
Vishay VOM617A-4X001T is a DC input optocoupler designed with a surface mount 4-pin SOP package providing a single channel for signal isolation. It offers robust protection against voltage spikes up to 3750Vrms, protecting equipment users and sensitive microprocessors in industrial control systems.
This optocoupler is ideal for applications such as AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and solar power management. It supports input currents up to 60mA with a maximum forward voltage of 1.6V to ensure efficient operation.
With operating temperature capability from -55°C to 110°C, the device performs reliably in harsh environments. The current transfer ratio spanning 160% to 320% offers stable signal transmission through the isolation barrier. The device meets EN and UL safety standards, confirming its compliance with international quality requirements.
Packaging in tape and reel format facilitates seamless automated placement during PCB assembly, improving production efficiency. The optocoupler’s transistor output configuration enables compatibility with diverse circuits requiring galvanic isolation.
Electrical isolation voltage of 3750Vrms for safety and protection. Surface mount 4-pin SOP package for compact and reliable circuit integration. Typical rise time of 7μs and fall time of 12μs for signal switching. Wide operating temperature range from -55°C to 110°C for industrial usage.
Compliance with EN and UL standards ensures product quality. Suitable for telecom, industrial automation, power supplies, and smart meter applications. Single channel optocoupler ideal for DC input applications. Packaging: Tape & Reel for efficient handling and assembly.
This Vishay Optocoupler is part of the VOM series, recognized for its low input current and reliable performance in electrical isolation scenarios. Buy with confidence for use in demanding industrial, HVAC, manufacturing, and commercial electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum electrical isolation voltage of this optocoupler is 3750Vrms, providing robust protection against high voltage spikes.
This model operates within a temperature range from -55°C to 110°C, making it suitable for harsh environments.
The maximum input current supported by this optocoupler is 60mA DC, ensuring efficient operation in various applications.
The typical rise time is 7 microseconds and the fall time is 12 microseconds, allowing for reliable signal switching.
The current transfer ratio ranges from a minimum of 160% to a maximum of 320%, facilitating efficient signal transmission.
It is packaged in a tape and reel format, which is suitable for automated PCB assembly.
This optocoupler features a single channel for signal isolation.
It complies with EN and UL standards, ensuring safety and quality in its performance.
The maximum forward voltage for this model is 1.6V, which is essential for its operation.
The mount type for this optocoupler is surface mount, allowing for compact integration into circuits.
It is suitable for applications such as AC adapters, switch mode power supplies, industrial controls, and telecom systems.
The country of origin for this optocoupler is India.
