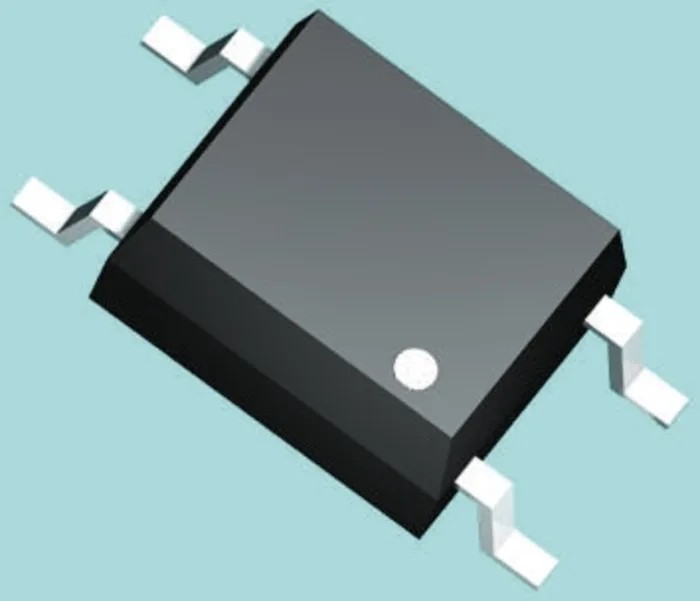

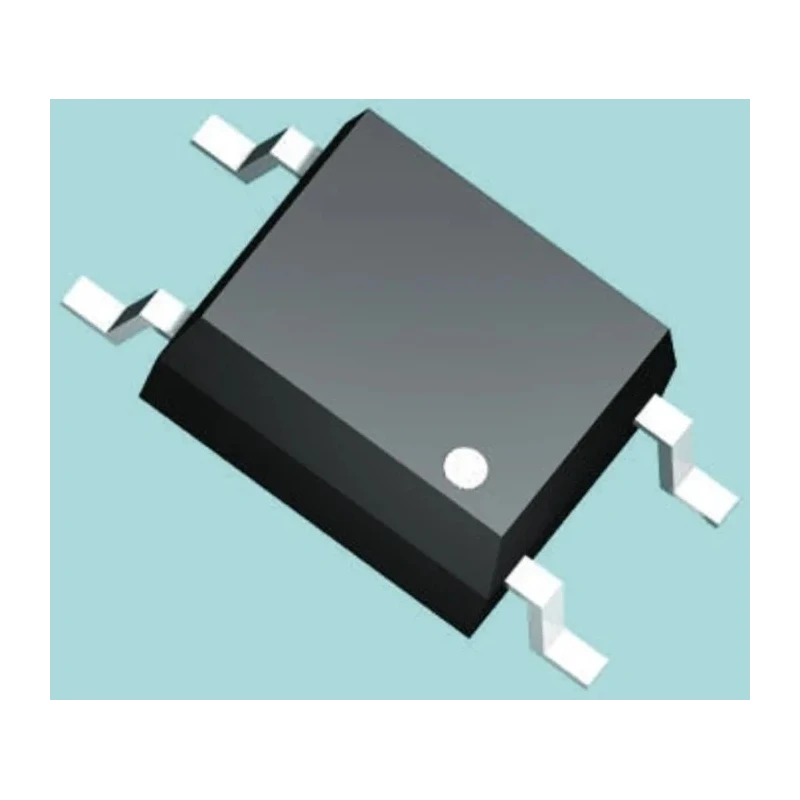

Vishay DC Input Optocoupler, Surface Mount, 4-Pin SOP, Phototransistor Output, 1 Channel, 60mA Input Current VOM617A-7X001T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VOM617A-7X001T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | VOM |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | EN, UL |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 7μs |
| Maximum Current Transfer Ratio | 160% |
| Typical Fall Time | 12μs |
| Minimum Current Transfer Ratio | 80% |
Key Features
- Offers high voltage isolation up to 3750 Vrms for safety and equipment protection.
- Features a 4-pin SOP surface mount package suitable for space-constrained PCB designs.
- Input current type is DC with maximum input current rated at 60 mA.
- Operating temperature range from -55°C to 110°C ensures durability in harsh environments.
- Typical rise and fall times of 7 μs and 12 μs support fast signal response.
- Current transfer ratio ranges between 80% and 160% for reliable signal transmission.
- Compliant with EN and UL standards for quality assurance.
- Available in tape and reel packaging for efficient automated assembly.
Product Description
Vishay VOM617A-7X001T is a DC input optocoupler featuring a phototransistor output in a 4-pin SOP surface mount package. This device provides robust electrical isolation with a voltage isolation rating of up to 3750 Vrms, making it ideal for protecting systems against voltage spikes and shocks. It supports an input current of up to 60 mA DC, ensuring compatibility with a wide variety of industrial and electronic applications.
The optocoupler operates reliably across a temperature range from -55°C to 110°C, suitable for demanding industrial, telecom, and smart meter environments. Its fast typical rise time of 7 μs and fall time of 12 μs allows efficient signal transmission with minimal delay. The current transfer ratio ranges from 80% to 160%, offering adaptable performance depending on the circuit requirements.
Packaged in tape and reel format, the Vishay VOM617A-7X001T supports automated manufacturing processes and enhances production efficiency. It meets stringent EN and UL standards, ensuring safety and compliance for various electronics manufacturing sectors.
This optocoupler series is widely used in AC adapters, switch mode power supplies, programmable logic controllers, industrial control systems, and telecommunication equipment to effectively isolate and protect microprocessors and sensitive components.
High isolation voltage of 3750 Vrms ensures operator safety and component protection. Surface mount SOP package minimizes board space usage and enables automated assembly. Wide operating temperature range supports use in harsh industrial environments.
Fast response times facilitate signal integrity in dynamic applications. Reliable current transfer ratio for consistent output performance. Compliance with international safety standards ensures quality and trustworthiness.
Suitable for power supplies and control systems requiring electrical isolation. Tape and reel packaging supports high volume production requirements. Explore more Vishay semiconductor Optocouplers and related components at EnvMart for advanced industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is rated at 60 mA DC.
It provides high voltage isolation up to 3750 Vrms, ensuring safety and equipment protection.
This unit operates reliably within a temperature range from -55°C to 110°C.
The typical rise time is 7 μs and the fall time is 12 μs, supporting fast signal response.
It features a phototransistor output, which is suitable for various applications.
The VOM617A-7X001T is available in tape and reel packaging, facilitating automated assembly.
This optocoupler is compliant with EN and UL standards, ensuring quality assurance.
This model has 1 channel.
The maximum forward voltage is rated at 1.6V.
The current transfer ratio ranges from 80% to 160%, providing reliable signal transmission.
It features a surface mount design, suitable for space-constrained PCB layouts.
