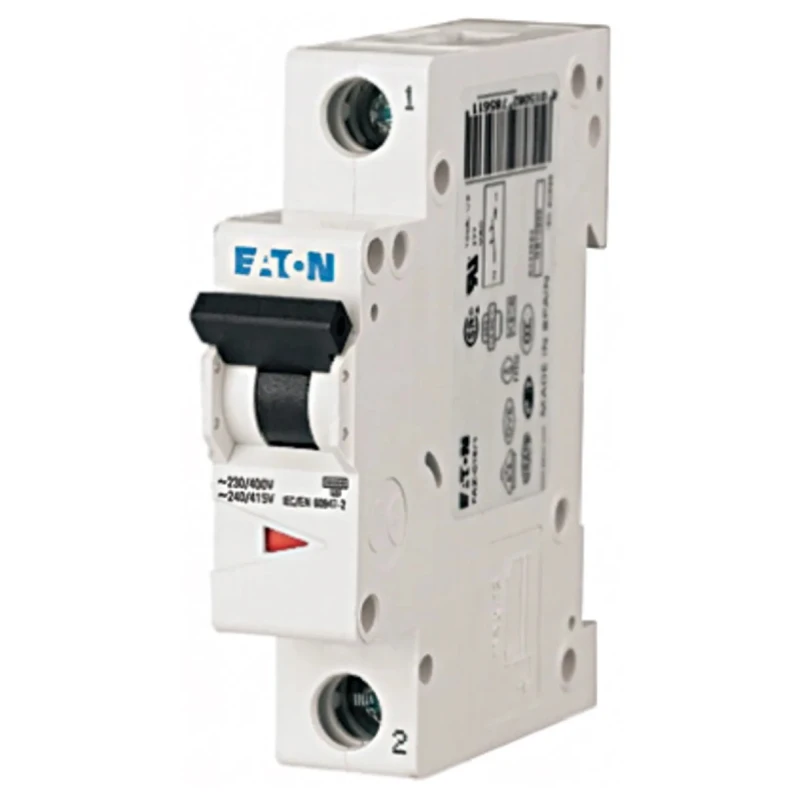

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 50A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6-C50/1
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 50A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Thermal-magnetic overcurrent protection ensures fast and reliable circuit interruption.
- Rated for 400V AC operation suitable for various industrial and commercial applications.
- Toggle switch reset actuator with instantaneous break time for effective fault clearing.
- Compact 17.5 mm module width allows easy installation on DIN rails.
- Finger-proof design and trip-free mechanism enhance user safety and compliance.
- Designed to protect electrical equipment from overload and short circuits efficiently.
- Supports a wide range of breaking capacities and tripping curves including Type B, C, and D.
- Standard compliant with IEC 898 and EN60-898 for low voltage circuit breakers.
Product Description
Eaton FAZ6-C50/1 xEffect Miniature Circuit Breaker provides high-performance circuit protection in a compact, 1-pole design rated at 50A with Type C tripping characteristics. It operates reliably at 400V AC with a 6 kA breaking capacity, ideal for controlling electrical distribution boards and industrial control circuits.
Featuring thermal-magnetic tripping, this breaker quickly interrupts current in response to overloads and short circuits, preventing damage to downstream equipment. The toggle switch actuator allows easy resetting and clear indication of contact position. Mounted on a DIN rail with a narrow 17.5 mm module width, it offers space saving in panel installations.
The FAZ6 series includes safety features such as a trip-free mechanism that prevents manual defeat of the protection, along with finger-proof construction to protect users from electrical hazards. The device supports multiple tripping curves (Types B, C, D, K, S, Z) accommodating various protection needs.
These miniature circuit breakers comply with IEC 898 and related European standards for low voltage industrial circuit protection, ensuring compatibility in commercial and industrial environments. The product range facilitates easy integration with snap-on accessories, auxiliary modules, and other system components.
Thermal-magnetic overcurrent protection ensures fast and reliable interruption. Compact 17.5 mm width per pole saves panel space and installation cost. DIN rail mounting simplifies installation and replacement. Trip-free toggle switch prevents manual override for improved safety.
Supports multiple tripping curves to match specific circuit protection requirements. Complies with IEC 898 and EN standards for assured quality and performance. Provides efficient protection for electrical distribution and control applications.
Finger-safe design improves operator safety during handling.
This miniature circuit breaker is suited for a broad range of uses in industrial, manufacturing, HVAC, commercial electrical systems, and water treatment plants. Eaton xEffect FAZ6 series is designed for durable and reliable circuit protection ensuring system integrity and personnel safety.
Explore more Miniature Circuit Breakers and related electrical components within the Electronics & Electricals category at EnvMart for professional-grade equipment and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this miniature circuit breaker is 50A.
It has a breaking capacity of 6 kA.
This model is rated for operation at 400V AC.
It features Type C tripping characteristics, which means it trips instantaneously when the current is 5 to 10 times the rated current.
The width of this miniature circuit breaker is 17.5 mm.
It is designed for DIN rail mounting, which simplifies installation and replacement.
This model includes a trip-free mechanism that prevents manual defeat of the protection and a finger-proof design to enhance user safety.
The depth of the Eaton FAZ6-C50/1 is 62 mm.
It complies with IEC 898 and EN60-898 standards for low voltage circuit breakers.
It supports multiple tripping curves including Types B, C, D, K, S, and Z.
The reset actuator type is a toggle switch, allowing for easy resetting and clear indication of contact position.
The country of origin for this product is India.
