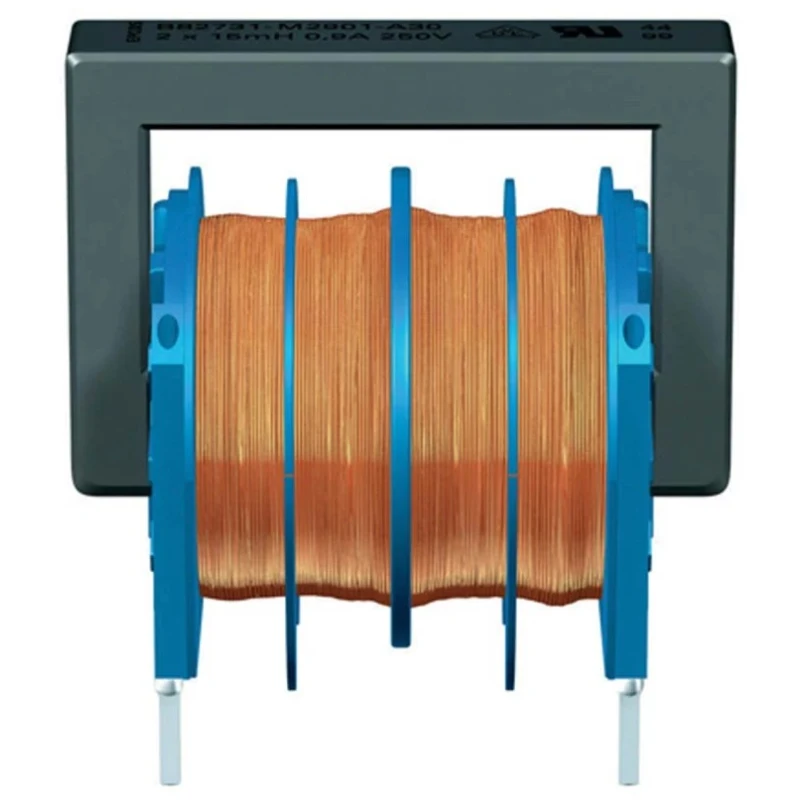

TDK 3.3 mH Ferrite Power Line Choke Radial Mount 1.8 A DC Current 140 mΩ Resistance 250 V AC B82731M2182A030

Free Delivery in India | Lowest Global Shipping Charges

TDK 3.3 mH Ferrite Power Line Choke Radial Mount 1.8 A DC Current 140 mΩ Resistance 250 V AC B82731M2182A030



Category Mounting Equipment Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	20mm
Length	21mm
Model	B82731M2182A030
Depth	15mm
Packaging	Box
Mount Type	Radial
Series	B82731M
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	3.3mH
Standards/Approvals	EN, RoHS, ENEC, IEC, UL, VDE
Maximum DC Current	1.8A
Maximum DC Resistance	140mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	12.5mm
Lead Diameter	0.6mm

Key Features

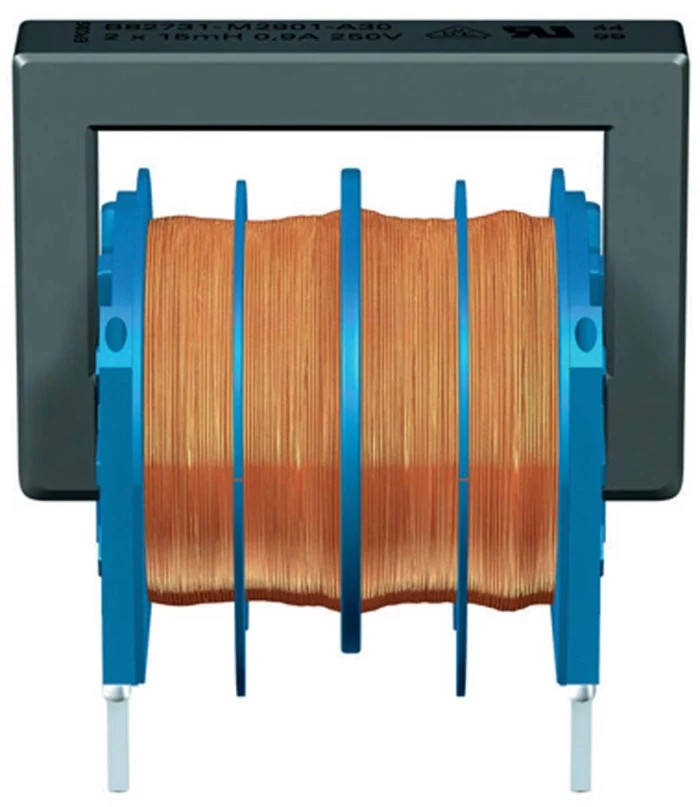

Constructed with a closed rectangular ferrite core with a 2-section winding.
Features low leakage and approximately 1% stray inductance for symmetrical interference suppression.
Designed for radial mounting and wave soldering compatibility.
Operates up to a maximum voltage of 250 V AC and temperature of 125°C.
Applications include suppression of common-mode interference in compact switch-mode power supplies and electronic ballasts.
Complies with EN, RoHS, ENEC, IEC, UL, and VDE standards.
Compact dimensions with length of 21 mm, height of 20 mm, depth of 15 mm, and lead pitch of 12.5 mm.
Termination style is PC pin with lead diameter of 0.6 mm.

Product Description

TDK B82731M2182A030 is a 3.3 mH Ferrite Power Line Choke designed specifically for effective suppression of common-mode interferences in electronic circuits. Constructed with a closed rectangular ferrite core and a two-section winding, this choke provides a high resonance frequency of 10 kHz, supporting compact switch-mode power applications such as power supplies and electronic ballasts in lamps.

The device supports a maximum DC current of 1.8 A with a DC resistance of 140 mΩ, operating reliably up to 125°C and a maximum voltage of 250 V AC. Its radial mount type lends itself to easy integration on printed circuit boards via PC pin termination style. The lead diameter is 0.6 mm with a pitch of 12.5 mm.

Physical dimensions include a length of 21 mm, height of 20 mm, and depth of 15 mm, suitable for compact electronic assemblies. The product features low leakage due to the closed core shape, low whirring noise, and high pulse strength, making it suited for industrial and commercial electronics requiring high electromagnetic interference suppression.

B82731M series chokes by TDK are RoHS and EN compliant, adhering to ENEC, IEC, UL, and VDE standards. Manufactured in Hungary, these inductors are supplied in box packaging for secure shipment.

Closed rectangular ferrite core with 2-section winding. Approximate 1% stray inductance ensuring symmetrical interference suppression. High resonance frequency of 10 kHz for effective noise filtering. Robust construction with polycarbonate coil former (UL 94 V-0) without encapsulation.

Suitable for wave soldering and industrial applications requiring EMI suppression. Compact dimensions and radial mounting style for efficient PCB assembly. Certified to multiple international standards ensuring quality and reliability.

This power line choke is ideal for integration in industrial, laboratory, and commercial electronic equipment, particularly in power supplies and lighting systems. Explore more electronic components and inductors on EnvMart for your design needs.
