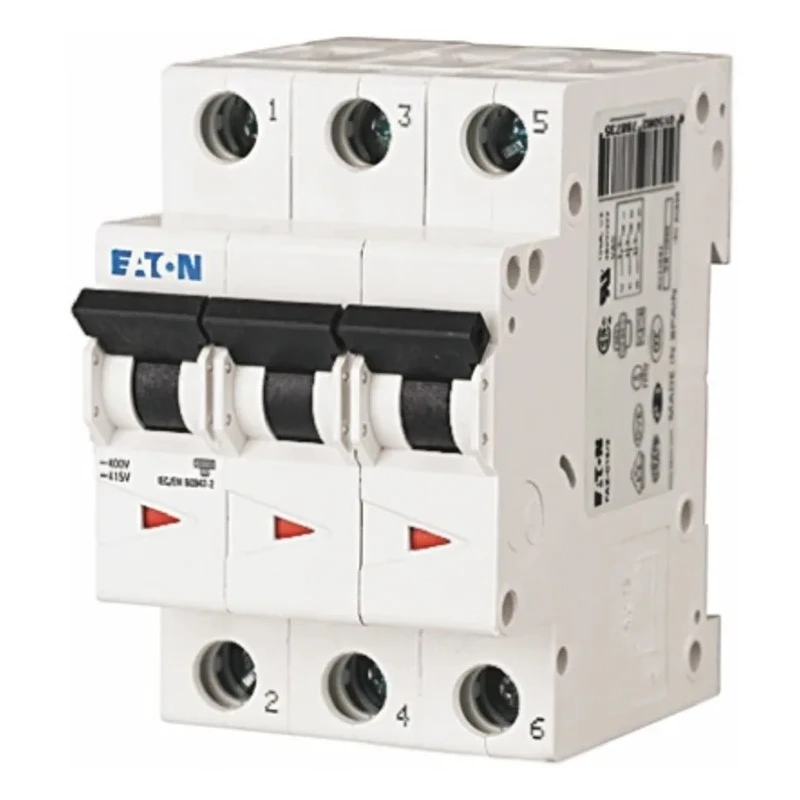

Eaton Miniature Circuit Breaker, 3-Pole, 50A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 50A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Features thermal-magnetic overcurrent protection for reliable circuit safety.
- Designed for DIN rail mounting with a compact module width of 52.5 mm for 3 poles.
- Provides fast short-circuit interruption reducing damage to circuits and equipment.
- Offers finger-proof safety and a trip-free mechanism to prevent tampering.
- Complies with standards EN 60898 and IEC, ensuring global quality and safety benchmarks.
- Equipped with a toggle switch reset actuator for quick and easy operation.
- Suitable for use in control circuits and electrical distribution boards in industrial and commercial environments.
- Rated for a breaking capacity of 6 kA and instantaneous break time to protect sensitive equipment.
Product Description
Eaton FAZ6 Miniature Circuit Breaker (MCB) model FAZ6 provides robust electrical protection with a 3-pole configuration rated at 50 amperes, Type C tripping characteristics, designed for 400V AC systems and a breaking capacity of 6 kA. This device offers thermal-magnetic protection ensuring both overload and short circuit protection within electrical distribution and control systems.
The compact design features a 62 mm depth and width of 17.5 mm per pole, resulting in a total MCB module width of 52.5 mm for the 3-pole model, facilitating space-efficient panel installation. The MCB is mounted on a DIN rail and includes a toggle switch actuator for easy reset and operation.
The FAZ6 series includes a fast-acting trip-free mechanism that prevents the breaker from being held in the ON position, providing enhanced safety. The miniature circuit breaker is finger-proof rated to protect operators from electrical shock hazards. Suitable for industrial, commercial, and residential power distribution systems, this MCB complies with EN 60898 and IEC international standards.
These miniature breakers provide instantaneous trip curves, suitable for circuits with moderate inrush currents typically encountered in motors and lighting systems. Their thermal and electromagnetic release mechanisms provide reliable performance for current ratings from 0.5 A to 63 A with switching capacities of either 6 kA or 10 kA depending on the model. The FAZ6 range also includes accessories such as busbars, interlocks, auxiliaries, and tripping modules.
Thermal-magnetic overcurrent protection limits damage to circuits and equipment. DIN rail mounting ensures universal compatibility in electrical panels. Compact design saves panel space with minimal module width per pole.
Trip-free mechanism prevents manual override enhancing operational safety. Finger-proof design ensures operator protection during installation and maintenance. Complies with EN 60898 and IEC standards for reliable use worldwide.
Suitable for industrial, commercial, and electrical distribution applications requiring up to 50A protection. Toggle switch actuator facilitates easy manual reset after trips.
This Eaton FAZ6 Miniature Circuit Breaker is an essential component in electrical systems requiring efficient, reliable, and safe current interruption capabilities to protect wiring and connected loads. Explore more Eaton circuit breakers and electrical protection devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 50A, making it suitable for various electrical distribution applications.
The Eaton FAZ6 has a breaking capacity of 6 kA, which helps protect circuits from overload and short circuits.
It features a thermal-magnetic tripping mechanism, providing both overload and short circuit protection.
This unit has a depth of 62 mm and a width of 17.5 mm per pole, resulting in a total module width of 52.5 mm for the 3-pole configuration.
Yes, this circuit breaker is designed for DIN rail mounting, ensuring compatibility with standard electrical panels.
The Eaton FAZ6 complies with EN 60898 and IEC standards, ensuring it meets global quality and safety benchmarks.
It is suitable for use in control circuits and electrical distribution boards in industrial and commercial environments.
This model has Type C tripping characteristics, which means it trips instantaneously when the current is 5 to 10 times the rated current.
Yes, it is equipped with a toggle switch reset actuator for quick and easy operation after a trip.
The Eaton FAZ6 has an IP20 rating, indicating it is protected against solid objects greater than 12.5 mm but not against water.
The trip-free mechanism prevents the breaker from being held in the ON position, enhancing safety by ensuring it trips when necessary.
This circuit breaker is manufactured in India, contributing to its availability in various markets.
