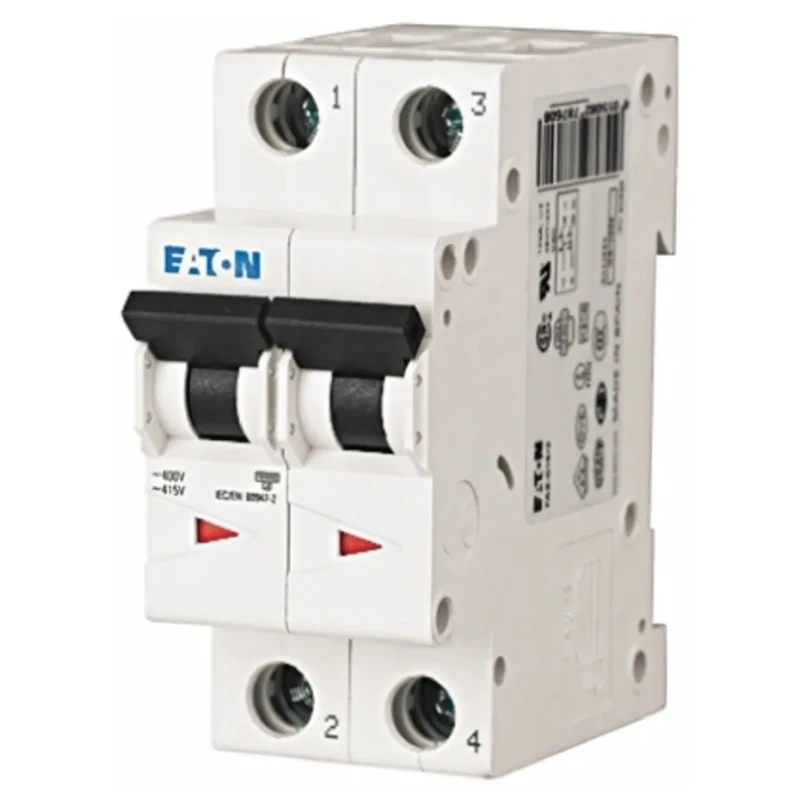

Eaton Miniature Circuit Breaker 2-Pole 13A Type C 400V AC 6 kA Breaking Capacity FAZ6

Free Delivery in India | Lowest Global Shipping Charges

Eaton Miniature Circuit Breaker 2-Pole 13A Type C 400V AC 6 kA Breaking Capacity FAZ6

Name: Eaton Miniature Circuit Breaker 2-Pole 13A Type C 400V AC 6 kA Breaking Capacity FAZ6
Brand: Eaton
SKU: 367300
Price: 80.11 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	FAZ6
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	13A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	EN 60898, IEC
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current
MCB Module widths	1P 17.5mm, 2P 35mm and 3P 52.5mm

Key Features

Offers thermal and electromagnetic trip mechanisms for rapid and safe circuit interruption.
Designed with a toggle switch for easy resetting and clear contact indication.
Fits onto DIN rails with a compact module width saving panel space.
Type C trip characteristics provide protection against short circuits of 5 to 10 times rated current.
IP20 rated housing ensures finger-safe operation and trip-free mechanism enhances safety.
Complies with EN 60898 and IEC standards for industrial use.
Supports dual feed from line or load side increasing installation flexibility.
Suitable for control circuits and electrical distribution board applications.

Product Description

Eaton FAZ6 Miniature Circuit Breaker 2-Pole 13A Type C is engineered for reliable overcurrent protection in industrial, commercial, and residential electrical distribution systems. Rated for 400V AC and a breaking capacity of 6 kA, this device ensures circuit integrity and protection against overloads and short circuits utilizing thermal-magnetic trip technology.

The breaker incorporates a robust toggle switch for manual operation with clear contact position indication. Its compact size, measuring 17.5mm per pole, allows efficient use of panel space, making it ideal for assembly on standard DIN rails. The IP20 finger-safe design enhances operator safety during installation and maintenance.

Designed within Eaton's xEffect range, the FAZ6 series supports a variety of trip characteristics, such as Type C which provides instantaneous trip between five and ten times the rated current, suitable for typical industrial and commercial applications including motor loads and lighting circuits.

The breaker cannot be held in the ON position when tripped, preventing accidental bypassing of its protection function. Installation is simplified by clear terminal guides and a three-position DIN rail mounting system.

The series complies with EN 60898 and IEC standards, assuring compliance with international safety and performance regulations. Available configurations range from single pole to four pole units, offering flexibility across differing electrical distribution requirements.

Thermal-magnetic dual trip mechanism provides fast and reliable overload and short circuit protection. Compact design with 17.5mm module width per pole saves panel space and reduces installation costs. Toggle switch enables easy reset and clear status indication.

Type C characteristic provides enhanced protection for inductive loads with 5 to 10 times instantaneous trip. IP20 rating ensures protection against contact with live parts enhancing user safety. Conforms to EN 60898 and IEC industrial standards assuring global compatibility.

Designed for simple DIN rail mounting and dual feed options from line or load side. Suitable for installations in industrial, laboratory, HVAC, manufacturing, and commercial environments. Set contains 1 Pc Eaton FAZ6 Miniature Circuit Breaker, 2-Pole, 13A, Type C, 400V AC, 6 kA Breaking Capacity.

Browse the Eaton category on EnvMart for more high-quality circuit protection products and accessories to meet your electrical installation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton FAZ6 Miniature Circuit Breaker has a breaking capacity of 6 kA.

This model is rated for 400V AC.

The Eaton FAZ6 is a 2-pole circuit breaker.

The Eaton FAZ6 features Type C tripping characteristics, which provide instantaneous trip between 5 to 10 times the rated current.

The width of this unit is 17.5mm per pole.

This model is designed for DIN rail mounting.

The Eaton FAZ6 has an IP20 rating, ensuring protection against contact with live parts.

The depth of this circuit breaker is 62mm.

The current rating for this circuit breaker is 13A.

This circuit breaker complies with EN 60898 and IEC standards.

The reset actuator for this model is a toggle switch, allowing for easy reset and clear status indication.

The Eaton FAZ6 is suitable for control circuits and electrical distribution board applications in industrial, commercial, and residential environments.
