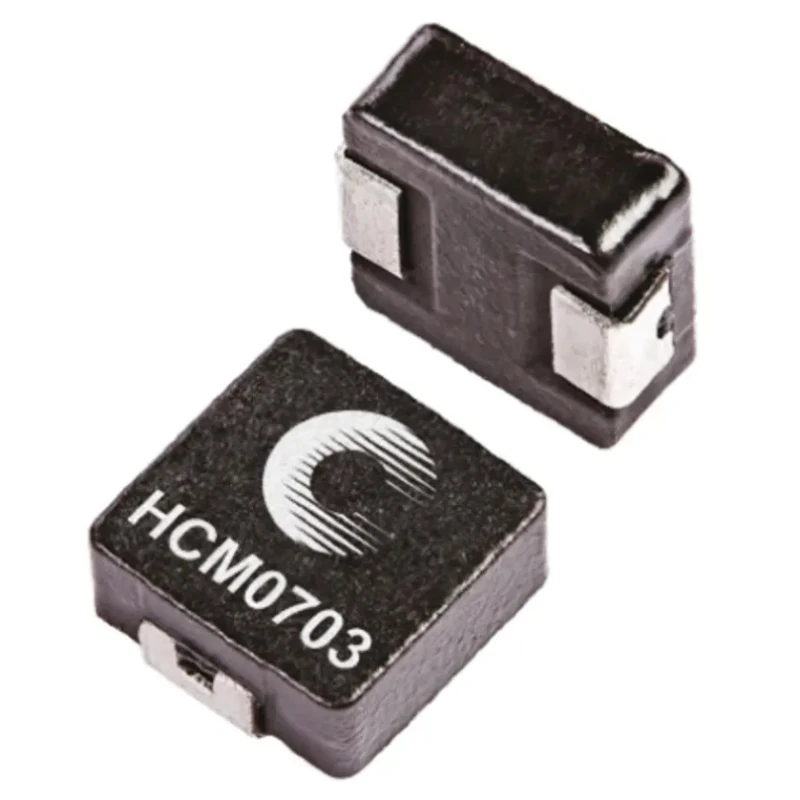

Eaton Shielded Wirewound Surface Mount Inductor 4.7 μH ±20% 10 A Idc Composite Iron Powder Core 0703 Package HCM0703

Eaton HCM0703-4R7-R shielded wirewound surface mount inductor is a high-performance electronic component designed for demanding industrial and commercial applications. Featuring a composite iron powder core, it delivers an inductance of 4.7 μH with a tolerance of ±20%, and supports a maximum DC current of 10 A. The 0703 package size (7.1 mm length x 3 mm height x 6.8 mm depth) enables compact PCB layout with surface mount termination suitable for automated assembly.

This inductor series is magnetically shielded to reduce electromagnetic interference, ensuring stable operation in electronic circuits. It is halogen-free and RoHS compliant, supporting environmentally responsible manufacturing.

Operating temperature ranges from -55°C up to 125°C, allowing reliable performance under varying thermal conditions. The wirewound construction provides robust inductive characteristics with low core losses, making it ideal for high efficiency power management systems.

Typical applications include voltage regulator modules (VRMs), multiphase regulators, point-of-load converters, desktop and server VRMs, battery power systems, graphics cards, data networking, and storage systems. The packaging on reels facilitates efficient placement during volume production.

Constructed with composite iron powder core for magnetic efficiency. Shielded design minimizes electromagnetic interference. Supports high current up to 10 amperes continuous DC. RoHS compliant ensuring environmental safety.

Compact 0703 case suitable for surface mounting on PCBs. Wide operating temperature from -55°C to +125°C. Wirewound construction ensures durability and performance. Halogen free and molded for safety and compliance. Ideal for power management and voltage regulation applications.

Available in reel packaging for automated manufacturing processes.

Choose this Eaton HCM0703-4R7-R inductor for applications demanding reliable and efficient power handling in industrial, computing, telecommunications, and automotive electronics. Explore more Inductors and electronic components at EnvMart to optimize your designs.
