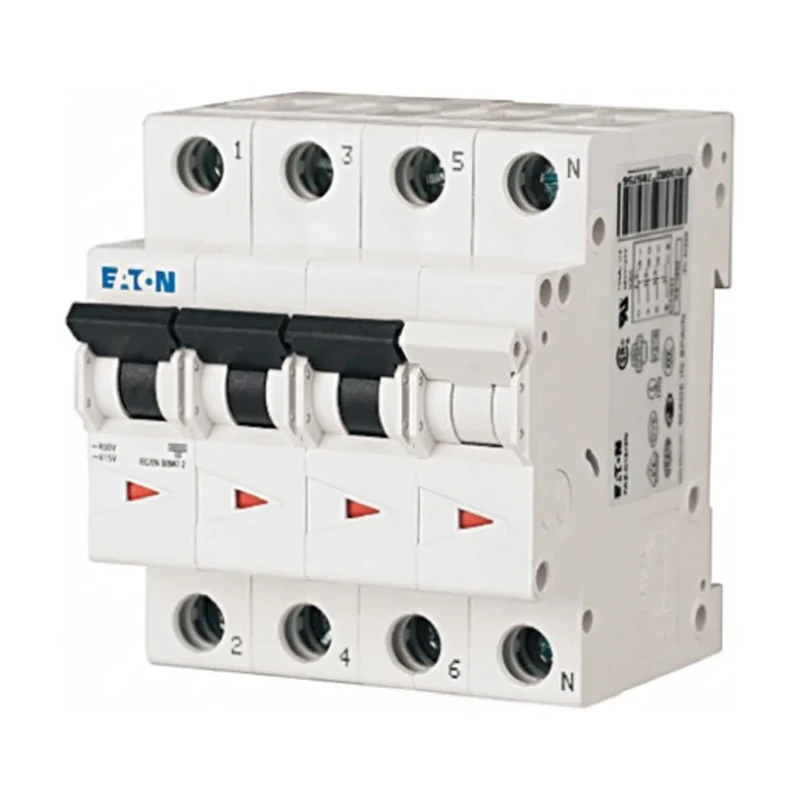

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 40A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker, 4-Pole, 40A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Name: Eaton xEffect Miniature Circuit Breaker, 4-Pole, 40A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Brand: Eaton
SKU: 367308
Price: 211.86 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	FAZ6
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	40A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC, EN 60898
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current
MCB Module widths	1P 17.5mm, 2P 35mm and 3P 52.5mm

Key Features

Features thermal-magnetic overcurrent protection for enhanced electrical safety.
Compact design with 17.5 mm module width per pole for optimized panel space.
Provides instantaneous trip at 5 to 10 times the rated current, suitable for control and distribution circuits.
Includes finger-proof trip-free mechanism that cannot be overridden by holding the switch ON.
Simple DIN rail mounting for quick and secure installation.
Complies with IEC and EN 60898 standards ensuring internationally recognized safety.
Equipped with a toggle switch that clearly indicates contact position.
Offers robust protection with a rated voltage of 400V AC and breaking capacity of 6 kA.

Product Description

Eaton FAZ6 Miniature Circuit Breaker (model FAZ6) is a 4-pole device designed for electrical control circuits and distribution boards requiring reliable overcurrent protection up to 40 amperes at 400V AC.

Part of Eaton's xEffect range, this MCB features thermal and electromagnetic release providing fast short-circuit interruption that limits electrical energy let-through and protects downstream equipment from overload damages.

The FAZ6 series ensures operator safety by incorporating a trip-free mechanism and finger-proof design, preventing manual override to hold the breaker ON against trip conditions.

With a compact width of 17.5 mm per pole, these breakers optimize space in electrical panels. The device mounts easily on DIN rails and includes secure terminal connection guides along with a clear toggle switch indicating ON/OFF status.

Standards compliance includes IEC and EN 60898, further assuring quality and international acceptance. Thermal-magnetic overcurrent protection for fast response. Compact modular design saves panel space. Trip-free mechanism enhances safety.

Easy DIN rail installation. Clear indication of contact position via front toggle switch. High breaking capacity of 6 kA at 400V AC. Type C tripping curve suitable for moderate inrush currents.

This Miniature Circuit Breaker is well suited for industrial, commercial electrical systems, manufacturing, automation control, HVAC electrical distribution, and general electrical protection applications.
