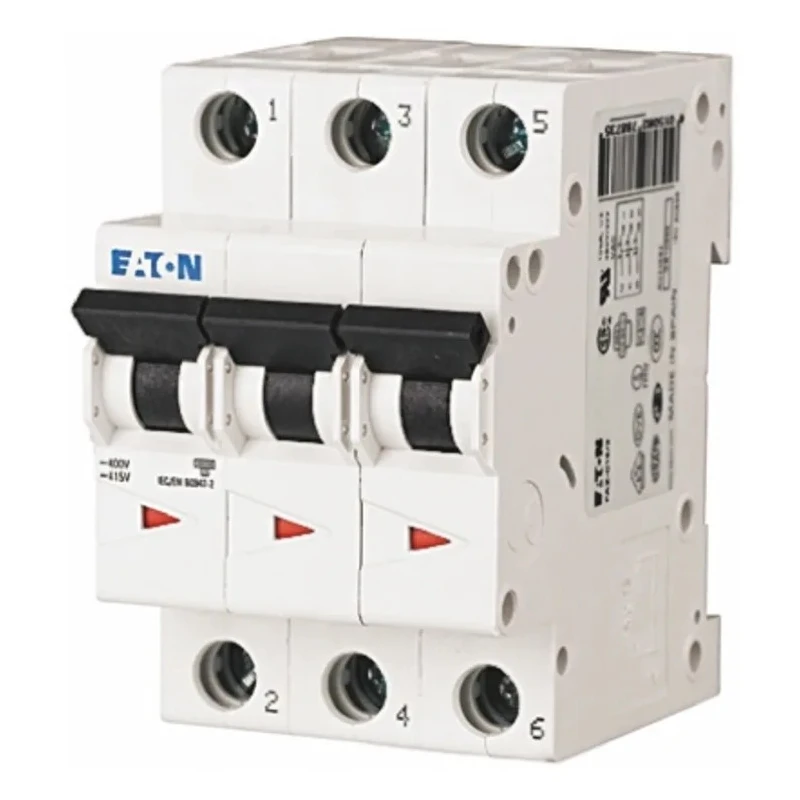

Eaton xEffect Miniature Circuit Breaker, 3-Pole, 3A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 3A |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- The circuit breaker provides a breaking capacity of 6 kA for effective short-circuit interruption.
- Designed with thermal and magnetic tripping mechanisms for fast overcurrent response.
- Mounts easily on DIN rails with a compact width of 17.5 mm per pole saving panel space.
- Features a finger-proof design with trip-free toggle switch for safety and prevention of handle defeat.
- Compliant with EN 60898 and IEC standards ensuring industrial-grade performance and reliability.
- Suitable for electrical distribution boards and control circuits offering protection against overload and short circuits.
Product Description
Eaton FAZ6 Miniature Circuit Breaker is a robust electrical protection device designed for industrial and commercial electrical distribution. It is a 3-pole MCB rated at 3A with a Type C thermal-magnetic trip curve, suitable for 400V AC systems with a breaking capacity of 6 kA. This ensures fast interruption of short circuits to protect circuits and connected equipment.
The device incorporates thermal and electromagnetic releases, providing sensitive protection for control circuits and distribution boards. The compact modular design includes a DIN rail mounting system and a narrow width of 17.5 mm per pole, enabling space-efficient installations.
The FAZ6 series features a trip-free mechanism which prevents the breaker from being manually held in the ON position, enhancing operational safety. The front toggle switch offers clear indication of contact position, and the device is finger-proof to reduce electrical hazards.
This Miniature Circuit Breaker complies with IEC 60898 and EN 60898 standards, confirming its suitability for industrial and similar installations. The product also meets additional regional standards guaranteeing dependable operation in various environments.
The circuit breaker features thermal-magnetic overcurrent protection with instantaneous trip characteristics compliant with Type C standards. It installs easily on DIN rails and fits tightly with a module width of only 17.5 mm per pole saving space within electrical panels.
The breaking capacity of 6 kA ensures effective protection against high fault currents in low voltage networks. Its compact depth of 62 mm facilitates installation in tight enclosure spaces without sacrificing performance.
The product includes comprehensive safety features such as finger-proof enclosure and trip-free toggle switch mechanism.
The Eaton xEffect FAZ6 MCB series is widely used in construction, industrial automation, manufacturing facilities, HVAC systems, water treatment plants, and commercial electrical installations for protecting electrical circuits and equipment from overloads and short circuits.
Choose Eaton FAZ6 series for reliable, space-saving circuit protection meeting international standards. Browse more circuit breaker solutions and accessories in the Electronics & Electricals category on EnvMart.
