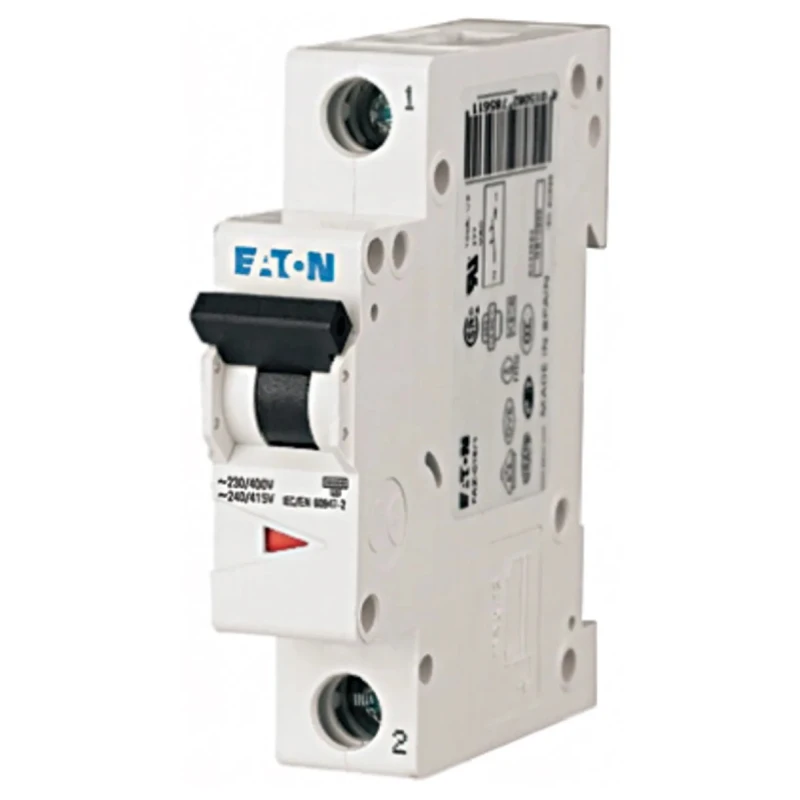

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 13A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Free Delivery in India | Lowest Global Shipping Charges

Eaton xEffect Miniature Circuit Breaker, 1-Pole, 13A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6

Name: Eaton xEffect Miniature Circuit Breaker, 1-Pole, 13A, Type C, 400V AC, 6 kA Breaking Capacity FAZ6
Brand: Eaton
SKU: 367291
Price: 38.09 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xEffect
Brand	Eaton
Model	FAZ6
Depth	62mm
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Current Rating	13A
Series	xEffect
Breaking Capacity	6kA
Number of Poles	1
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous
Type B	Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables
Type C	Instantaneous trip when the flow-through current is 5 to 10 times the rated current
Type D	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type K	Instantaneous trip when the flow-through current is 10 to 14 times the rated current
Type S	Instantaneous trip when the flow-through current is 13 to 17 times the rated current
Type Z	Instantaneous trip when the flow-through current is 2 to 3 times the rated current
MCB Module widths	1P 17.5mm, 2P 35mm and 3P 52.5mm

Key Features

Thermal-magnetic overcurrent protection ensures reliable circuit safety.
Rated for 400V AC voltage operation with a breaking capacity of 6 kA.
Compact DIN rail mount design with 17.5mm width per pole saves panel space.
Provides instantaneous trip preventing overload and short circuit damage.
Finger-proof and trip-free mechanism enhances operator safety and compliance.
Suitable for protecting control circuits and electrical distribution boards.
Easy reset toggle switch actuator for straightforward manual operation.
IP20 rated enclosure providing adequate protection in typical electrical environments.

Product Description

Eaton FAZ6 Miniature Circuit Breaker (model FAZ6) is a 1-pole device rated for 13A current, designed for protection in electrical control circuits and distribution boards. It features Type C tripping characteristics, making it suitable for applications needing instantaneous trips at 5 to 10 times the rated current. The circuit breaker operates at 400V AC with a breaking capacity of 6 kA, ensuring safe interruption of fault currents.

This MCB includes thermal-magnetic overcurrent protection with a trip-free mechanism that prevents holding the switch permanently ON, enhancing operational safety. The compact unit mounts easily on standard DIN rails and has a narrow profile width of 17.5 mm, which optimizes panel space usage.

The FAZ6 series offers robust construction with an IP20 rating for protection against electrical contact and environmental factors. Its toggle switch actuator allows easy manual reset post-trip events. Eaton’s xEffect range provides a comprehensive solution including interlocks and snap-on accessories to extend functionality.

Ideal for industrial, commercial, and residential electrical protection, this circuit breaker meets IEC 898 and EN60947-2 standards to ensure conformity and reliability under demanding operational conditions.

Thermal-magnetic overcurrent protection to prevent circuit overloads. Instantaneous trip characteristic Type C for 5 to 10 times rated current. Compact 17.5 mm width per pole for space-efficient panel installations. Finger-proof and trip-free mechanism to enhance operator safety.

Rated voltage of 400V AC and breaking capacity of 6 kA. Standard DIN rail mounting compatible with industry panels. IP20 enclosure rating for protection against accidental contact. Robust construction complying with IEC and EN standards.

Explore the Eaton xEffect series for dependable circuit protection components on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Eaton FAZ6 Miniature Circuit Breaker has a current rating of 13A.

This model has a breaking capacity of 6 kA, ensuring safe interruption of fault currents.

The rated AC voltage for this circuit breaker is 400V AC.

The FAZ6 features Type C tripping characteristics, which provide instantaneous trips at 5 to 10 times the rated current.

This unit has a width of 17.5 mm per pole, making it compact for space-efficient installations.

The FAZ6 is designed for standard DIN rail mounting, allowing for easy installation in electrical panels.

This circuit breaker has an IP20 rating, providing protection against accidental contact in typical electrical environments.

The FAZ6 utilizes a thermal-magnetic tripping mechanism to prevent circuit overloads.

The depth of this model is 62 mm.

This circuit breaker includes a toggle switch actuator for easy manual reset after a trip event.

The Eaton FAZ6 Miniature Circuit Breaker is manufactured in India.

This circuit breaker is suitable for protecting control circuits and electrical distribution boards in industrial, commercial, and residential settings.
