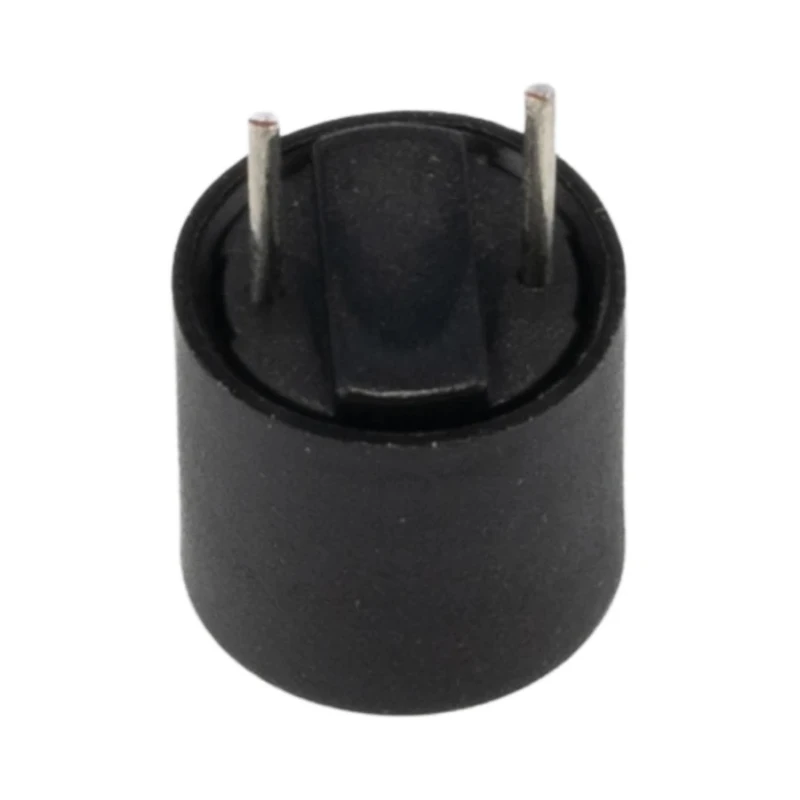

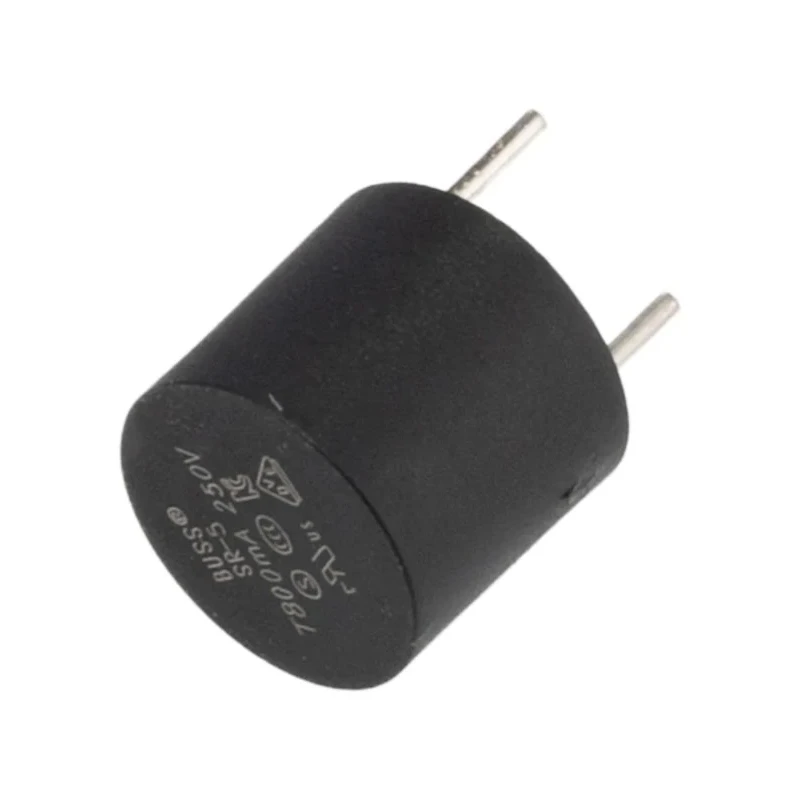

Eaton Radial Lead Time Delay Fuse 800mA 250V AC, 35A Breaking Capacity SR-5-800MA-BK

Free Delivery in India | Lowest Global Shipping Charges

Eaton Radial Lead Time Delay Fuse 800mA 250V AC, 35A Breaking Capacity SR-5-800MA-BK

Name: Eaton Radial Lead Time Delay Fuse 800mA 250V AC, 35A Breaking Capacity SR-5-800MA-BK
Brand: Eaton
SKU: 367238
Price: 0.79 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Diameter	8.5mm
Brand	Eaton
Height	7.6mm
Length	7.37mm
Model	SR-5-800MA-BK
Width	8.5mm
Current Rating	800mA
Series	SR5
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Lead Length	4.3mm
Breaking Capacity	35A
Lead Diameter	1mm
Fuse Characteristics	Time Delay
Lead Orientation	Radial

Key Features

Features a radial lead orientation with 1mm diameter for easy PCB mounting.
Compact cylindrical body with 8.5mm diameter and 7.37mm length for space-efficient design.
Operates reliably between -40°C and +125°C, suitable for varied environments.
Time-delay (T-speed) fuse characteristic permits acceptance of brief inrush currents.
Designed for AC mains applications with 250V rating and 800mA current limit.
Complies with IEC 60068-2-20, VDE, PSE, RoHS, and IEC 60127-3 standards for safety and quality.
Supports use in industrial control modules, small motors, relays, and consumer electronics.
Provides fault energy limitation to protect electrical and electronic equipment effectively.

Product Description

Eaton SR-5-800MA-BK is a radial lead time delay fuse rated at 800mA and 250V AC, designed for efficient overcurrent protection in electronic and electrical equipment. This fuse supports applications requiring tolerance of short transient surges, making it ideal for industrial automation and consumer electronics.

The fuse features a compact cylindrical form factor measuring 8.5mm in diameter and 7.37mm in length, with radial leads 1mm in diameter and 4.3mm in length that facilitate through-hole PCB mounting. It operates safely across a wide temperature range from -40°C to +125°C, ensuring reliable performance in challenging environments.

Its time-delay T-speed characteristic accepts initial inrush currents, preventing nuisance fuse operation during startup events. The 35A breaking capacity limits fault energy in short circuit conditions, helping to protect downstream components and equipment. The fuse meets stringent IEC 60068-2-20, VDE, PSE, RoHS, and IEC 60127-3 standards, confirming its quality and reliability.

This fuse series is applicable for power supplies with high inrush currents, industrial controls, automation boards, small motors, relays, and legacy electrical system repairs. Its radial lead construction simplifies installation and is suited for compact design implementations.

Features a radial lead orientation with 1mm diameter for easy PCB mounting. Compact cylindrical body with 8.5mm diameter and 7.37mm length for space-efficient design. Operates reliably between -40°C and +125°C, suitable for varied environments.

Time-delay (T-speed) fuse characteristic permits acceptance of brief inrush currents. Designed for AC mains applications with 250V rating and 800mA current limit. Complies with IEC 60068-2-20, VDE, PSE, RoHS, and IEC 60127-3 standards for safety and quality.

Supports use in industrial control modules, small motors, relays, and consumer electronics. Provides fault energy limitation to protect electrical and electronic equipment effectively. Explore EnvMart's comprehensive range of electrical protection components including Fuses and circuit breakers optimized for industrial and commercial use.
