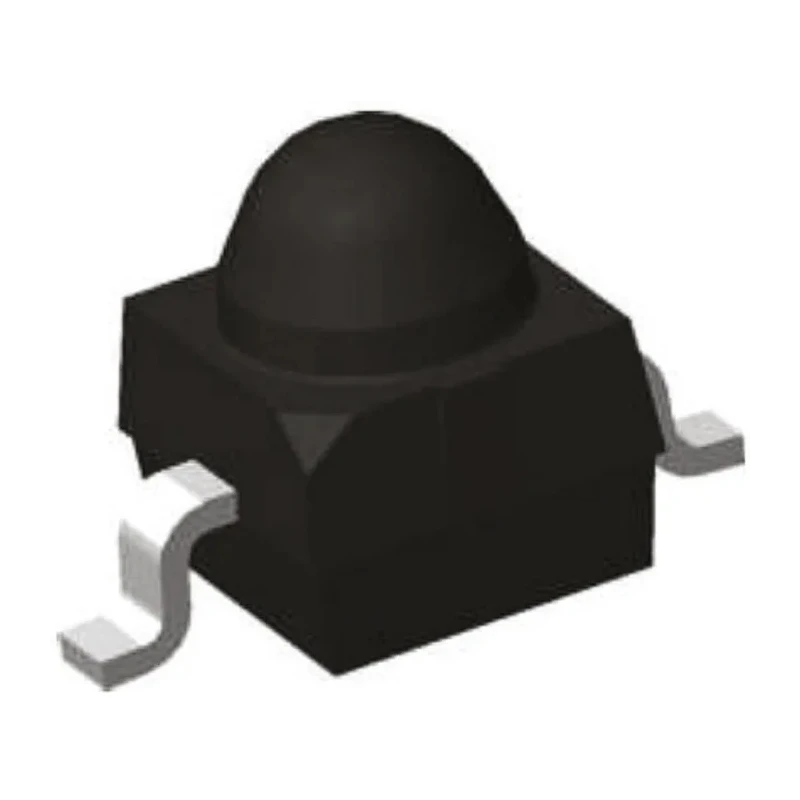

Vishay 870 nm Subminiature Surface Mount IR LED 55mW Radiant Flux Gull Wing Package VSMY2850G

Vishay VSMY2850G is a new subminiature surface mount infrared (IR) LED designed for high-speed infrared emission. Featuring a peak wavelength of 870 nm, it offers a radiant flux of 55 mW and radiant intensity of 850 mW/sr, making it suitable for precise IR applications.

The device employs a clear, untinted dome-shaped lens which enhances optical performance by efficiently directing light. Its small physical dimensions of 2.3 x 2.3 x 2.8 mm and compact gull wing (GW) lead configuration are optimized for automatic surface mount technology (SMT) processes on printed circuit boards.

This IR LED utilizes Gallium Aluminum Arsenide (GaAlAs) as the LED material, providing reliable and consistent infrared emission. It exhibits a beam angle of 20°, with a half intensity angle of 10°, delivering focused infrared light for applications such as IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switches, proximity sensors, IR touch panels, and IR illumination devices.

The product complies with JEDEC standards, ensuring quality and manufacturability for industrial, laboratory, and commercial electronics manufacturing. The packaging on tape and reel facilitates automated insertion and efficient production processes.

With 1 LED and 2 pins for electrical connection, this device is ideal for integration where small form factor, high reliability, and directed infrared emission are needed. The VSMY2850G model provides a practical solution for modern infrared optoelectronic requirements.

This IR LED features a clear dome-shaped lens for efficient light transmission. It provides a radiant flux of 55 mW and radiant intensity of 850 mW/sr. The package type is subminiature with a gull wing (GW) lead configuration for surface mounting.

The mounting surface type ensures compatibility with soldering techniques for PCB integration. Beam angle is designed at 20°, with an angle of half intensity of 10°, optimizing directional emission. Constructed using Gallium Aluminum Arsenide (GaAlAs) semiconductor material for infrared light emission.

It includes 1 LED and has 2 electrical pins facilitating electrical connection. Complies with JEDEC standards ensuring quality and consistency for industrial use. Package supplied on tape and reel enables automated assembly process efficiency.
