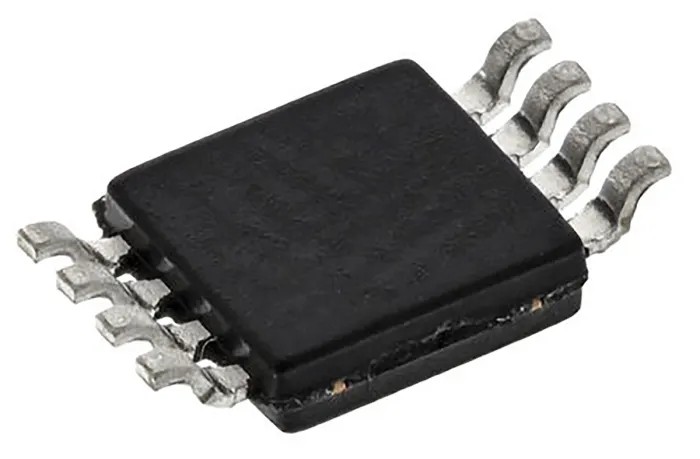

STMicroelectronics Operational Amplifier 5.5 MHz Gain Bandwidth, 8-Pin MSOP Package LMV822AIST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.95mm |
| Length | 3.2mm |
| Model | LMV822AIST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | LMV822A |
| Output Current | 5mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Shutdown Mode | 50 nA max |
| Power Supply Voltage | 2.5 V to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 120 nA |
| Vos - Input Offset Voltage | 0.8 mV |
| Slew Rate | 1.7V/μs |
| Input Offset Current | 30 nA |
| Low offset voltage | 0.8 mV max. (at 25°C) |
Key Features
- Operates with supply voltage from 2.5 V to 5.5 V.
- Low input bias current of 120 nA ensures high precision.
- Wide operating temperature range from -40°C to 125°C supports automotive applications.
- Offers low input offset voltage of 0.8 mV for accurate signal amplification.
- Includes shutdown mode with 50 nA max current consumption for power savings.
- Rail-to-rail output maximizes output voltage swing relative to the supply rails.
- Maximum output current of 5 mA suitable for a variety of load conditions.
- Certified to RoHS and automotive standard AEC-Q100 ensuring quality compliance.
Product Description
The STMicroelectronics LMV822AIST is a low power, high accuracy operational amplifier designed for general purpose amplification in electronic circuits. It delivers a gain bandwidth product of 5.5 MHz and is packaged in a compact 8-pin MSOP surface mount configuration. With supply voltages ranging from 2.5 V to 5.5 V, this device is well suited for battery-powered and automotive electronic applications.
Featuring a low input bias current of 120 nA and input offset voltage of 0.8 mV, it ensures precise amplification with minimal signal distortion. The device supports a wide operating temperature range from -40°C to 125°C, meeting the demands of harsh automotive environments, and complies with the automotive AEC-Q100 standard for reliability.
The LMV822AIST includes a low power shutdown mode consuming under 50 nA, making it ideal for energy-efficient designs. Its rail-to-rail output stage maximizes voltage swing close to the supply rails and supports a maximum output current of 5 mA across varying loads. The fast slew rate of 1.7 V/μs enables it to handle fast transient signals without significant distortion.
Dimensions of the package are compact, with a length of 3.2 mm, width of 3.1 mm, and height of 0.95 mm, making it suitable for space-constrained PCB layouts. The device is RoHS compliant, ensuring it meets environmental and safety standards.
This operational amplifier is ideal for industrial, automotive, and general-purpose electronic amplification applications, including signal conditioning, filtering, and sensor interfacing in embedded systems.
Operates at low voltages ideal for portable electronics. Supports automotive temperature and reliability standards. Compact MSOP package suitable for dense PCB assembly. Low power consumption with efficient shutdown mode.
High slew rate for fast, accurate signal processing. Explore more semiconductor Operational Amplifiers at EnvMart to find devices optimized for your specific industrial or automotive needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 5.5 MHz.
It operates with a supply voltage ranging from 2.5 V to 5.5 V.
The maximum output current is 5 mA, suitable for various load conditions.
The dimensions are 3.2 mm in length, 3.1 mm in width, and 0.95 mm in height.
The input bias current is 120 nA, ensuring high precision in amplification.
It supports a wide operating temperature range from -40°C to 125°C.
Yes, it includes a shutdown mode with a maximum current consumption of 50 nA.
The input offset voltage is 0.8 mV, providing accurate signal amplification.
It is packaged in a compact 8-pin MSOP surface mount configuration.
It is certified to the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The slew rate is 1.7 V/μs, allowing it to handle fast transient signals effectively.
Yes, it is RoHS compliant, meeting environmental and safety standards.
