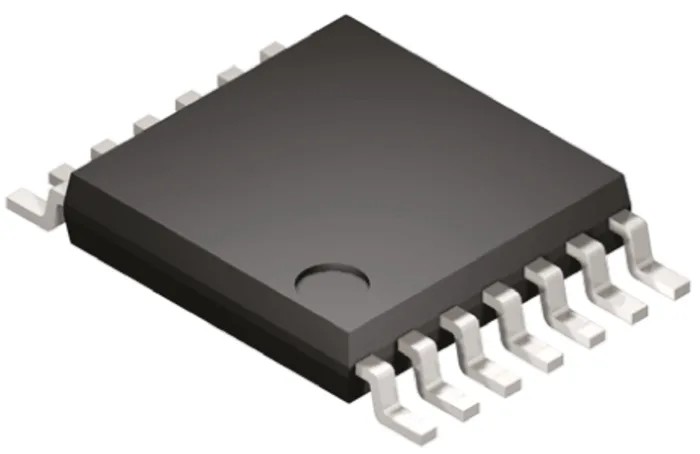

STMicroelectronics Low Power High Accuracy Operational Amplifier, 5.5 MHz Gain Bandwidth, 14-Pin TSSOP Package LMV824IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | LMV824IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LMV82xA |
| Output Current | 21mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Shutdown Mode | 50 nA max |
| Power Supply Voltage | 2.5 V to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 120 nA |
| Vos - Input Offset Voltage | 0.8 mV |
| Slew Rate | 1.7V/μs |
| Input Offset Current | 30 nA |
| Low offset voltage | 0.8 mV max. (at 25°C) |
Key Features
- Operates at low voltage supply range from 2.5 V to 5.5 V.
- Features low quiescent current consumption of 400 µA max at 5 V.
- Includes rail-to-rail output capability for full voltage swing.
- Industrial temperature range from -40°C to +125°C for robust applications.
- Low input offset voltage of 0.8 mV max at 25°C ensuring high accuracy.
- Low input bias current of 120 nA enhances precision circuitry stability.
- High ESD tolerance and automotive qualification with AEC-Q100 standard compliance.
- Shutdown mode with extremely low current consumption of 50 nA max.
Product Description
STMicroelectronics LMV824IPT is a quad-channel operational amplifier designed for low power and high accuracy applications. This device features a gain bandwidth product of 5.5 MHz while operating efficiently within a supply voltage range from 2.5 V to 5.5 V. The TSSOP 14-pin package offers a compact footprint with dimensions of 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The amplifier is suitable for automotive and industrial electronics due to its wide operating temperature range from -40°C up to 125°C and compliance with the AEC-Q100 standard. The low offset voltage of 0.8 mV max and low input bias current of 120 nA enable precision signal conditioning and filtering in sensor interfaces and analog front ends.
The device also supports rail-to-rail output operation allowing effective use in low voltage single supply designs. It has a maximum output current of 21 mA and a slew rate of 1.7 V per microsecond, which suits moderate frequency analog signal processing tasks.
In shutdown mode, the amplifier draws an ultra-low current of 50 nA, making it ideal for battery-powered and portable instrumentation systems.
This Operational Amplifier is well-suited for electronic circuit design in industrial, automotive, instrumentation, communication, and consumer electronics sectors requiring reliable and precise analog amplification.
Stable operation over a wide temperature range and supply voltage variations. Reduces power consumption without compromising signal accuracy. 4 channels integrated in one compact package for space-saving designs. Meets RoHS standards for environmental compliance.
Versatile applications including sensor signal conditioning, analog computation, and filtering. Explore more high-quality semiconductor amplifiers and related components in our Electronics & Electricals category for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 5.5 MHz.
It operates efficiently within a supply voltage range from 2.5 V to 5.5 V.
This operational amplifier features four channels integrated into one compact package.
The maximum output current is 21 mA.
The input offset voltage is 0.8 mV max at 25°C, ensuring high accuracy.
It has an operating temperature range from -40°C to 125°C, suitable for robust applications.
The slew rate is 1.7 V per microsecond.
It is packaged in a 14-pin TSSOP format.
Yes, it includes rail-to-rail output capability for full voltage swing.
In shutdown mode, it consumes a maximum of 50 nA.
It complies with the AEC-Q100 automotive standard.
The input bias current is 120 nA, which enhances precision circuitry stability.
