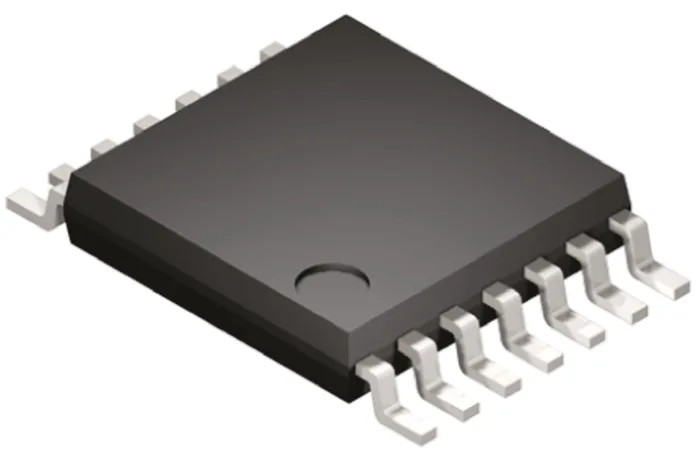

STMicroelectronics Operational Amplifier 5.5 MHz, 14-Pin TSSOP, 5.5V LMV824IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | LMV824IPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LMV82xA |
| Output Current | 21mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Shutdown Mode | 50 nA max |
| Power Supply Voltage | 2.5 V to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 5.5MHz |
| Input Bias Current | 120 nA |
| Vos - Input Offset Voltage | 0.8 mV |
| Slew Rate | 1.7V/μs |
| Input Offset Current | 30 nA |
| Low offset voltage | 0.8 mV max. (at 25°C) |
Key Features
- The device supports a gain bandwidth product of 5.5 MHz for signal processing.
- It comes in a 14-Pin TSSOP surface mount package ensuring compact mounting.
- Operates over a wide supply voltage range from 2.5 V to 5.5 V with low input bias currents.
- Features rail-to-rail output and low offset voltage of 0.8 mV for precise amplification.
- Provides four independent amplifier channels suitable for multi-channel designs.
- Qualified for automotive applications with compliance to AEC-Q100 standard.
- Has a wide operating temperature range from -40°C to 125°C for harsh environments.
- Offers ultra-low power shutdown mode with current consumption of 50 nA max.
Product Description
STMicroelectronics LMV824IPT Operational Amplifier is a high-accuracy, low-power amplifier designed to operate efficiently at low voltages between 2.5 V and 5.5 V. This 14-pin TSSOP packaged device combines four amplifier channels with a gain bandwidth product of 5.5 MHz, suitable for general-purpose amplification needs in diverse industrial and automotive applications.
With rail-to-rail output capability and input offset voltage as low as 0.8 mV, LMV824IPT ensures signal integrity and precision. It features a slew rate of 1.7 V/μs and low input bias current of 120 nA, offering high performance even in sensitive signal environments.
This operational amplifier is qualified to meet the automotive standard AEC-Q100 and operates reliably across a temperature range from -40°C to 125°C. Its shutdown mode reduces power consumption to a minimal 50 nA, enhancing battery life in portable and automotive designs.
The amplifier delivers an output current of up to 21 mA, ensuring compatibility with various signal conditioning loads. The compact TSSOP surface mount package (5.1 mm length, 4.5 mm width, 1.05 mm height) helps conserve PCB space in complex circuit designs.
Applications include automotive signal processing, battery-powered instrumentation, sensor interfaces, and low-voltage measurement systems. This device supports demanding environmental conditions common in industrial and automotive electronics.
The product features low voltage operation from 2.5 V to 5.5 V supply. It is designed for automotive-grade use with AEC-Q100 certification. Ultra-low-power shutdown mode conserves energy. Capable of handling four separate amplifier channels for versatile circuit designs.
Compact TSSOP-14 packaging facilitates surface mounting and space saving. Offers low input offset voltage and high slew rate for accurate signal amplification. Explore the range of semiconductor Operational Amplifiers at EnvMart to find optimal solutions for your industrial, automotive, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 5.5 MHz, making it suitable for signal processing applications.
It operates over a wide supply voltage range from 2.5 V to 5.5 V.
This model features four independent amplifier channels, allowing for versatile circuit designs.
The LMV824IPT can deliver an output current of up to 21 mA, ensuring compatibility with various loads.
The input offset voltage is as low as 0.8 mV, providing precise amplification.
It operates reliably across a temperature range from -40°C to 125°C, suitable for harsh environments.
The shutdown mode current consumption is a minimal 50 nA max, enhancing energy efficiency.
The dimensions of the TSSOP package are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The slew rate for this operational amplifier is 1.7 V/μs, which is beneficial for fast signal changes.
Yes, it is qualified to meet the automotive standard AEC-Q100, making it suitable for automotive use.
The input bias current is 120 nA, which is relatively low, ensuring minimal signal distortion.
This operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
