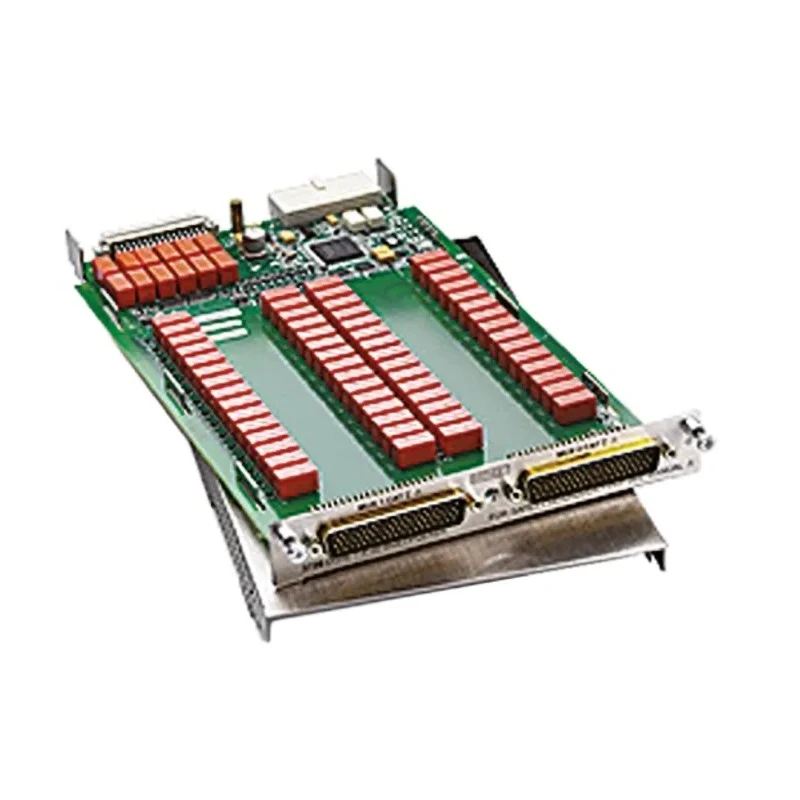

Tektronix Data Acquisition Coupler Accessory for 3700A Series Multiplexer Card 3720
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | 3720 |
| Accessory Type | Multiplexer Card |
| For Use With | 3700A Series |
Key Features
- Offers 2 independent banks of 1x30 two-pole multiplexers for general purpose switching.
- Supports analog backplane connection relays for easy bank and card interconnections.
- Configurable as a single 1x60 two-pole multiplexer or expandable for larger configurations.
- Capable of coordinated four-pole operation for complex switching needs.
- Supports 300V, 1A switched or 2A carry signal capacity with 60W, 125VA relay ratings.
- Uses latching electromechanical relays ensuring reliable switching.
- Relay closures are stored in onboard memory for efficient operation.
- Fabricated for industrial, laboratory, and test measurement applications.
Product Description
Tektronix 3720 Data Acquisition Coupler is an accessory designed specifically for the 3700A Series Multiplexer Card, providing versatile switching solutions for data acquisition systems. This unit offers two independent banks of 1x30 two-pole multiplexers, suitable for general purpose switching tasks including precise temperature measurements.
The coupler's analog backplane connection relays facilitate seamless bank and card interconnections, enabling the mainframe to reconfigure the system flexibly. Users can reconfigure it into a single 1x60 two-pole multiplexer or scale up through card-to-card expansion for larger system implementations.
Additionally, the 3720 supports coordinated four-pole operation, catering to complex switching requirements in test and measurement environments. It supports a switched voltage of up to 300V, switched current of 1A, and carry current of 2A. The relay ratings include 60 watts and 125 volt-amperes.
Equipped with reliable latching electromechanical relays, the device ensures consistent and durable operation. Relay closures are stored in onboard memory, enhancing performance and system efficiency.
This accessory is ideal for industrial applications, laboratory measurements, HVAC systems, manufacturing testing, and water treatment monitoring where precise data acquisition configurations are essential.
Originating from China, the Tektronix 3720 is constructed to meet demanding operational standards, though no specific certifications are listed. Offers 2 banks of 1x30 two-pole multiplexers for versatile switching. Supports card reconfiguration and expansion for scalability.
Rated for 300V voltage and 1A switched current capacity. Features latching electromechanical relays for durability. Relay state stored in onboard memory to optimize usage. Applicable in industrial, laboratory, and test and measurement fields.
Discover this high-quality data acquisition accessory and explore more Tektronix products and industrial measurement solutions on EnvMart.
Explore more products in our Data Acquisition Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix 3720 offers two independent banks of 1x30 two-pole multiplexers, which can be configured as a single 1x60 two-pole multiplexer or expanded for larger configurations.
This unit supports a maximum switched voltage of 300V and a switched current capacity of 1A, with a carry current of 2A.
It utilizes latching electromechanical relays, which provide consistent and durable operation for switching tasks.
The 3720 is suitable for industrial applications, laboratory measurements, HVAC systems, manufacturing testing, and water treatment monitoring.
Yes, it is designed for use with the 3700A Series Multiplexer Card, allowing for flexible configurations and expansions.
Relay closures are stored in onboard memory, optimizing performance and system efficiency during operation.
The Tektronix 3720 is manufactured in China.
The relay ratings for this model include 60 watts and 125 volt-amperes.
It includes two banks of 1x30 two-pole multiplexers, providing a total of 60 channels for switching.
It uses latching electromechanical relays, which are designed to ensure reliable switching operations.
Yes, it can be expanded through card-to-card configurations for larger system implementations.
Key features include independent banks of multiplexers, analog backplane connection relays, and support for coordinated four-pole operation.
