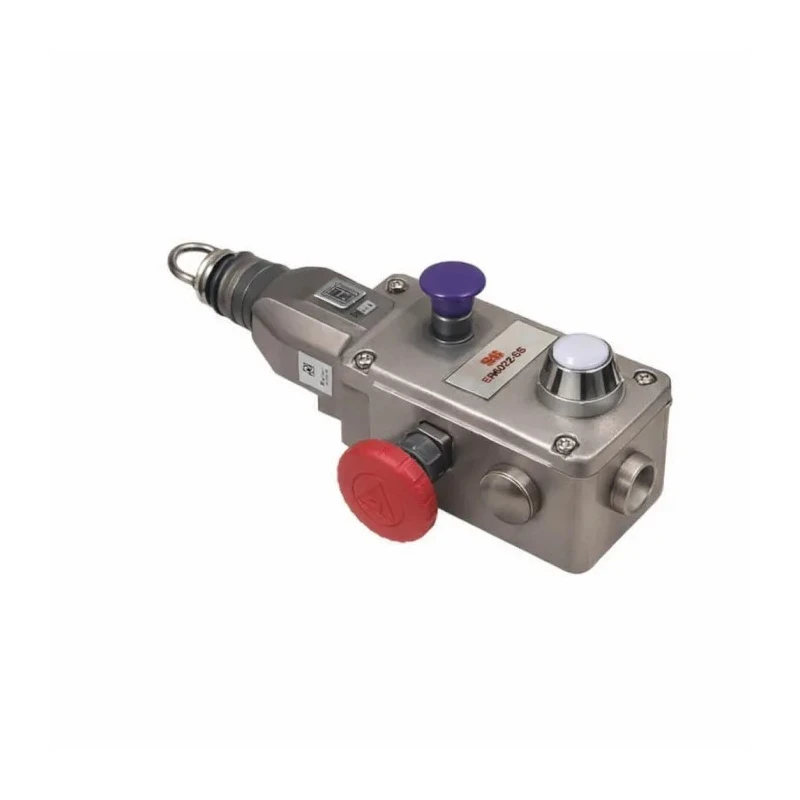

Omron ER Rope Pull Switch 239 mm Length, Straight Mounting, 2 NO/2 NC Contacts, IP67, Die Cast 44506-5810 ER6022-022MSS

Free Delivery in India | Lowest Global Shipping Charges

Omron ER Rope Pull Switch 239 mm Length, Straight Mounting, 2 NO/2 NC Contacts, IP67, Die Cast 44506-5810 ER6022-022MSS

Name: Omron ER Rope Pull Switch 239 mm Length, Straight Mounting, 2 NO/2 NC Contacts, IP67, Die Cast 44506-5810 ER6022-022MSS
Brand: Omron
SKU: 364632
Price: 905.76 USD
Availability: InStock



Category Rope Pull Switch Brand Omron Condition New

Specifications

Country of Origin	United Kingdom
Brand	Omron
Length	239mm
Model	44506-5810 ER6022-022MSS
Depth	86mm
IP Rating	IP67
Width	96mm
Housing Material	Die Cast Aluminium
Series	ER
Maximum Operating Temperature	80°C
Mounting Orientation	Straight
Indicator Type	Rope Tension
Contact Configuration	2 NO/2 NC
Minimum Operating Temperature	-25°C
Contact DC Voltage	24V dc
Mechanical Life	1000000Operations
Contact AC Voltage	240V ac
Contact Current	6A
Conduit Entry	M20

Key Features

Robust die cast aluminium housing ensures long-lasting durability.
Contact configuration includes 2 Normally Open and 2 Normally Closed contacts for versatile wiring.
IP67 rated enclosure offers excellent protection against dust and water ingress.
Equipped with a visible rope tension indicator for quick status checks.
Operates reliably between -25°C and 80°C ambient temperature range.
Incorporates a manual reset button and emergency stop button for safety compliance.
Supports electrical switching at 24 V DC and 6 A contact current rating.
Mechanical life rated for 1,000,000 operations, reducing maintenance frequency.

Product Description

Omron 44506-5810 ER6022-022MSS rope pull switch is designed for industrial safety systems requiring accessible manual emergency stop lines. The 239 mm length unit mounts straight and features a die cast aluminium housing for robust mechanical protection. The high ingress protection rating of IP67 ensures reliable operation in harsh industrial environments, protecting against dust and water ingress.

This rope pull switch includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, suitable for versatile wiring configurations in low-voltage control circuits rated at 24 V DC and 6 A current. It features a visible rope tension indicator, enabling operators to easily monitor the status of the safety rope to prevent system faults.

Operational temperature range spans from -25°C to 80°C, allowing installation in cold storage rooms and warm industrial environments. The unit integrates a manual reset button and emergency stop button, allowing safe restoration of normal operation after actuation. The conduit entry is M20, facilitating straightforward cable gland installation and secure wiring connection.

With a mechanical life expectancy of up to 1,000,000 operations, this switch minimizes downtime and replacement needs. It is ideally suited for conveyor line emergency-stop circuits, perimeter safety in material handling applications, production lines requiring rope tension monitoring, and long-run safety lines in warehouses.

Robust IP67 rated enclosure protects against dust and water. Die cast aluminium housing offers rugged mechanical protection. 2 NO / 2 NC contact configuration supports flexible wiring options. Visible rope tension indicator enhances operational safety monitoring.

Wide operating temperature range from -25°C to 80°C. Includes manual reset and emergency stop buttons for safety compliance. M20 conduit entry simplifies cable management and installation. Mechanical life rated for 1,000,000 operations ensures durability.

This Omron rope pull switch combines safety, reliability, and durability for industrial automation and material handling environments. For more options, browse the Rope Pull Switch category on EnvMart for high-quality safety switch solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a contact configuration of 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, allowing for versatile wiring options in control circuits.

It operates reliably within a temperature range of -25°C to 80°C, making it suitable for various industrial environments.

The rope pull switch has an IP67 rating, providing excellent protection against dust and water ingress.

This model is rated for a mechanical life of up to 1,000,000 operations, which helps reduce maintenance frequency.

It supports electrical switching at 24 V DC and has a contact current rating of 6 A.

The housing is made of die cast aluminium, providing robust mechanical protection.

This model is designed for straight mounting, facilitating easy installation.

It is equipped with a visible rope tension indicator, allowing operators to monitor the status of the safety rope easily.

The switch features an M20 conduit entry, which simplifies cable management and installation.

Yes, it incorporates a manual reset button and an emergency stop button for safety compliance.

The country of origin for this switch is the United Kingdom.

It is ideally suited for conveyor line emergency-stop circuits, perimeter safety in material handling applications, and production lines requiring rope tension monitoring.
