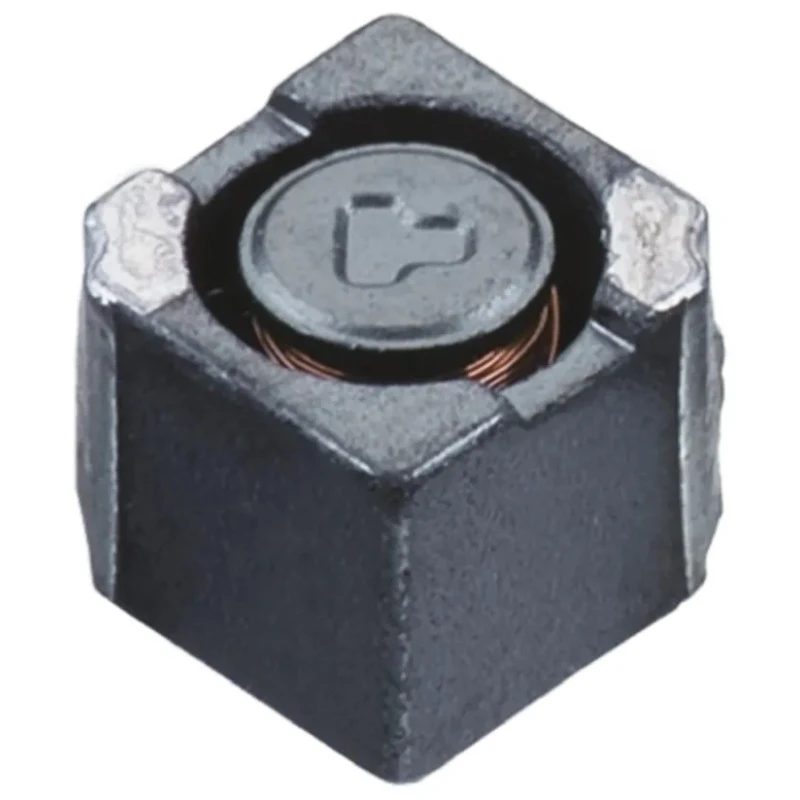

Wurth Elektronik WE-SPC 4838 Shielded Wirewound Surface Mount Inductor with Ferrite Core 15μH ±20% 1.4A Idc 74408943150
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.8mm |
| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-SPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Package/Case | 4838 |
| Maximum DC Current | 1.4A |
| Pin Count | 2 |
| Maximum DC Resistance | 136mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 22MHz |
| Inductor Construction | Wirewound |
Key Features
- This surface mount inductor features a ferrite core for magnetic shielding.
- The device supports a maximum operating temperature of 125°C.
- It has low DC resistance of 136mΩ for efficient performance.
- Package case is 4838 with dimensions length 4.8mm, height 3.8mm, and depth 4.8mm.
- The inductor has a self-resonant frequency of up to 22MHz.
- It comes in tape and reel packaging suitable for automated assembly.
- The product is RoHS, REACH, and JEDEC JS709B compliant ensuring regulatory adherence.
- Intended for applications in portable power devices, DC/DC converters, smartphones, and digital cameras.
Product Description
Wurth Elektronik 74408943150 is a WE-SPC series shielded wirewound surface mount inductor with a ferrite core designed for compact and efficient electromagnetic performance. It offers an inductance of 15μH with a tolerance of ±20% and can handle a maximum DC current of 1.4A, making it suitable for various electronic applications.
This inductor is constructed using wirewound technology with a ferrite core that provides excellent magnetic shielding, reducing leakage fields. The 4838 package provides a compact form factor with dimensions of 4.8mm length, 3.8mm height, and 4.8mm depth, enabling integration within space-constrained circuits.
The inductor features low DC resistance of 136mΩ and a high self-resonant frequency of 22MHz, supporting high-frequency switching circuits. It is suitable for reflow soldering processes and is supplied in tape and reel packaging to enhance manufacturing efficiency through automated insertion machines.
Compliant with RoHS, REACH, and JEDEC JS709B standards, this component ensures reliability and environmental safety. Typical industrial applications include portable power devices, DC/DC converters, PCMCIA cards, smartphones, PDAs, and digital cameras, addressing the needs of both consumer and professional electronic product designs.
This surface mount inductor features a ferrite core for magnetic shielding. The device supports a maximum operating temperature of 125°C. It has low DC resistance of 136mΩ for efficient performance. Package case is 4838 with dimensions length 4.8mm, height 3.8mm, and depth 4.8mm.
The inductor has a self-resonant frequency of up to 22MHz. It comes in tape and reel packaging suitable for automated assembly. The product is RoHS, REACH, and JEDEC JS709B compliant ensuring regulatory adherence. Intended for applications in portable power devices, DC/DC converters, smartphones, and digital cameras.
Explore more high-quality inductors and surface mount components on EnvMart to support your electronic and industrial projects.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 15μH with a tolerance of ±20%.
This inductor can handle a maximum DC current of 1.4A.
The dimensions of the 4838 package case are 4.8mm in length, 3.8mm in height, and 4.8mm in depth.
The maximum operating temperature for this unit is 125°C.
It has a self-resonant frequency of up to 22MHz.
This inductor uses a ferrite core material for magnetic shielding.
The DC resistance of this model is 136mΩ.
It comes in tape and reel packaging, which is suitable for automated assembly.
This inductor is compliant with RoHS, REACH, and JEDEC JS709B standards.
It is intended for use in portable power devices, DC/DC converters, smartphones, and digital cameras.
The termination style of this inductor is surface mount.
This inductor is constructed using wirewound technology.
