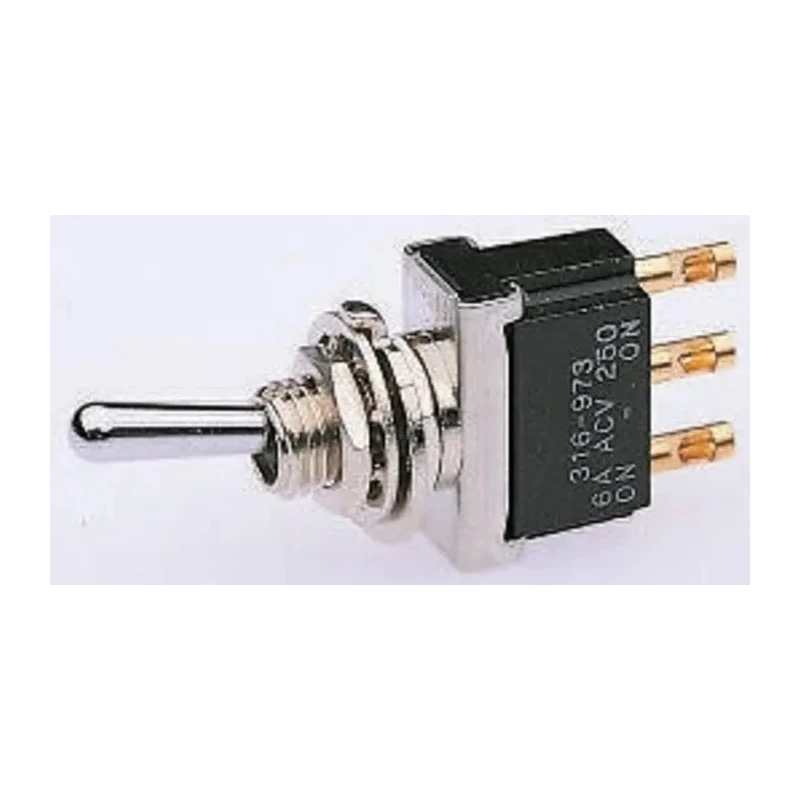

TE Connectivity Panel Mount Toggle Switch On-On SPDT Solder Terminal 250 V AC 5-6437630-7

TE Connectivity 5-6437630-7 Panel Mount Toggle Switch is a robust and precise electrical switch designed for industrial and instrumentation applications requiring light to medium duty switching.

This toggle switch features an On-On SPDT (Single Pole Double Throw) contact configuration with solder terminal connections, rated to handle a contact current of 6 amperes at an AC voltage of 250 V.

The switch is mounted via a standard panel cutout (6.2 mm) utilizing an M6 x 0.75 mm threaded bushing for secure installation on control panels and equipment enclosures.

The actuator is constructed of chrome plated brass and extends 10.5 mm for easy toggle action. The switch dimensions provide a compact footprint with a length of 14.8 mm, width of 8 mm, and height of 10.5 mm, facilitating integration into tight panel spaces.

Designed to perform reliably within a temperature range of -20°C to 70°C, this switch offers mechanical durability rated at 50,000 operating cycles, assuring long service life in demanding environments.

The contacts are made of silver plated copper alloy, providing excellent electrical conductivity and corrosion resistance, enhancing the overall reliability of the switch.

This model is non-illuminated, focusing on essential switching functionality without indicator lighting, making it ideal for a variety of industrial, laboratory, and instrumentation control uses where straightforward switching is needed.

The product complies with RoHS directives, meeting environmental and safety standards. Designed for reliable panel mounting with standard bushing dimensions. Single Pole Double Throw configuration allows for versatile switching tasks.

High-quality silver plated contacts ensure consistent performance. Robust mechanical life supports extensive use in industrial applications. Wide operating temperature range for various environmental conditions.

This Toggle Switch is suitable for use in electrical control panels, instrumentation devices, automation equipment, and medical devices requiring precise and durable switching components.

For further design and integration, 3D models, schematics, and datasheets are available to assist engineers and designers in application development. Explore more quality switches and related components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
