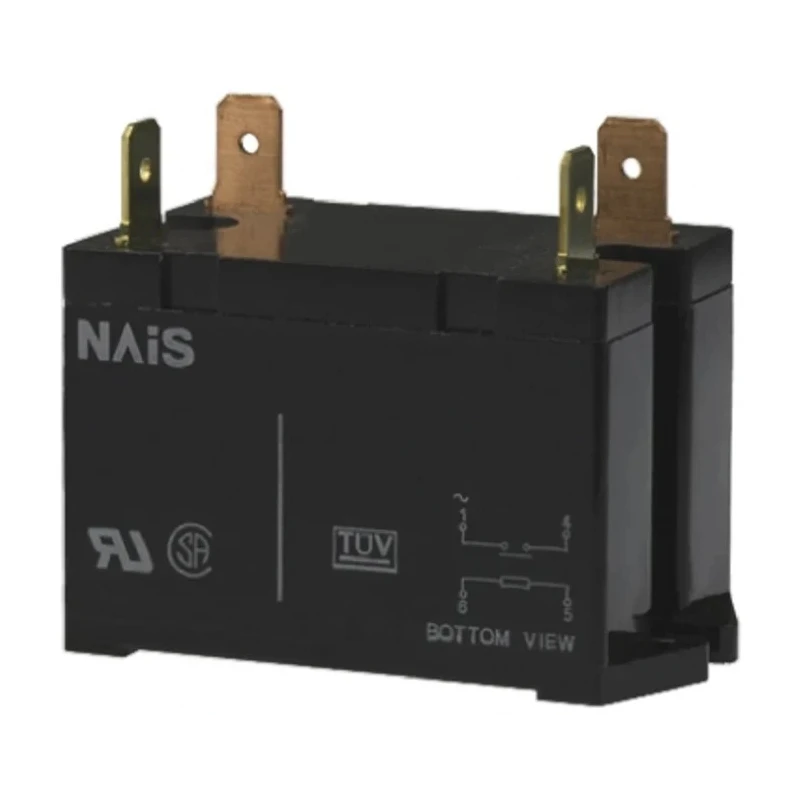

Panasonic Plug-in Power Relay, 24V DC Coil, 25A Switching Current, DPST HE2AN-DC24V

Panasonic HE2AN-DC24V plug-in power relay offers high capacity and durability for effective electrical switching tasks. Equipped with a 24V DC coil and a robust 25A switching current, this DPST relay ensures efficient control in demanding industrial environments.

The relay features a plug-in mount type and plug-in terminals for effortless PCB integration, facilitating quick installation and replacement. Its coil resistance of 300 ohms and power consumption at 1.92W contribute to energy-efficient operation.

Engineered to operate reliably across temperatures from -50°C to 55°C, it suits a wide range of industrial and commercial applications. The silver alloy contacts provide low resistance (100 mΩ), reducing power losses and enhancing performance.

With the capability to switch up to 277 volts AC and 30 volts DC and a switching power of 6.9 kVA, it handles high-load scenarios effectively. Dimensions of 50mm length, 35mm height, and 33mm width make it suitable for compact equipment setups.

Certified by VDE, UL, and CSA, the HE2AN-DC24V complies with rigorous safety and quality standards, ensuring dependable operation in critical systems. Typical applications include machine tools, moulding equipment, air conditioning systems, and heating units, demonstrating versatility across industrial sectors.

This new condition product is manufactured in the United Kingdom, reflecting quality European engineering standards. Features a DPST contact configuration for dual pole, single throw operations. Designed for plug-in mounting with plug-in terminals for easy PCB integration.

Operates within a wide temperature range from -50°C to 55°C for versatile use. Has a coil resistance of 300 ohms and coil power consumption of 1.92W for efficient operation. Constructed with silver alloy contacts to ensure low contact resistance of 100 mΩ.

Supports switching voltages up to 277V AC and 30V DC with a switching power of 6.9 kVA. Dimensions are compact at 50mm length, 35mm height, and 33mm width for space-saving designs. Approved by safety certifications including VDE, UL, and CSA for industrial reliability.

Ideal for applications such as machine tools, moulding equipment, air conditioners, and heating equipment. Explore more Panasonic relays and Power Relays at EnvMart for diverse industrial and electrical solutions.
