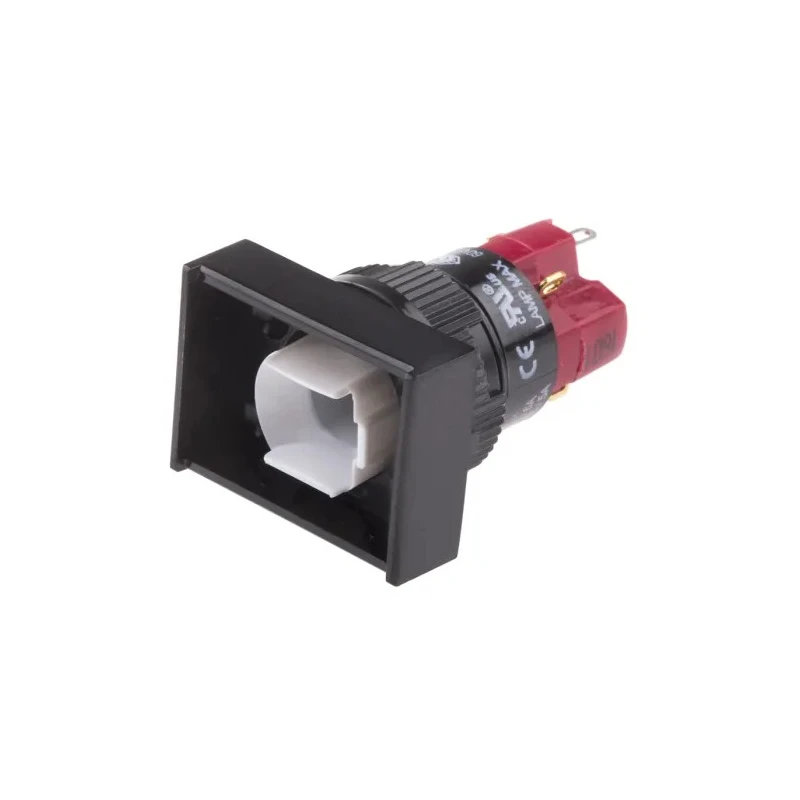

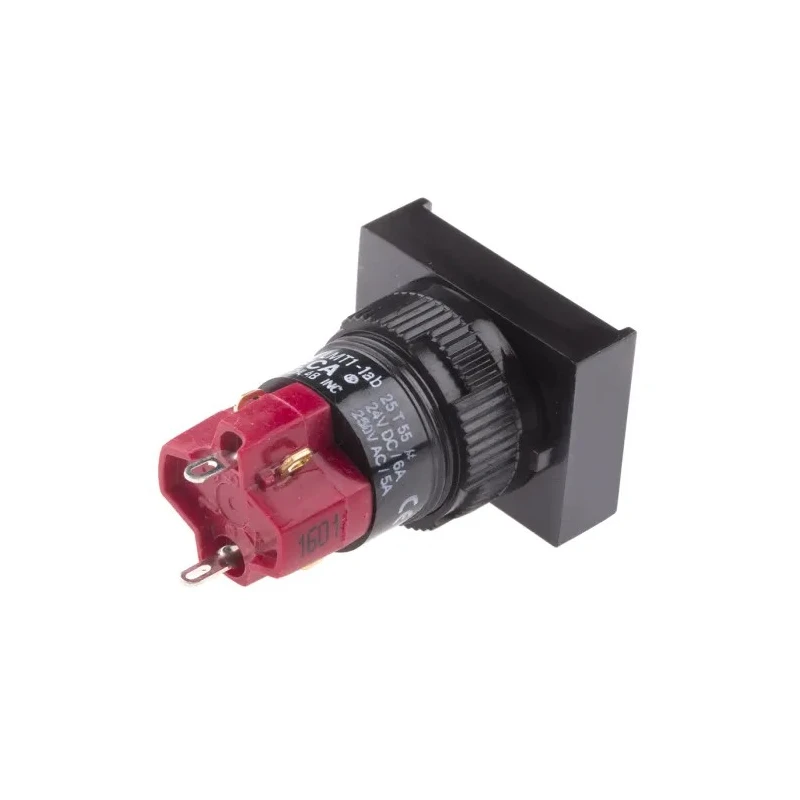

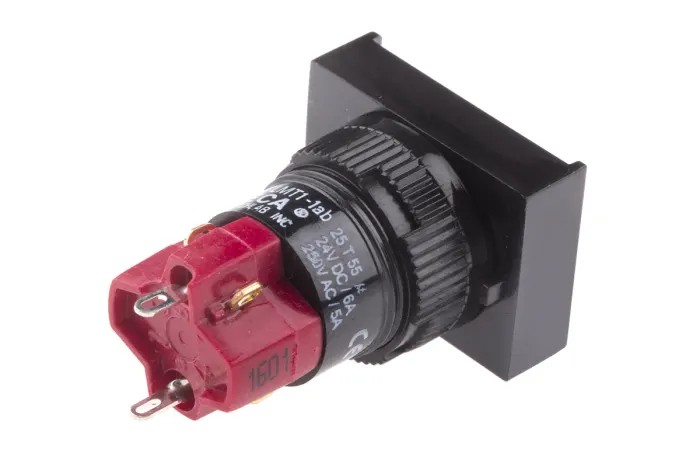

RS PRO Illuminated Momentary Push Button Switch SPDT Panel Mount 16 mm Cutout IP40 250V 5A 745-2562

The RS PRO 745-2562 is an illuminated push button switch engineered for momentary operation with a Single Pole Double Throw (SPDT) contact configuration. It is designed for panel mounting applications requiring a 16 mm diameter cutout, providing a secure IP40 ingress protection rating. This switch is suitable for a wide range of industrial and commercial electrical control systems.

Constructed with a raised button actuator style, the switch ensures precise tactile feedback for operator control. The switch supports a contact voltage of 250 V AC or DC and is rated for a switch contact current of up to 5 amperes, making it ideal for low to medium power switching tasks.

The solder terminal type allows for durable and effective wiring connections within control panels. The switch's compact dimensions of 18 mm length by 7.2 mm width and 35.8 mm height enable installation in confined spaces without compromising performance. It is compatible with panel thicknesses ranging from 0.5 mm to 5 mm.

Compliant with VDE and cUL standards, the RS PRO 745-2562 assures quality and safety in demanding electrical environments. To complete the illuminated push button assembly, users should combine it with compatible lenses available in square or rectangular shapes and various colors, plastic material made from polycarbonate for engraving, and appropriate filament lamps or LEDs for illumination.

Features a raised button actuator style for clear tactile feedback. Provides IP40 protection rating suitable for indoor use environments. Rated for 250V AC/DC contact voltage with 5A switch contact current capacity. Equipped with solder tag terminals for reliable electrical connections.

Compact dimensions with 18 mm length, 7.2 mm width, and 35.8 mm height for space-efficient installation. Conforms to international standards including VDE and cUL certifications. Designed for use with 16 mm diameter panel cutouts in panels up to 5 mm thick.

Illumination functionality supports filament lamps or LEDs with matching lenses in various colors.

This push button switch finds applications across automation, electrical, industrial control panels, and manufacturing industries where accurate momentary switching and visual indication are critical. It serves well in HVAC control systems, machine control stations, and other commercial electrical installations requiring durable and reliable push button operation.
