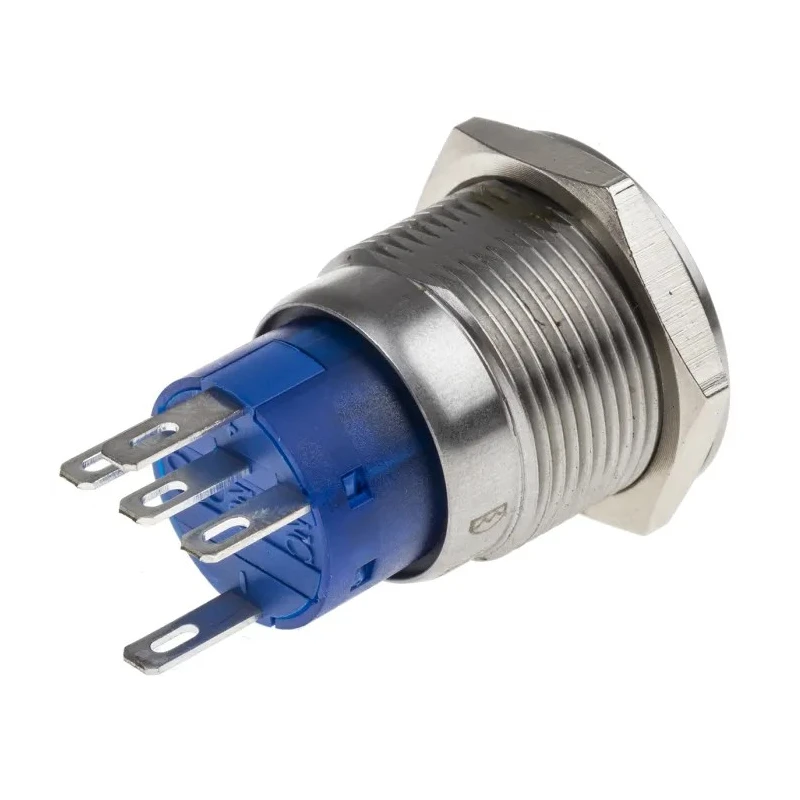

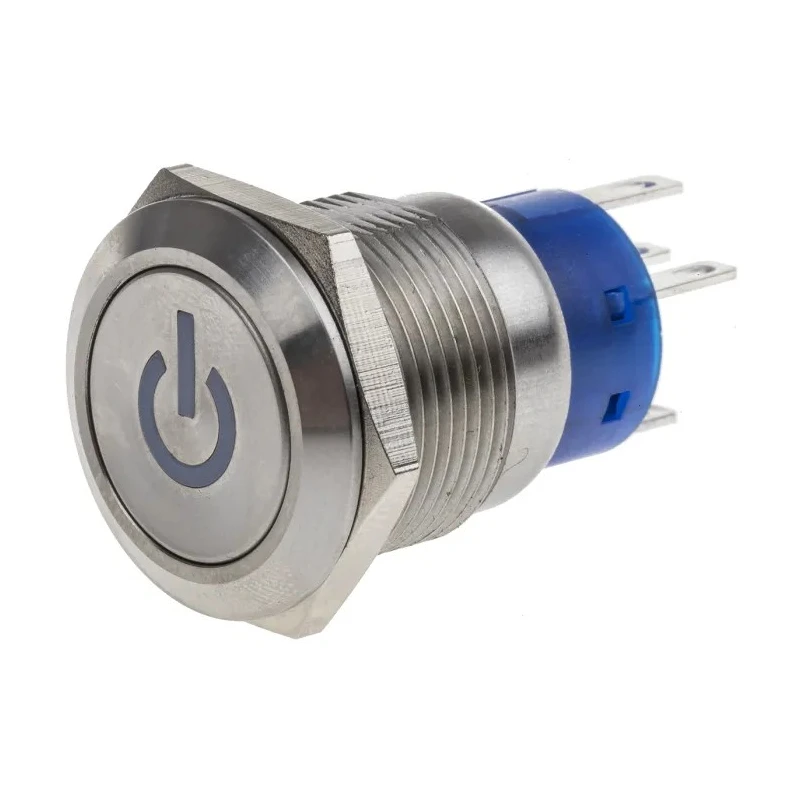

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, SPST, White LED, IP67, 250 V AC, 5A 111-3901

Name: RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19 mm Cutout, SPST, White LED, IP67, 250 V AC, 5A 111-3901
Brand: RS PRO
SKU: 138996
Price: 2882.7 INR
Availability: InStock



Category Push Button Switches & Components Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	111-3901
IP Rating	IP67
Mount Type	Panel
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-20°C
Panel Cutout Size	19 mm
Terminal type	Solder Pin
Standards/Approvals	cULus Recognized E 187490, ENEC 18, IK10
LED Colour	White
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	250V
Actuator Style	Round
Switch Contact Current	5A
Contact AC Voltage	250V ac
Legend	Power Symbol

Key Features

The switch operates on a latching mechanism for reliable on/off control.
Designed for panel mounting with a precise 19 mm diameter cutout size.
Features a round silver actuator with a power symbol legend for easy identification.
Illuminated by a white LED with a 24 V illumination voltage.
Rated IP67 for protection against dust and water immersion up to 1 meter for 30 minutes.
Suitable for industrial applications such as machinery, communication devices, and scientific laboratories.
Contact configuration is Single Pole Single Throw (SPST) with 5 A current rating and 250 V AC voltage.
Terminals use solder pin type for secure connections.

Product Description

RS PRO 111-3901 illuminated push button switch is a latching SPST type designed for panel mounting with a 19 mm diameter cutout and a white LED indicator. It operates at 250 V AC with a maximum contact current of 5 A, suitable for controlling electrical circuits in industrial, laboratory, and manufacturing environments.

The round silver actuator features a clear power symbol for intuitive operation. This switch is IP67 rated, making it highly resistant to dust ingress and capable of withstanding immersion in water up to 1 meter deep for 30 minutes, ensuring reliable performance even in demanding conditions such as food production lines and workshops.

The contact is made of copper material for enhanced conductivity and durability, reducing contact resistance and power loss. Terminal connections are provided via solder pins, facilitating secure and permanent electrical connections.

This product supports environments with operating temperatures ranging from -20°C to 55°C and meets rigorous industry standards, including cULus Recognized E 187490, ENEC 18, and IK10 rating for impact resistance. It is highly suitable for incorporation into machinery controls, communication technologies, medical apparatus, and other specialized industrial equipment.

The latching mechanism provides stable and reliable switching action. White LED illumination at 24 V ensures visual status indication. Robust IP67 protection rating guarantees resistance to dust and water exposure. Compact 19 mm panel cutout size enables versatile integration into switch panels.

Compliance with international certifications confirms product quality and safety.

Its silver actuator and power symbol make it user-friendly for quick identification and operation. Ideal for electrical engineers and maintenance professionals requiring dependable and durable push button switches for demanding industrial applications.
