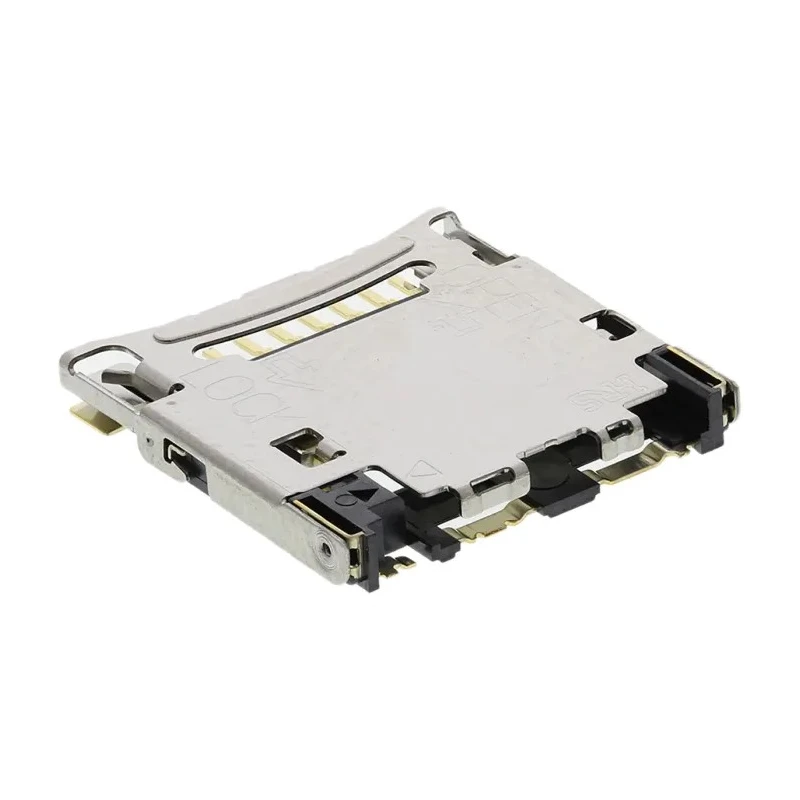

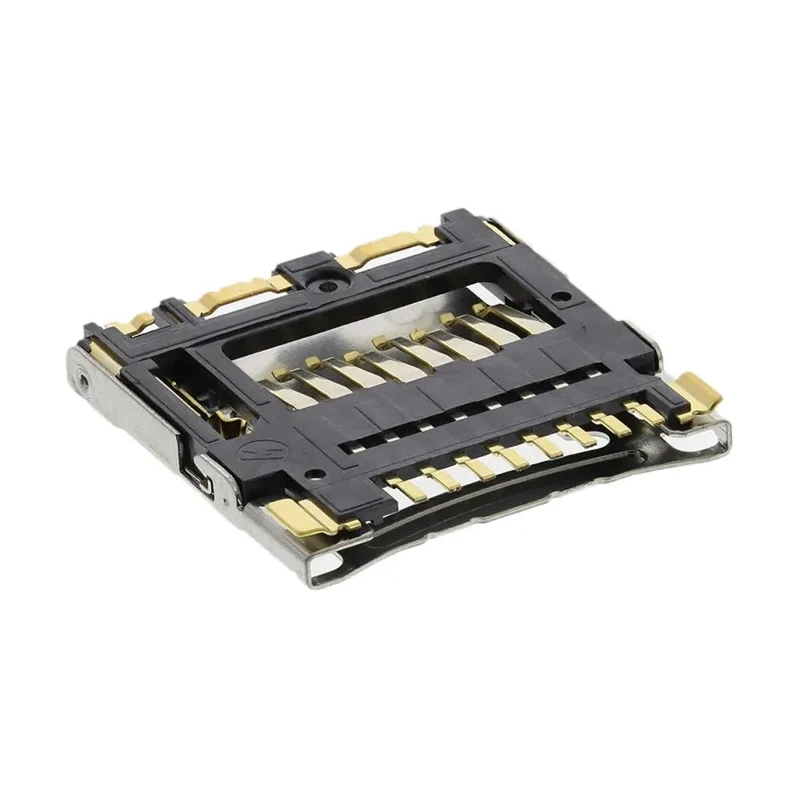

Hirose DM3 8 Way Right Angle Hinged MicroSD Memory Card Connector, Solder DM3C-SF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Right Angle |
| Model | DM3C-SF |
| Gender | Female |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | DM3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-8805P Brand: [Hirose](https://in.rsdelivers.com/brands/hirose)Manufacturers Part No.: DM3C-SF |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Hinged |
Key Features
- This connector features a hinged insertion and removal method for ease of use.
- It has 8 contacts arranged in a single row with a pitch of 1.1 mm.
- The contacts are made from copper alloy with gold plating for enhanced conductivity and durability.
- It operates reliably between -25°C to 85°C temperature range.
- The housing is made of Liquid Crystal Polymer with UL94V-0 rating for flame resistance.
- Normally Open card detection switch included for card presence detection.
- Reverse card insertion protection prevents damage from incorrect card insertion.
- Four metal cover points secure the ground circuit and provide EMI shielding.
Product Description
Hirose DM3C-SF is an 8 way right angle surface mount MicroSD memory card connector featuring a hinged female card insertion/removal design. This connector belongs to Hirose's DM3 series, known for their compact size, strong rigid construction, and precise electrical performance.
The connector's contact material is copper alloy with gold plating to ensure high conductivity and corrosion resistance. It has a pitch of 1.1 mm and a single row configuration with 8 contacts, making it suitable for compact and high-density microSD card applications.
The housing is constructed from flame-retardant Liquid Crystal Polymer (LCP), rated UL94V-0, providing mechanical strength and electrical insulation. Operating temperature ranges from -25°C to 85°C, allowing use in varied industrial and commercial environments.
This model includes reverse card insertion protection to prevent accidental damage, and a Normally Open card detection switch for reliable card presence detection. The metal cover is connected at four points to the PCB ground circuit securing EMI protection.
DM3C-SF is ideal for industrial, commercial, manufacturing, and electronics assembly applications where reliable MicroSD memory card connectivity with surface mount capability is required.
This product is manufactured in Japan under the Hirose DM3 series, known for quality and performance in microSD card connector solutions. This connector features a hinged insertion and removal method for ease of use. It has 8 contacts arranged in a single row with a pitch of 1.1 mm.
The contacts are made from copper alloy with gold plating for enhanced conductivity and durability. It operates reliably between -25°C to 85°C temperature range. The housing is made of Liquid Crystal Polymer with UL94V-0 rating for flame resistance.
Normally Open card detection switch included for card presence detection. Reverse card insertion protection prevents damage from incorrect card insertion. Four metal cover points secure the ground circuit and provide EMI shielding.
Manufactured in Japan ensuring quality and reliability. Explore the Hirose product range and advanced memory card connectors at EnvMart for reliable industrial connectivity solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -25°C to 85°C.
The connector features 8 contacts arranged in a single row with a pitch of 1.1 mm.
The housing is constructed from Liquid Crystal Polymer (LCP), which is rated UL94V-0 for flame resistance.
This connector is designed specifically for MicroSD cards.
The termination type for this model is solder.
The contacts are made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.
This connector has a right angle orientation.
It includes a Normally Open card detection switch for reliable card presence detection.
The connector features four metal cover points that secure the ground circuit and provide EMI shielding.
This product is manufactured in Japan.
It is ideal for industrial, commercial, manufacturing, and electronics assembly applications requiring reliable MicroSD memory card connectivity.
