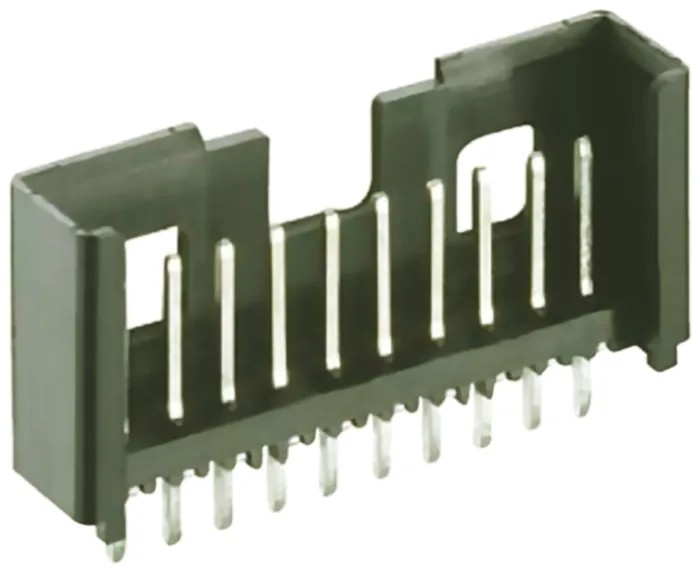

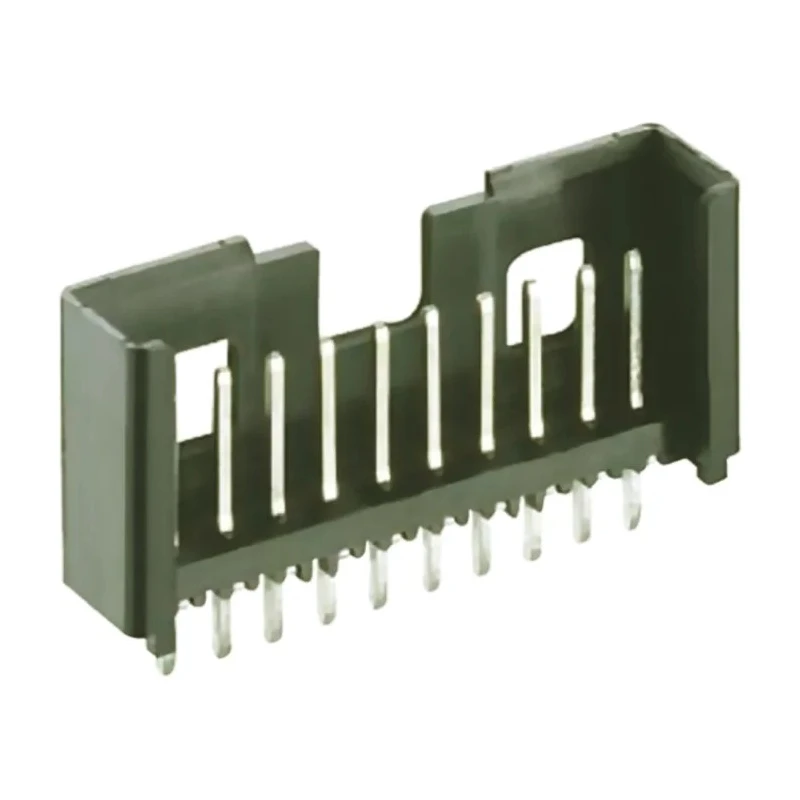

Lumberg Minimodul Series Straight Through Hole PCB Header 16 Contacts 2.5 mm Pitch 1 Row Shrouded 2,5 MSF/O 16
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 2,5 MSF/O 16 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyamide |
| Contact Material | Brass |
| Series | Minimodul |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 737-8619Brand: LumbergManufacturers Part No.: 2,5 MSF/O 16 |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for cable-to-board connections using the Minimodul Series standard pitch of 2.5 mm.
- Features 16 brass contacts with tin plating for improved conductivity and corrosion resistance.
- Shrouded connector housing made from glass filled polyamide for durability and insulation.
- Through hole mount type with male contact gender for reliable solder termination.
- Supports current ratings up to 5 amperes and voltage of 160 volts.
- Operates in a temperature range from -40°C to 120°C, suitable for various industrial environments.
- Conforms to standards DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11.
- Ideal for low and middle-volume production electronic applications requiring stable, easy harnessing.
Product Description
Lumberg 2,5 MSF/O 16 Minimodul Series straight through hole PCB header is a precision-engineered electronic connector designed for wire-to-board applications. This product features a pitch of 2.5 mm and 16 contacts arranged in a single row with a shrouded housing to prevent misalignment and enhance connection security.
Constructed from durable glass filled polyamide housing and brass contacts plated with tin, this PCB header ensures reliable electrical performance with current capacity rated up to 5 A and maximum operating voltage of 160 V. The male contact gender and through hole solder termination method allow for secure integration onto printed circuit boards.
Operating reliably under temperatures ranging from -40°C to 120°C, it meets stringent international standards including DIN EN 60664/IEC 60664 and IEC 60335-1, making it suitable for industrial, manufacturing, electronics assembly, and power connector applications.
The Minimodul Series connectors simplify harnessing of single leads and flat cables using established crimp technology. Its design facilitates ease of use in low and medium volume production environments where signal and low load current reliability are essential.
Installation is straightforward with a straight orientation and shrouded design to reduce mechanical damage and electrical interference. This product is ideal for applications in electronics manufacturing, power systems, and industrial equipment wiring.
Designed for cable-to-board connections using 2.5 mm pitch standard. Durable glass filled polyamide housing with shrouded protection. Brass contacts plated with tin ensure conductivity and corrosion resistance. Through hole mount type with solder termination for solid PCB integration.
Supports up to 5 amperes current and 160 volts operation. Wide operational temperature range from -40°C to 120°C. Complies with DIN EN 60664/IEC 60664 and IEC 60335-1 standards. Suitable for industrial, manufacturing, and electronics applications.
Explore the extensive range of PCB Headers and connectors at EnvMart for quality and reliability in your electronic projects and production lines.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 5 amperes.
It has a maximum operating voltage of 160 volts.
The contacts are arranged with a pitch of 2.5 mm.
The housing is made from glass filled polyamide, and the contacts are brass plated with tin for improved conductivity and corrosion resistance.
It operates reliably within a temperature range from -40°C to 120°C.
This unit features 16 contacts arranged in a single row.
It utilizes a solder termination method for secure integration onto printed circuit boards.
This model is shrouded, which helps prevent misalignment and enhances connection security.
It conforms to DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11 standards.
The contact gender for this PCB header is male.
It supports a through hole mount type for reliable solder termination.
It is suitable for industrial, manufacturing, electronics assembly, and power connector applications.
