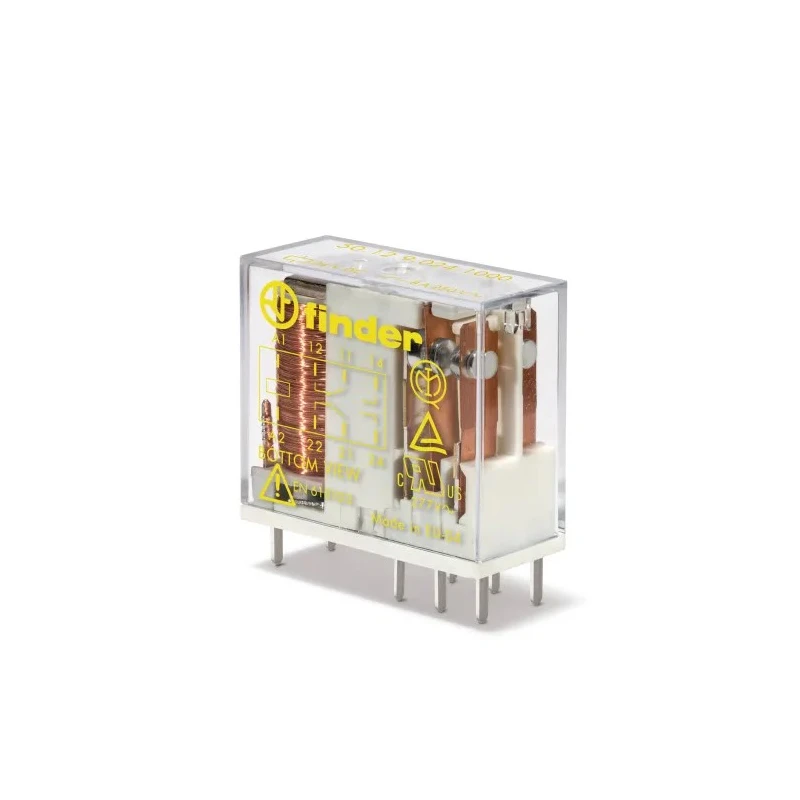

Finder PCB Force Guided Relay 125V DC Coil Voltage 2-Pole DPDT 50 Series 50.12.9.125.5000

Finder 50.12.9.125.5000 PCB Force Guided Relay is engineered for safety-critical industrial and automation use requiring stringent contact guidance. It operates at a coil voltage of 125V DC with dual pole double throw (DPDT) contacts ensuring reliable switching and fail-safe operations.

This relay is part of Finder's 50 series, featuring forcibly guided contacts according to EN 50205 type B, providing physical and electrical separation to prevent unsafe states.

The relay offers a coil power of 700mW, coil resistance of 22.3Ω, and gold silver alloy contacts that guarantee durability and low contact resistance. Its compact size with 29mm length, 25mm height, and 12.4mm depth suits printed circuit board mounting via solder terminals.

Rated for operation between -40°C and 70°C, it adapts to harsh industrial environments. Its isolation of 6kV between coil and contacts further enhances device safety and protects sensitive systems.

Additional features include flux proof RT II classification and compliance with IMQ, TUV, and UL recognized component standards for both Canada and the US markets. This makes the relay ideal for applications in industrial automation, machinery safety circuits, and control panel designs requiring certified safety relays.

This relay features forcibly guided contacts conforming to EN 50205 type B for enhanced safety. It is designed with a high physical separation of 8mm between adjacent contacts. The relay coil power consumption is 700mW with a coil resistance of 22.3Ω.

Gold silver alloy contact material ensures reliable electrical connections and longevity. The operating temperature range is from -40°C up to 70°C for versatile industrial applications. Solder-type terminals provide ease of PCB mounting and secure connections.

Dimensions of the relay are 29mm length, 25mm height, and 12.4mm depth. It provides 6kV isolation between coil and contacts ensuring electrical safety. Flux proof rating RT II enhances resistance to environmental factors.

Compliant with multiple approvals including IMQ, TUV, and UL recognized for US and Canada.

This Finder PCB Force Guided Relay is vital for industrial, automation, electrical control panels, safety equipment manufacturing, and commercial electrical safety applications. Its precise specifications ensure dependable performance and conformity to international safety standards.
