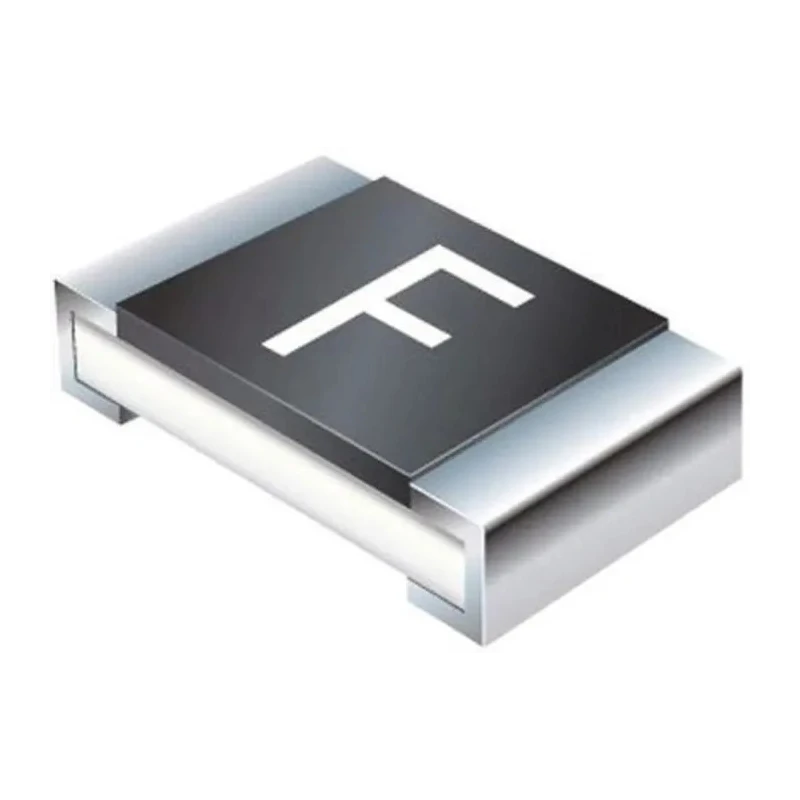

Bourns Non-Resettable Fuse 500mA 50V dc Time Delay Ceramic Body SF-0603S050-2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 50V dc |
| Brand | Bourns |
| Body Material | Ceramic |
| Height | 0.45mm |
| Model | SF-0603S050-2 |
| Depth | 1.6mm |
| Width | 0.8mm |
| Current Rating | 500mA |
| Series | SF-0603S |
| Maximum Operating Temperature | -40°C |
| Resistance | 175mΩ |
| Package Type | Reel |
| Minimum Operating Temperature | 105°C |
| Package Size | 0603 |
| Breaking Capacity | 50A |
| Standards/Approvals | UL 248-14, RoHS |
| Fuse Characteristics | Time Delay |
Key Features
- Features a ceramic body with a compact 0603 package size.
- Designed with time delay fuse characteristics for superior circuit protection.
- Has a breaking capacity of 50A ensuring rapid response to fault conditions.
- Operates within an ambient temperature range of -40°C to 105°C.
- Surface mount technology allows for efficient PCB assembly and space saving.
- Thin film chip fuse ideal for protecting high-value ICs in electronics.
- RoHS compliant and UL 248-14 approved for safety and environmental standards.
Product Description
Bourns SF-0603S050-2 non-resettable fuse is a fast-acting surface mount fuse designed for overcurrent protection in low voltage electronic circuits. It features a ceramic body in a miniature 0603 package measuring 0.8mm width, 0.45mm height, and 1.6mm depth, making it suitable for compact applications.
With a current rating of 500mA and voltage rating of 50V DC, this time delay fuse provides reliable circuit protection by effectively breaking the circuit at fault conditions up to 50 amps. Its thin film chip design and surface mount technology help save board space, making it ideal for use in alarm systems, A/V equipment, computer boards, portable telephones, power supplies, and medical apparatus.
Operating temperature ranges from -40°C to a maximum of 105°C, ensuring stability under various environmental conditions. This fuse meets UL 248-14 and RoHS standards, confirming its quality and compliance with safety regulations.
The SF-0603S series fuse is packaged on reel for ease of automated assembly in manufacturing processes. Ceramic body provides durability and high insulation. Time delay characteristic prevents nuisance blowing in transient conditions.
Surface mount package minimizes PCB space usage. Breaking capacity of 50A ensures protection against high current faults. RoHS and UL approvals ensure compliance with industry standards.
This fuse is commonly used in industrial electronics, consumer electronics manufacturing, instrumentation, and communication devices where reliable circuit protection is essential.
Explore more products in the Non-Resettable Fuse category on EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 500mA.
It has a maximum voltage rating of 50V DC.
This fuse measures 0.8mm in width, 0.45mm in height, and 1.6mm in depth.
The breaking capacity is 50A, which ensures rapid response to fault conditions.
It operates within an ambient temperature range of -40°C to 105°C.
The fuse features a ceramic body, providing durability and high insulation.
Yes, it is UL 248-14 approved and RoHS compliant, confirming its quality and safety standards.
It is packaged on a reel, facilitating automated assembly in manufacturing processes.
This model is designed with time delay characteristics, which helps prevent nuisance blowing in transient conditions.
It is commonly used in industrial electronics, consumer electronics, instrumentation, and communication devices.
The resistance is 175mΩ, which contributes to its performance in circuit protection.
This fuse belongs to the SF-0603S series.
