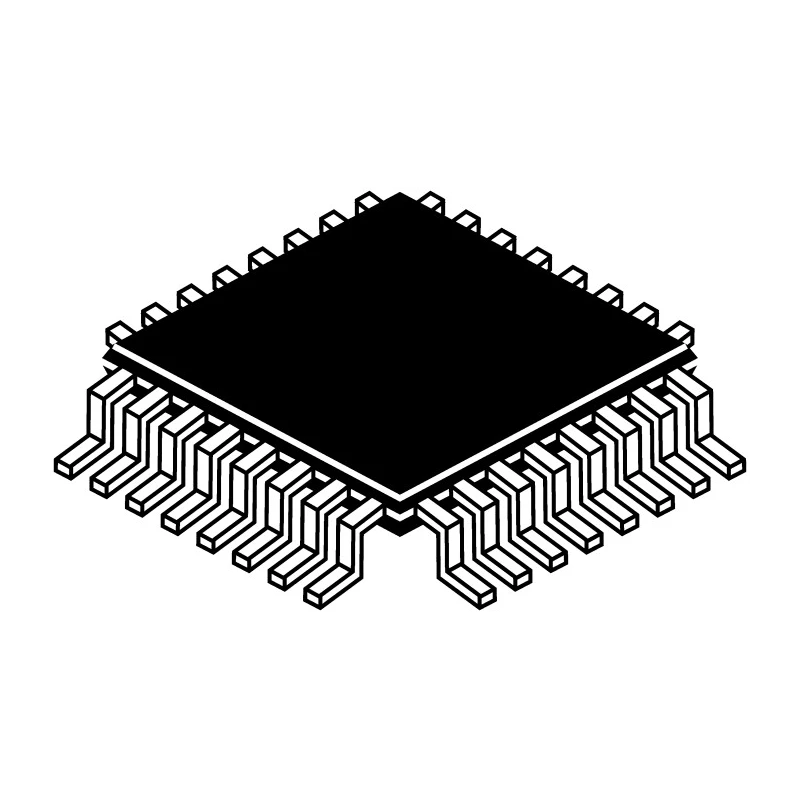

STMicroelectronics STM8S103K3T6C 8 bit STM8 STM8S Microcontroller 16 MHz 8kB FLASH 32-Pin LQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM8S103K3T6C |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-9915Brand: STMicroelectronicsManufacturers Part No.: STM8S103K3T6C |
| Pin Count | 32 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 526mW |
| Minimum Supply Voltage | 2.95V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 28 |
| Number of Timers | 5 |
| Instruction Set Architecture | CISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Advanced 8-bit STM8 core with 3-stage pipeline design.
- Maximum clock frequency of 16 MHz ensuring efficient performance.
- 8kB program memory size with FLASH program memory type.
- 1kB RAM size and 28 programmable I/Os for versatile control.
- Operating voltage range from 2.95V to 5.5V supporting various applications.
- Operating temperature range from -40°C to 85°C for robust environments.
- Compact 7.2 mm x 7.2 mm x 1.45 mm LQFP surface mount package.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
STMicroelectronics STM8S103K3T6C is an 8-bit STM8 STM8S Microcontroller designed for advanced embedded system applications operating at 16 MHz. It features an 8kB FLASH memory and is available in a 32-pin Low-profile Quad Flat Package (LQFP), which is surface mountable, making it suitable for compact and high-density circuit designs.
The STM8S series Microcontrollers are known for their high performance with a 3-stage pipeline and provide up to 20 MIPS at 24 MHz. This device supports program memory up to 8kB FLASH, 1kB of RAM, and 28 programmable input/output lines, facilitating diverse control tasks in automation and embedded systems.
Operating voltage ranges between 2.95V and 5.5V, accommodating a wide variety of power supply designs, and the microcontroller is rated for operation over a temperature range from -40°C to 85°C, ensuring reliable performance in industrial and rugged environments.
The STM8S103K3T6C also incorporates 4 analog-to-digital converters (10-bit resolution) and 5 timers, enabling precise measurement and control applications. Its instruction set architecture is CISC, which supports compatibility with existing software toolchains and legacy code.
This product complies with RoHS environmental standards, ensuring reduced hazardous substances usage. Its compact dimensions make it ideal for space-constrained industrial, laboratory, commercial, and embedded electronics applications.
Advanced 8-bit STM8 core with 3-stage pipeline design. Maximum clock frequency of 16 MHz ensuring efficient performance. 8kB program memory size with FLASH program memory type. 1kB RAM size and 28 programmable I/Os for versatile control.
Operating voltage range from 2.95V to 5.5V supporting various applications. Operating temperature range from -40°C to 85°C for robust environments. Compact 7.2 mm x 7.2 mm x 1.45 mm LQFP surface mount package. Compliant with RoHS standards ensuring environmental safety.
Includes 4 x 10 bit ADCs and 5 timers for precise control. Instruction set architecture is CISC for wide compatibility. Explore EnvMart's extensive microcontroller selection for reliable and high-performance embedded system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz, ensuring efficient performance for embedded applications.
It features an 8kB FLASH program memory size, allowing for substantial code storage in embedded systems.
The operating voltage range is from 2.95V to 5.5V, accommodating various power supply designs.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for industrial and rugged environments.
This model has 28 programmable input/output lines, providing versatile control options for various applications.
It is available in a compact 32-pin Low-profile Quad Flat Package (LQFP), suitable for surface mounting.
The STM8S103K3T6C includes 5 timers, enabling precise timing control in applications.
It incorporates 4 analog-to-digital converters (ADCs) with 10-bit resolution for accurate measurements.
The height of this microcontroller is 1.45 mm, contributing to its compact design.
It uses a CISC (Complex Instruction Set Computer) architecture, which supports compatibility with existing software toolchains.
Yes, it complies with RoHS standards, ensuring reduced hazardous substances usage in its construction.
The country of origin for this microcontroller is India.
