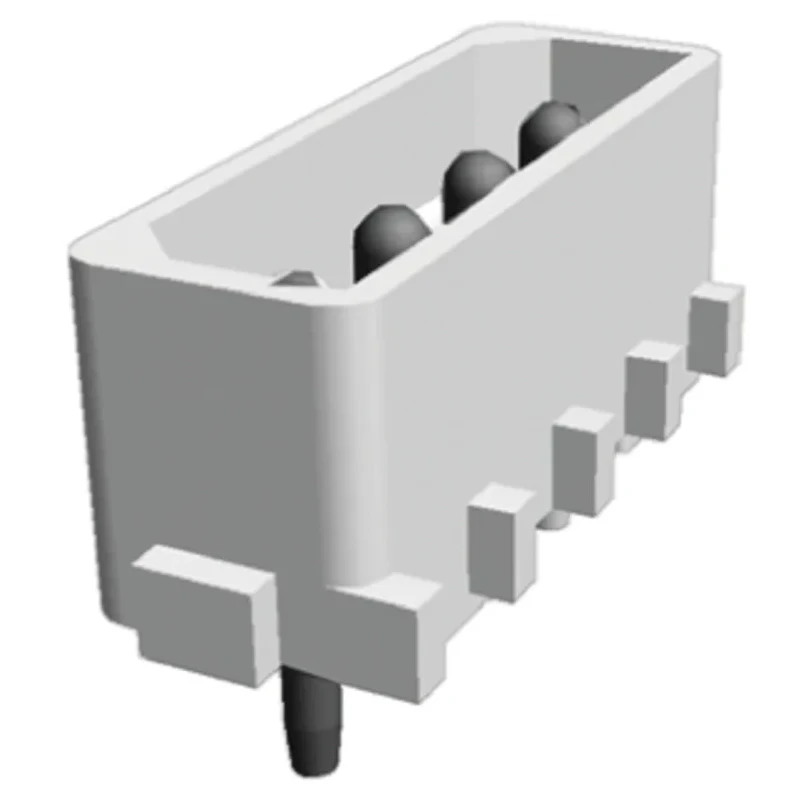

TE Connectivity Commercial MATE-N-LOK Series Straight Through Hole PCB Header, 4 Contact(s), 5.08 mm Pitch, 1 Row 1586515-2

TE Connectivity 1586515-2 Commercial MATE-N-LOK Series Straight Through Hole PCB Header is a precision molded connector designed for industrial and electronic applications requiring secure wire-to-board connections. Featuring a 5.08 mm pitch and four male contacts arranged in a single row, it suits a variety of PCB assembly uses.

The connector uses a durable nylon housing which is fully polarized to prevent incorrect mating. The phosphor bronze contact material is plated with gold to provide excellent electrical conductivity and corrosion resistance. Its through-hole mount type ensures stable mechanical and electrical connection via solder termination.

This PCB header accommodates wire-to-board operations with a current rating of 13 A and voltage rating of 250 V. Its operational temperature range from -40°C to 105°C allows application in diverse industrial and commercial conditions.

The design includes detent and positive locking latches that secure the mating connection against vibration and shock. Clean contact design reduces insertion force and protects the housing and contacts from damage during mating cycles. Additional features include built-in contact stabilization and self-aligning attributes facilitating assembly accuracy.

This component meets MIL-STD-202 method 208 standards for solderability, demonstrating its reliability in manufacturing and field environments. It is ideally suited for electronics manufacturing, power connectors, and industrial control systems requiring rugged and reliable PCB connections.

The PCB header features a single row with four male contacts to ensure reliable connection. Manufactured with a nylon housing and phosphor bronze contacts plated with gold for durability. Designed for through-hole mounting providing a secure solder termination method.

Operates safely at voltages up to 250 V and current rating of 13 A. Polarized housing with detent lock latches prevents mis-mating and ensures connection stability under vibration and shock. Built-in contact stabilization and self-aligning features for precise assembly.

Minimum operating temperature of -40°C and maximum of 105°C for diverse environments. Low insertion and extraction force design for easy handling and maintenance. Complies with MIL-STD-202 method 208 for solderability, assuring industrial quality.
