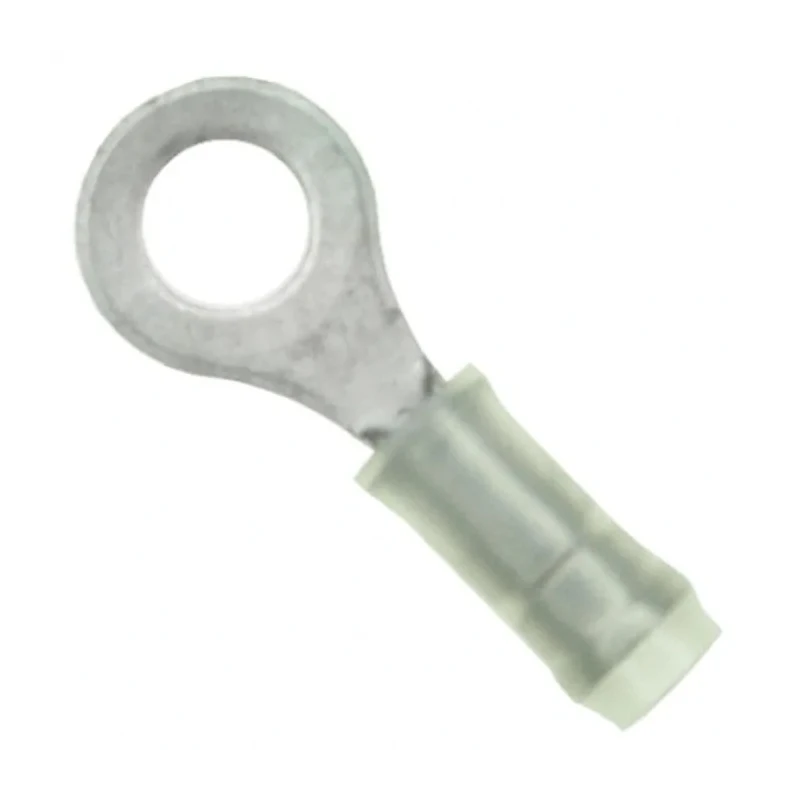

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 24 AWG 20 AWG Wire Size 323989
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.79mm |
| Model | 323989 |
| Insulation | Insulated |
| Overall Length | 20.85mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-7491Brand: TE ConnectivityManufacturers Part No.: 323989 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Outer Ring Diameter | 7.93mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper for superior electrical performance.
- Nylon insulation for enhanced durability and wire protection.
- Tin-plated contacts ensure corrosion resistance.
- Features a funnelled wire entry for easy insertion of wires.
- Colour coded natural sleeve for easy wire size identification.
- Suitable for use in instruments, lighting, power supplies, and aerospace applications.
- Meets RoHS standards for environmental compliance.
- Maximum operating temperature of 105°C ensures reliability in demanding conditions.
Product Description
TE Connectivity 323989 PIDG Insulated Ring Terminal features a precision-formed, high conductivity copper body and barrel designed for maximum contact and tensile strength. The M4 stud size ring terminal accommodates wire sizes from 24 AWG to 20 AWG, with wire barrel serrations that provide strong electrical and mechanical connections. A copper sleeve improves wire insulation support and prevents fraying, while the natural colour-coded nylon insulation sleeve allows easy wire size identification.
The funnelled wire entry design facilitates quick wire insertion, which is essential for high-speed production environments. These terminals meet RoHS compliance standards and operate reliably up to 105°C, making them suitable for demanding industrial, aerospace, motor, control, and power supply applications.
The construction and use of specialized tool dies ensure uniform crimping quality and durability, supporting diversified wiring requirements. Typical applications include instrumentation, panel boxes, transportation systems, lifting equipment, and various electrical appliances.
High conductivity copper body for excellent electrical performance. Copper sleeve around the wire barrel enhances insulation support. Serrated barrel ensures maximum contact and tensile strength. Colour coded nylon insulating sleeve for easy wire size and tooling identification.
Funnelled wire entry minimizes turned-back strands for secure crimps. Compliance with RoHS environmental standards guarantees reduced hazardous substances. Supports wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²). Maximum operating temperature of 105°C ensures durability under thermal stress.
Choose TE Connectivity PIDG insulated ring terminals for reliable electrical connections in industrial, laboratory, aerospace, automotive, and manufacturing environments. Explore more options within the Ring Terminals category on EnvMart for compatible accessories and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal accommodates wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
The maximum operating temperature of this terminal is 105°C, ensuring reliability in demanding conditions.
It features a high conductivity copper body and barrel, with a nylon insulation sleeve and tin-plated contacts for corrosion resistance.
The terminal is designed with a funnelled wire entry, which minimizes turned-back strands and allows for quick and easy wire insertion.
This product meets RoHS compliance standards, ensuring reduced hazardous substances in its construction.
The overall length of the terminal is 20.85 mm, with an outer ring diameter of 7.93 mm and an inner ring diameter of 4.34 mm.
The stud size for this insulated ring terminal is M4.
It is suitable for use in instrumentation, panel boxes, transportation systems, lifting equipment, and various electrical appliances.
The terminal features nylon insulation, which enhances durability and provides wire protection.
The contact material of this terminal is copper, which is known for its excellent electrical performance.
The serrated barrel design ensures maximum contact and tensile strength, providing strong electrical and mechanical connections.
The country of origin for this terminal is India.
