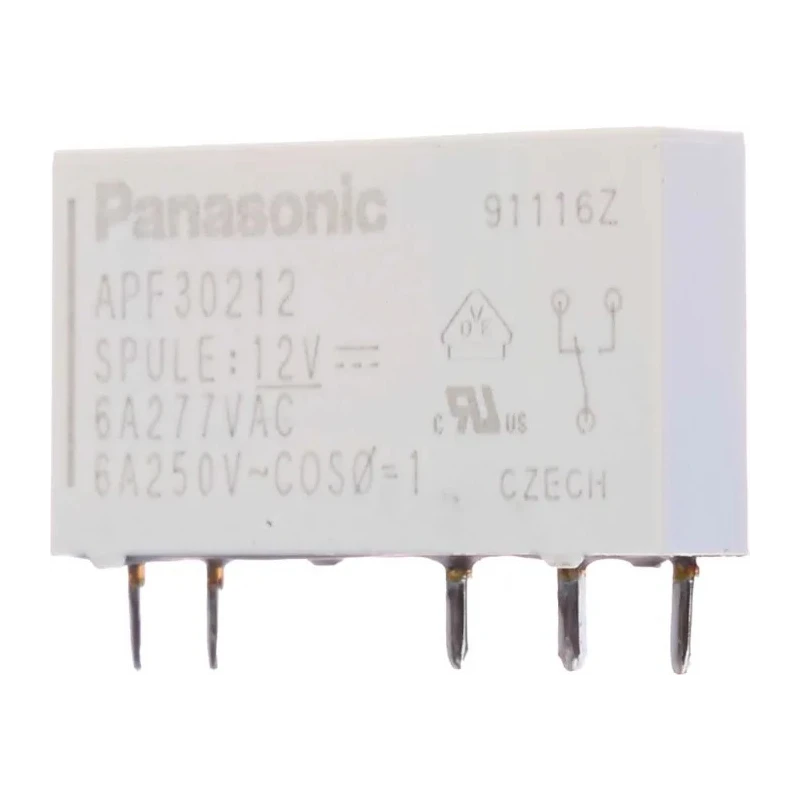

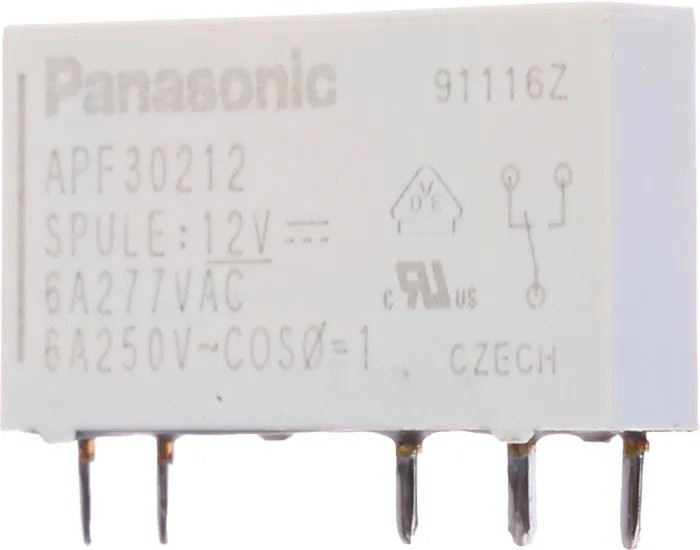

Panasonic PCB Power Relay 12V DC Coil 6A Switching Current SPDT APF30212

Panasonic APF30212 PCB Power Relay is a compact and reliable power relay designed for applications requiring a 12V DC coil and a switching current capacity of 6A. This SPDT (Single Pole Double Throw) relay is ideal for use in high-density printed circuit boards in industrial and automation environments.

Part of the APF series, this relay is engineered to deliver high breaking capacity and dependable switching performance. With a coil resistance of 847Ω and coil power consumption of just 170mW, it ensures efficient energy use in operation.

The device features silver alloy contacts with a contact resistance of 100 milliohms, guaranteeing excellent conductivity and durability. It supports a maximum switching AC voltage of 250V AC and a switching power rating of 1.5 kVA, making it suitable for various electrical equipment and control circuits.

The temperature range from -40°C to 85°C allows this relay to function reliably across a broad spectrum of environmental conditions. The solder-type terminals and PCB mount style enable straightforward integration into circuit board layouts.

Measuring 28mm in length, 15mm in height, and 5mm in width, the relay’s compact size aids in space-saving designs. Compliance with VDE, RoHS, and UL standards further attests to its quality and safety credentials.

These characteristics make the Panasonic APF30212 an excellent choice for industrial automation, electrical control systems, manufacturing equipment, and other electronic applications requiring dependable relay switching.

This relay features a compact APF series design suitable for densely populated circuit boards. It supports a switching voltage of up to 250V AC with a maximum switching power of 1.5 kVA. The coil resistance is measured at 847 ohms, consuming 170 mW power during operation.

Durable silver alloy contacts with a contact resistance of 100 milliohms ensure efficient signal conduction. Operating temperature ranges from -40°C to +85°C, ensuring performance in varied environments. The relay employs solder-type terminals and mounts conveniently onto printed circuit boards (PCB).

Compact dimensions of 28 mm length, 15 mm height, and 5 mm width optimize space utilization. Compliant with VDE, RoHS, and UL standards, ensuring quality and safety compliance. Explore more power relay solutions and electronics components on EnvMart for industrial and commercial automation needs.
