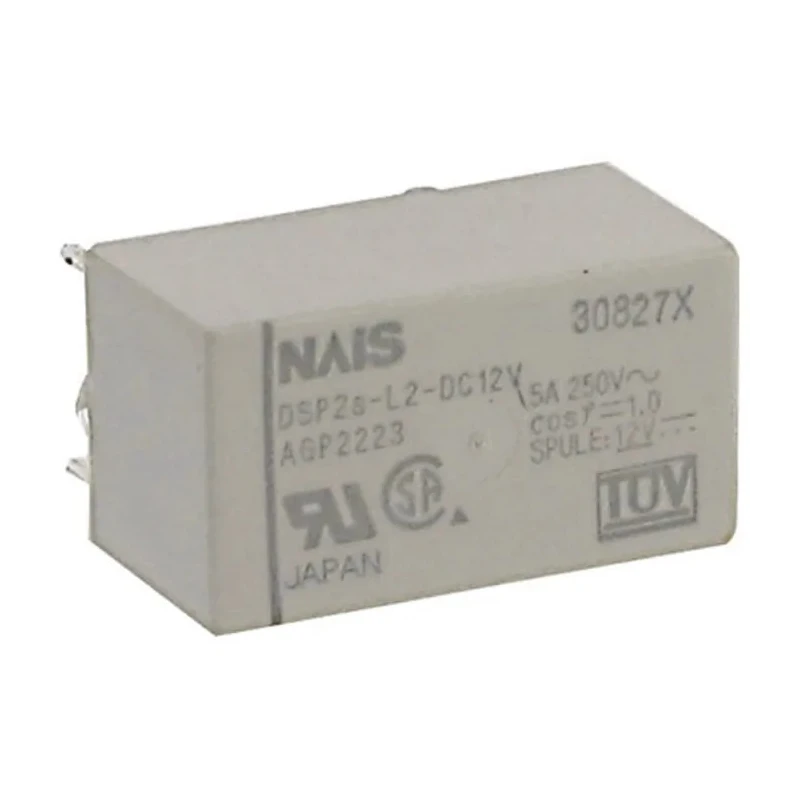

Panasonic PCB Power Relay 12V DC Coil 5A Switching Current DPST DSP2AL212D

Panasonic DSP2AL212D is a high-quality PCB power relay featuring a 12V DC coil and 5A switching current with a DPST contact configuration. This miniature relay is designed for high sensitivity, high breakdown voltage, and a compact DIL format making it ideal for office and industrial electronic devices, temperature controllers, PLCs, and measuring instruments.

The sealed construction of the relay allows for automatic washing, protecting it in harsh manufacturing or industrial environments. Silver alloy contacts ensure reliable switching with a low contact resistance of 30 milliohms, supporting switching voltages up to 125V AC and DC, and switching power of 1.25kVA. It operates efficiently with a coil power of 300mW and coil resistance of 480 ohms.

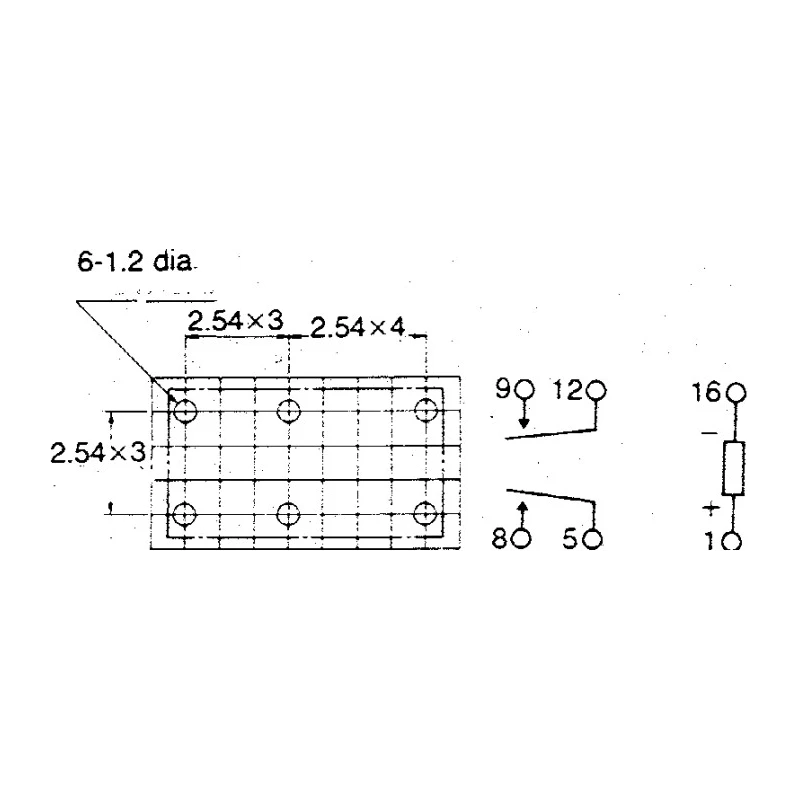

This compact relay measures 10 mm in height, 20.2 mm in length, and 11 mm in width, suitable for easy PCB mounting using PCB pin terminals. It operates reliably in temperatures ranging from -40° to 60°C, meeting UL, CSA, and VDE standards.

Typical applications include industrial automation, office electronics, HVAC controls, and other electronic control systems requiring dependable relay switching capabilities. High contact rating and high switching capability.

Miniature sealed construction for durability. DPST configuration for dual-pole applications. Compatible with automatic washing processes. Complies with UL, CSA, and TÜV safety standards. Explore other Panasonic power relay models and related electrical automation components available at EnvMart for diverse industrial needs.
