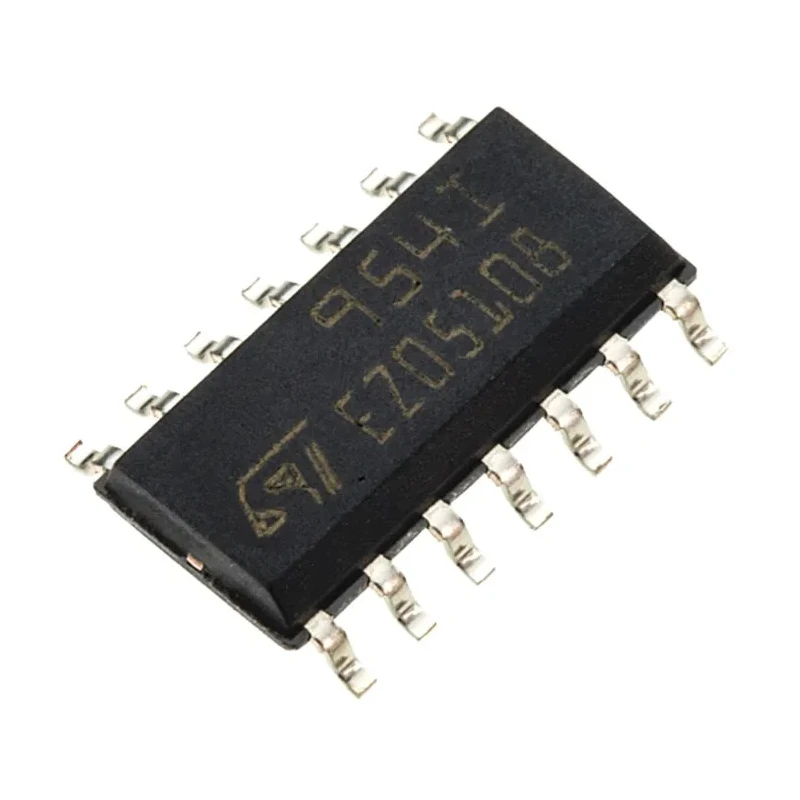

STMicroelectronics Operational Amplifier 3 MHz, 14-Pin SOIC, 12V TS954IDT

STMicroelectronics TS954IDT is a high-performance operational amplifier designed for surface mount applications in a 14-pin SOIC package. It features a 3 MHz gain bandwidth product and supports operation across a wide supply voltage range of 3 V to 12 V, making it highly versatile in various industrial and automotive electronics applications. The device includes four operational amplifier channels, providing efficient multi-channel signal amplification.

The TS954IDT offers an ultra-low distortion rate of 0.01% and real rail-to-rail input common mode voltage range along with rail-to-rail output voltage swing, enhancing signal accuracy and maximizing the output range. Its high slew rate of 1 V/μs ensures fast transient response suitable for high-speed signal processing tasks. Low input bias current (200 nA) and low input offset current (80 nA) contribute to high precision amplification.

With an operating temperature range from -40°C to 125°C and automotive AEC-Q100 certification, this operational amplifier is reliable for demanding environments including industrial, automotive, instrumentation, and control systems. Furthermore, the low supply current consumption of 0.9 mA at 3 V adds to energy efficiency requirements in portable and battery-operated devices.

The product comes in a compact SOIC surface mount package sized 8.75 mm x 4 mm x 1.65 mm, ensuring ease of PCB assembly and optimal footprint usage. RoHS compliant, the TS954IDT supports environmental safety standards.

Contains 4 channels operational amplifiers suitable for various electronic applications. Operates with a supply voltage range from 3V minimum to 12V maximum. Low input bias current of 200 nA ensures precision signal amplification.

Offers low distortion at 0.01% for high fidelity signal processing. Rail-to-rail input common mode voltage and output voltage swing for maximum output range. High-speed operation at 3 MHz with a slew rate of 1 V/μs. Features low current consumption of 0.9 mA at 3 V supply voltage.

Automotive qualified, compliant with AEC-Q100 standard. Operating temperature range from -40°C to 125°C for reliability under harsh conditions. Compact dimensions with 14-pin SOIC package measuring 8.75mm length, 4mm width, and 1.65mm height.

This Operational Amplifier is ideal for industrial, automotive, instrumentation, laboratory, and manufacturing applications requiring precise and reliable amplification. See EnvMart's full range of STMicroelectronics semiconductor amplifiers for complementary components and solutions.
