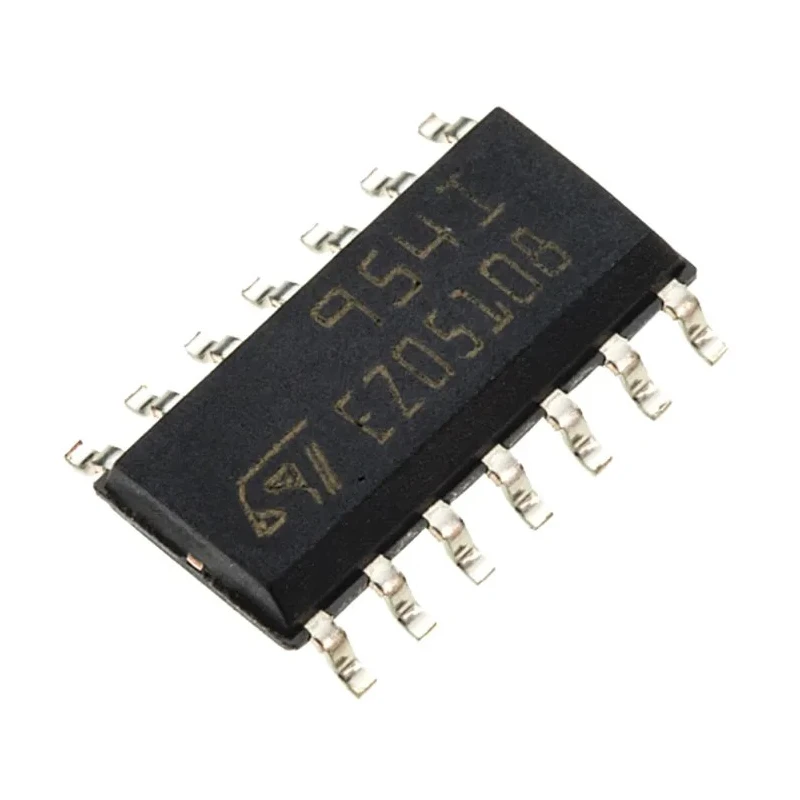

STMicroelectronics Operational Amplifier 3 MHz, 14-Pin SOIC, Surface Mount, 12V TS954IDT

STMicroelectronics TS954IDT Operational Amplifier is a high-performance, quad-channel BiCMOS IC designed for precision analog signal amplification. It operates with a gain bandwidth product of 3 MHz and supports supply voltages ranging from 3 V to 12 V, making it ideal for low voltage and battery-powered applications.

The device features true rail-to-rail input common mode voltage range and output voltage swing, which maximizes the dynamic signal range in low voltage systems. Low distortion of 0.01% ensures signal integrity in audio, sensor interfacing, and measurement applications.

With low quiescent current consumption of only 0.9 mA at 3 V, the TS954IDT is optimized for energy-efficient designs. It has a high slew rate of 1 V/μs enabling fast response to rapid input signal changes. The input offset voltage of 8 mV, input bias current of 200 nA, and input offset current of 80 nA facilitate accurate amplification in demanding analog circuits.

Designed for robust industrial and automotive environments, the amplifier is specified for operation across -40°C to 125°C and complies with the automotive AEC-Q100 quality standard. The product is RoHS compliant ensuring environmental safety.

The 14-pin SOIC surface mount package measures 8.75 mm in length, 4 mm in width, and 1.65 mm in height, suitable for compact PCB layouts. It delivers an output current capability of 10 mA per channel across its four channels, enabling driving of loads like sensors or low power actuators.

Surface mount package suitable for automated PCB assembly. Rail-to-rail inputs and outputs optimize usable signal swing. Low supply current minimizes power dissipation. Wide operating temperature supports automotive and industrial usage.

Ideal for signal conditioning, filtering, and sensor interfacing. Supported by STMicroelectronics design resources and technical documentation.

STMicroelectronics products are widely used across industrial, automotive, instrumentation, and consumer electronics sectors. The TS954IDT Operational Amplifier is suitable for design engineers seeking robust, low power, and precision analog performance in a compact surface mount package. For additional products, tools, and components, explore further offerings on EnvMart's electronics and semiconductor category pages.
